Place of Origin: | China |
Brand Name: | RONA |
Certification: | CE / ISO9001 |
Model Number: | RNCF H3088 |
Minimum Order Quantity: | 1 unit |
---|---|
Price: | negotiation |
Packaging Details: | carton and wooden packing |
Delivery Time: | 7-15 working days |
Payment Terms: | T/T, |
Supply Ability: | 2000 units Per Month |
Product Name: | Intelligent Office Access Control System Flap Barrier Gates With Fingerprint Reader Card Reader | Size: | L1400mm*W300mm*H900mm |
---|---|---|---|
Material Of Flap: | Acylic Or Soft PU | Passage Width: | 550mm |
Communications Port:: | RS485,distance=1200m | Direction: | Single And Bi-directional |
Pass Speed: | 40 Persons/min(Normal Open) | Tine To Opean And Close Gate: | 0.6 Seconds |
High Light: | electronic turnstiles,security barrier gate |

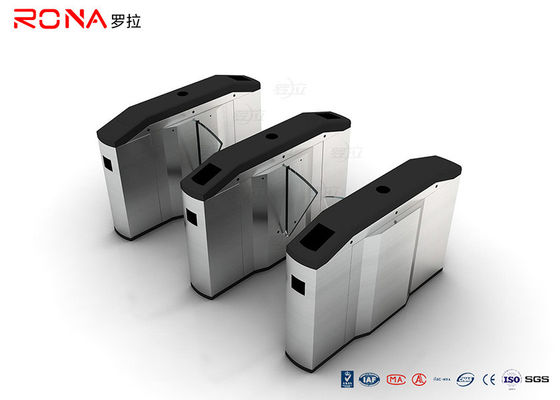

Intelligent Office Access Control System Flap Barrier Gates with Fingerprint Reader Card Reader
Tenical Parameters
Description | Parameters |
Item / Model | RNCF H3088 |
Running life | >5 millions |
Drive voltage | DC24V 20W |
Pass Speed | 40 persons/minute(Normal open) |
Open direction | Unidirectional and bidirectional (optional) |
Opening time | 0.6S/It is adjustable |
Size | L1400mm*W300mm*H900mm |
Thickness of Housing | 2.0mm |
Input port | relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal |
Working Environment | indoor/out(with tent over)-10°C~70°C |
Product Description
Flap barrier turnstile series with innovative design, it extensive use in metro, school, office, scenic, gym, factory, residential, supermarket etc.. It can support RFID, fingerprint, facial verification mode. Combine with infrared detector, temperature controller, can widely used in all kind of different environment.
Standard functions & features of Flap Turnstiles Gate
1) Rapid identification technique, available to identify accurately and efficiently the magnetic card, bar code card, ID card and IC card
2) Waterproof, sunscreen, anti-temperature, anti-cold
3) DC Brushless Motor, Maintenance Free
4) The programmable gates control state, with a variety of operating modes you can choose, you can set alone-way or two-way control
5) Self automatic locking to prevent forcedly passing without the card
6) Pinch, anti bumps function, Blockage when in the process of the swing arm reset within a predetermined time, click stop working automatically, the default reset again after a delay, and the intensity is very small(2kg)
7) Light and sound alarm indication function, preventing illegal entry or irregular passing
The flap turnstile system is provided with a standard electric interface and can easily integrates the common 3rd party equipment with read/write facilities.
1. | access control system |
2. | bar-code scanner |
3. | Token /ID/IC card reader |
4. | time & attendance system |
5. | coin collector |
6. | card collector |
7. | consumption system |
8. | ESD system and fare collection system |
9. | biometric systems (fingerprint & face recognition) |
Contact Person: Joey Tu
Tel: 0086-88853586 ext 8018
