| Brand Name: | RONA |
| Model Number: | RNCF H1088 |
| MOQ: | 1 unit |
| Price: | negotiation |
| Delivery Time: | 7-15 working days |
| Payment Terms: | T/T, |

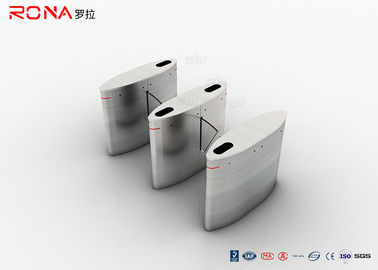

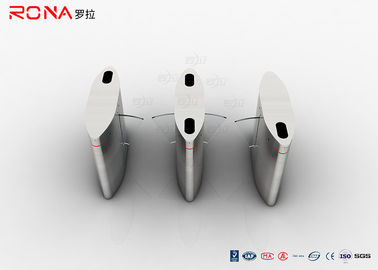

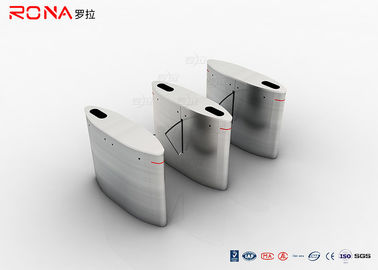

Automatic pedestrian access control system 304 stainless steel flap barrier gate with RFID card/fingerprint
Product Description
Intelligent flap barrier is a brand-new product of our company. It has features of precise craftsmanship, comprehensive functions and high reliability, which can be applied in high class communities, intelligent buildings, hotels, subway stations and other high level venues and then achieve a more intelligent management and control of pedestrian access. The most typical intelligent application is high speed railway station, subway station, BRT station, scenic ticket system and so on.
Tenical Parameters
| Description | Parameters |
| Item / Model | RNCF H1088 |
| Running life | 5 millions |
| Drive voltage | DC24V 20W |
| Pass Speed | 40 persons/minute |
| Open direction | Unidirectional and bidirectional (optional) |
| Opening time | 0.6S/It is adjustable |
| Material | 304 Stainless steel&stoning varnish |
| Swing arm material | PU soft barrier model&Acrylic |
| Input port | relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal |
Standard functions & features of Flap Turnstiles Gate
|
1) On-line or off –line mode(optional) |
|
2) DC Brushless Motor, Maintenance Free |
|
3) With direction indication, guiding passenger to entry and exit. |
|
4) Self automatic locking to prevent forcedly passing without the card |
|
5) Light and sound alarm indication function, preventing illegal entry or irregular passing |
|
6) Rapid identification technique, available to identify accurately and efficiently the magnetic card, bar code card, ID card and IC card. |
|
7) Automatic counting and displaying number of passenger, facilitating observation and with a displaying total amount as high as 90,000 |
Extend Functions
The flap turnstile system is provided with a standard electric interface and can easily integrates the common 3rd party equipment with read/write facilities.
| 1. | access control system |
| 2. | bar-code scanner |
| 3. | Token /ID/IC card reader |
| 4. | time & attendance system |
| 5. | coin collector |
| 6. | card collector |
| 7. | consumption system |
| 8. | ESD system and fare collection system |
| 9. | biometric systems (fingerprint & face recognition) |
Video
|
|
