|Place of Origin:||China|
|Certification:||CE / ISO9001|
|Model Number:||RNCF H8008-16|
|Minimum Order Quantity:||1 unit|
|Packaging Details:||carton and wooden packing|
|Delivery Time:||7-15 working days|
|Payment Terms:||T/T, , L/C|
|Supply Ability:||2000 units Per Month|
|Materials:||304 Stainless Steel(optional)||Dimension:||1600(L)*160(W)*1000(MM)|
|Power Voltage:||AC220V±10%, 50Hz±10%, 200w||Driving Motor:||Servo Motor|
|Passing Speed:||40 Persons/min(open),30 Persons/min(close)||Passage Width:||500~1050mm|
|Operation Temperature::||About -10℃ ~ +70℃||Reset Time After Break Down:||0.5 Seconds|
|Normal Running Life:||10 Million||Interface:||Standar RS485 Interface, Distance=1200m|
Servo Driving Motor Speed Gate Turnstile,
AC220V SS Speed Gate Turnstile,
1050mm Width Access Control Turnstile Gate
Safety Performance High Intelligent Speed Gate Card Access Control Speed gate Turnstile

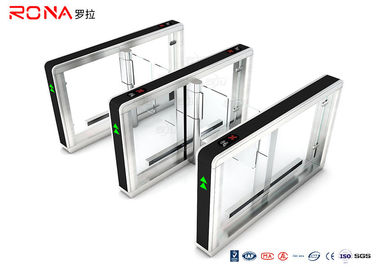

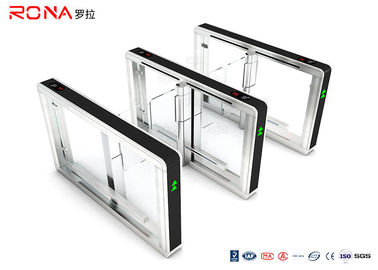

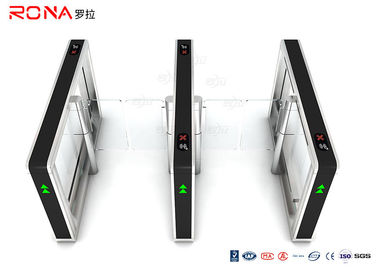

The speed gate turnstile combines slim line styling with one of the industries widest passages. It has clear, bi-directional swinging motorized barrier panels and a stylish, architectural design that enhances any access control installation. Its sleek design and smaller footprint makes it compatible with any upscale business or institutional environment.
Standard Features & Functions
|1.||Smooth operating motorized barriers, the entire system runs smoothly, with a small noise and free of mechanical impact.|
|2.||Extremely fast throughputs.|
|3.||The fastlane turnstile system can easily integrates with the 3rd party equipment, such as Biometric systems, consumption systems, ESD system and access control system, etc.|
|4.||Operation model: Both directions can be set as controlled mode or free mode, two or one direction can be controlled by switch-button or access controller.|
|5.||Automatic check fault and alarm prompt function: to convenient for users to maintain.|
|6.||The running status of device can be set up through pressing the built-in small keyboard of the main control board.|
|7.||The device is locked until a valid open signal is received.|
|8.||Emergency-escape function: When power off, it will be opened the gates automatically to meet the request of fire protection. Also the gates will open by pressing the emergency button which can be remote-controlled whether the power is on or not. (Optional).|
|9.||Remote control and management function: Through the management computer to realize remote control and management.|
|10||Streamline small footprint design that utilizes shared cabinets for multi-lane|
|11||LED indicator function: Traffic lights on both sides of the turnstile barrier are the indicator of access status, When the traffic lights show green, it means to pass and the red light means no-entry. The traffic lights on both sides can be set to indicate access for left or right or bi-direction.|
|12.||Anti-pinch function: Auto-alarm will activate for unauthorized pedestrian movement and tailgating. The barrier uses several photo sensors to prevent turnstile closure on a person while inside the lane.|
|13.||Reset automatically function: ① the gates can locked automatically when it be forcibly pushed 10 degrees. ② “Go” signal will be cancelled if passage through is not completed within pre-set time. The standard default is 10 seconds (time adjustable 1s ~ 60s, by changing parameter of main control board).|
Optional & Customized Function
|Alternative Materials, Finished and Custom Design|
|Usage LED Counter function|
|Audio and visual alarm in the event of an invalid entry or exit and tailgating|
|Remote Controlled Button|
|Extra add sensors transmitter and receiver type|
|Infrared sensors reset function|
|Access Control System Integration|
|Camera System Integration|
|Thermostat System Integration|
|Card Reader mounting: Card readers may be mounted on the surface of the barrier, or the card readers may be mounted flush mounted. There is an output to interlock the card.|
|Stroboscopic alarm light prompt function: to help for site administrator to find the failure units fast and exactly.|
Show room picture
1. What is your Quality Control?
We have a average 19-year experience QC team. They had a good teamwork to check raw materials and finished products to ensure the quality. The samples will be fully tested, and the bulk goods will be sampled for careful inspection, and the QC staff will also conduct inspections during the production process.
2. Do you provide customization?
We have 10-peoples customization team to cover our clients’ customized requirements. We also provide OEM and ODM service.
3. Could you tell us your after-sale service?
Timely support is a necessary. We provide free online support 24/7.
4. What would you do after the warranty?
We provide 12-month warranty, some of high products are with 24 months warranty. If out of warranty, we will provide free lifetime online services.
5. What are your optional list for your products?
Wireless control for pedestrian turnstiles, housing color changing, size changing, material SUS316 available, logo printing, add photocell quantity, etc.
7. How can we be your exclusive distributor?
To be our exclusive distributor, firstly you need to have your sales and technical team; Secondly, industry experience is required.
