Access Control Swing Gate Turnstile Controlled Acrylic / Tempered Glass Arm Material

Access Control Swing Gate Turnstile Controlled Acrylic / Tempered Glass Arm Material

pedestrian security gates

pedestrian swing gate

Place of Origin:


Brand Name:



CE / ISO9001

Model Number:


Contact Us
Request A Quote
Product Details
Access Optical Swing Gate Turnstile Controlled Access Swing Barrier
Swing Arm Material:
Acrylic / Tempered Glass
Swing Gate Turnstiles
Transit Rate:
40 People/min
Sliver / Customized
Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
Export Wooden Packing
Delivery Time
7-15 work days
Payment Terms
T/T, L/C,
Supply Ability
2000 units Per Month
Product Description Optical Swing Gate Turnstile Controlled Access Swing Barrier


Technical Parameters


Description Parameters
Item Model RNCF F6008A
Service life  ≧5 million cycles
Drive voltage DC24V 20W
Pass rate 40 persons/minute
Open direction Unidirectional and bidirectional (optional)
Opening time 2~3S(adjustable)
Humidity ≤90% coagulation free
Thickness of Housing 2.0mm(optional)
Length of the arm 230-900mm
Passage width 500-1800mm
Swing arm work angle 180°
Communication RS485





Product Description


1. Provided the function of automatical card collection, working efficiency can be improved.
2. Available forms: Readable magnetic card, barcode, IC card.
3. Quick barrier free passage control system, an ideal facility to achieve intelligent personnel access control, effectively solve the problem of the difficult access for persons with baggage and persons with disabilities, and the low traffic speed problem.
4. Provided the function of self-diagnosis and alarm prompt, convenient for users to maintain and to use .
5.  With automatic reset function: after reading the card effectively, if the user does not pass in the specified time period, the system will automatically cancel the user's access rights.
6. High compatibility. Compatible for the facilities and subassemblies of other brands.
7. The control board equipped with functions of counting and memory.
8. One-directional and bi-directional function: One-directional barrier only allow to pass in one direction. If a person enter from the other side, the alarm will prompt. The indicator light will change its color according to the card reading situations. The bi-directional barrier allow to pass from both sides. The former card reader is available. The people on other side can not read the card at the same time.



Standard functions & features of Swing Turnstiles Gate


1. Infrared sensor to prevent pinch pedestrians.
2. Alarm function, in case of illegal intrusion and reverse intrusion.
3. Anti-breakthrough function. The gate is locked automatically until opening signal received.
4. Anti-trailing function, the turnstile will lock if someone wants to burst in without swiping the RFID card.
5. The whole system runs smoothly, long-life performance, high operation dependability and fast response.
6. When power off, optical turnstile will open automatically, which is complying with fire safety requirements.
7. Automatic reset function. If the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.

Adaptive Place

1. Office: Business Building, Government Office, Etc.;
Business Services: Supermarkets, Shopping Malls, Hotels, Clubs, Banks, Etc.;
3. Leisure And Entertainment Venues: Parks, Scenic Spots, Amusement Parks, Etc.
4. Transport Site: Bus Station, Railway Station, Subway Station, Airport And So On.

5. Science And Education Unit: Colleges And Universities, Research Institutes, Libraries, Etc.;

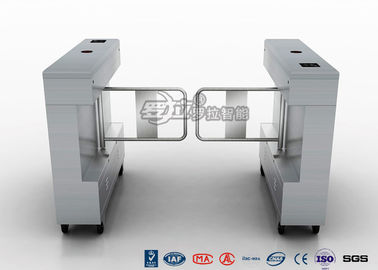

Access Control Swing Gate Turnstile Controlled Acrylic / Tempered Glass Arm Material 0


Project Case

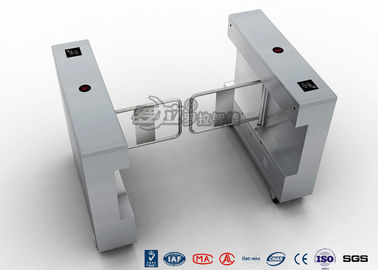

Access Control Swing Gate Turnstile Controlled Acrylic / Tempered Glass Arm Material 1
