Shenzhen RONA Intelligent Technology Co., Ltd
RONA Intelligent Technology Co., Limited
 |
| Place of Origin: | China |
| Brand Name: | RONA |
| Certification: | CE / ISO9001 |
| Model Number: | RNCF1088 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton and wooden packing |
| Delivery Time: | 7-15 working days |
| Payment Terms: | T/T, |
| Supply Ability: | 2000 units Per Month |
| Product Name: | Indoors Flap Barrier Turnstile / Entrance Automatic Bi Directional Turnstile,Pedestrian Barrier Gate | Size: | L1400mm*W300mm*H900mm |
|---|---|---|---|
| Material Of Flap: | Acrylic Flap Available Or Red Soft Flapper | Passage Width: | 550mm |
| Mean Time To Failure: | 5 000 000 | Communications Port:: | RS232 / RS485,distance=1200m |
| Materials: | 304 Stainless Steel & Stoving Varnish | Direction: | Single And Bi-directional |
| Pass Speed: | 40 Persons/min | Tine To Opean And Close Gate: | 0.6 Seconds |
| High Light: | Indoors Flap Barrier Turnstile,RS232 SS304 Flap Barrier Turnstile,Entrance Automatic Bi Directional Turnstile |
||

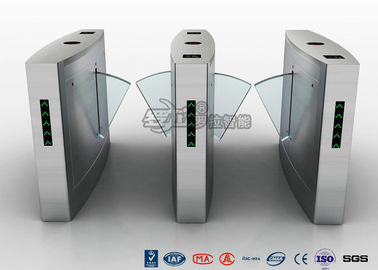

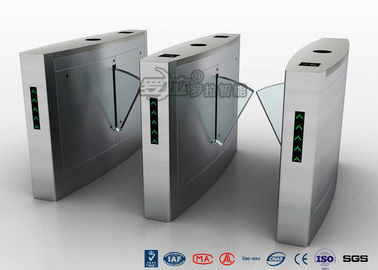

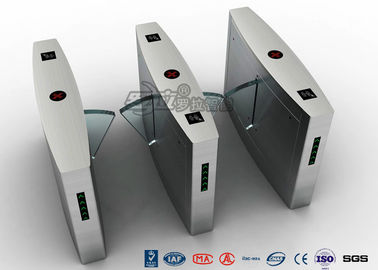

Retractable Flap Barrier System , Pedestrian Barrier Gate One Year Warranty
Description
•The Flap Barrier is the popular system that provide fast access clearance with minimum supervise observation.
•The blockage is provided by two acrylic wings. The lanes can be configured for entry, exit or bi-directional access. It is widely used in areas such as subway, immigration checkpoint, airport, factory, etc.
•Each lane is fitted with safety beams to ensure proper access clearing. Options to cater for children and wheelchair users are available.
•Our modern motor mechanism will disengage the arm when it is obstructed from opening or closing, providing an additional safety for pedestrians.
Tenical Parameters
| Structure Parameter | |
| Material | SUS304 brushed stainless steel, top cover 2.0mm, whole body 1.5mm |
| Swing gate material | 12mm thickness PC |
| Channel Width | ≤550mm |
| Technical Parameter | |
| Passing Speed | 30-35 personal/min |
| Opening Speed | Adjustable <1S |
| Working Temperature | -25℃-+70℃ |
| Mean Cycles Between Failure | 5 million times |
| IP Rating | IP24(if used outdoor, recommend to build a canopy) |
| Electric Parameter | |
| Voltage | AC110/AC220 50-60Hz |
| Power | Single Core 35w, dual core 60W |
| Driving Motor | DC brushless motor |
| Method of position | Motor drive |
| Communication interface | RS232 |
| Input / Output signal | dry contact signal input, 6-pair infrared sensor |
Extend Functions
The flap turnstile system is provided with a standard electric interface and can easily integrates the common 3rd party equipment with read/write facilities.
| 1. | access control system |
| 2. | bar-code scanner |
| 3. | Token /ID/IC card reader |
| 4. | time & attendance system |
| 5. | coin collector |
| 6. | card collector |
| 7. | consumption system |
| 8. | ESD system and fare collection system |
| 9. | biometric systems (fingerprint & face recognition) |
Project case
Delivery
Your concern:
1. What is your Quality Control?
We have a average 19-year experience QC team. They had a good teamwork to check raw materials and finished products to ensure the quality. The samples will be fully tested, and the bulk goods will be sampled for careful inspection, and the QC staff will also conduct inspections during the production process.
2. Do you provide customization?
We have 10-peoples customization team to cover our clients’ customized requirements. We also provide OEM and ODM service.
3. Could you tell us your after-sale service?
Timely support is a necessary. We provide free online support 24/7.
4. What would you do after the warranty?
We provide 12-month warranty, some of high products are with 24 months warranty. If out of warranty, we will provide free lifetime online services.
5. What are your optional list for your products?
Wireless control for pedestrian turnstiles, housing color changing, size changing, material SUS316 available, logo printing, add photocell quantity, etc.
7. How can we be your exclusive distributor?
To be our exclusive distributor, firstly you need to have your sales and technical team; Secondly, industry experience is required.
