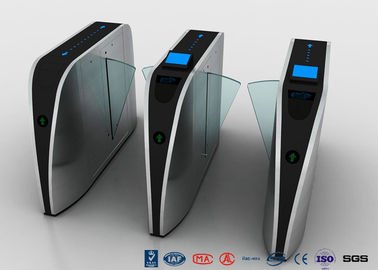

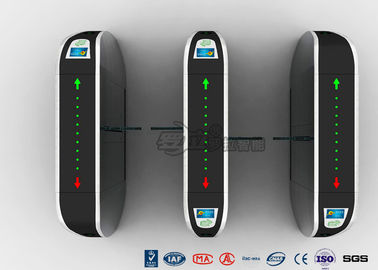

Fast Speed Flap Barrier Gate Full Automatic DC 24V Brush Motor 1 Year Warranty

Fast Speed Flap Barrier Gate Full Automatic DC 24V Brush Motor 1 Year Warranty

electronic turnstiles

security barrier gate

Place of Origin:

China

Brand Name:

RONA

Certification:

CE / ISO9001

Model Number:

RNCF8088H / RNCF8088HS

Contact Us
Request A Quote
Product Details
Material:
304 Stainless Steel
Working Voltage:
AC220±10%V
Size:
1600mm (L) * 300mm (W) * 1020mm (H)
Drive Motor:
DC24V Brush Motor
Working Environment:
Indoor
Direction Plate:
Arrow & Cross
Normal Running Life:
More Than 5 Millions
Passage Width: 550mm:
550MM
Communication Interface:
RS 485, Distance ≤1200m
Access Control:
RFID,fingerprint,barcode,esd,token
Turnstile Warranty:
1 Years
Payment & Shipping Terms
Minimum Order Quantity
1 pair
Price
negotiation
Packaging Details
Export Wooden Packing
Delivery Time
7-15 working days
Payment Terms
, T/T, L/C
Supply Ability
2000 units Per Month
Product Description

Fast Speed Flap Barrier Turnstile , Full Automatic Wing Barrier for Company,Flap Turnstile





Introduction of Electronic flap barrier

1) With function of self-examine and alarms, it is convenient for users to maintain and use.

2) will raise the alarm by means of a sound or light when someone pushes in illegally.

3) The mechanism is locked until a valid open signal is received.

4) Reset automatically--Go signal will be cancelled if passage through is not completed within pre-set time. The standard default is 5 seconds.

5) Unit can be adjusted permanent open or close when power off to meet different needs. Unit can be controlled and administered by remote control


Feature & Advantages

1. Self-checking function.
2. Working types:
2.1,bi-direction card reading;
2.2.one direction card reading and another prohibited;
2.3,one direction card reading and another free pass. Working types can be set in the control board.
3. Automatic turnstiles arm drop automatically when power off ;Arm recover its position automatically when power on.
4. Arm open&close time can be set by user in control boards
5. Manager can set pass time in control boards.
6. Flap barrier automatic alarm when illegal pass until passenger get an authorized card.
7. Flap barrier is RS485 interface for long-distance control.
8. Human safe: optical & mechanical anti-impact.Optical sensor detect passenger position.100% avoid passenger hurt during in passing . If arm meets any obstacle, arm stop working immediately .
9.LED display passengers numbers.
10. Direction display guide passenger go or stop.
11. Control software regulate authorized passengers numbers.
12. Stable running with low- noise.





Technical parameters

Model RNCF8088H RNCF8088HS
Item Single flap barrier Double flap barrier
Power consumption 50W 100W
Housing Size 1600x300x1020 mm
Housing material 1.5--2mm, #304 Stainless Steel, Matt finish
Drive motor DC brushless motor
Channel width 550mm
Pass speed 30~40 persons/min.
Power supply 220Vac 50Hz or 110Vac 60Hz
Input interface Switch Volume or 12V Level
Communication interface RS485
Gate open while power off Yes
Working temperature -30°C~+70°C
Working environments Indoor, outdoor
Relative humidity ≤95% coagulation free
MCBF More than 5 millions
Warranty 1 year
Outside packing Plywood box, 1520 x 420 x 1140mm
Pieces per box 1 pcs / box
Gross weight 110KG 130KG



Application

Flap turnstiles are mainly used in parks, subway, customers, airport, bus station, office building, scenic spot, community, attractions, and exhibition hall doors, residential, Construction Sites, Industrial Plants, Marquee Golf Tournaments, State Fairs, Special Sporting Events and Festivals!
