Shenzhen RONA Intelligent Technology Co., Ltd
RONA Intelligent Technology Co., Limited
 |
| Place of Origin: | China |
| Brand Name: | RONA |
| Certification: | CE / ISO9001 |
| Model Number: | RNCF2088 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton and wooden packing |
| Delivery Time: | 7-15 working days |
| Payment Terms: | T/T, |
| Supply Ability: | 2000 units Per Month |
| Product Name: | New Butterfly Organic Glass Flap Barrier Turnstile / Turnstile Entrance Gates With Ticketing | Size: | L1400mm*W300mm*H900mm |
|---|---|---|---|
| Material Of Flap: | Acrylic/Glass | Passage Width: | 550mm |
| Mean Time To Failure: | ≧ 5 Million | Communications Port:: | RS485,distance=1200m |
| Materials: | 304 Stainless Steel & Stoving Varnish | Direction: | Single And Bi-directional |
| Pass Speed: | 40 Persons/min | Tine To Opean And Close Gate: | 0.6 Seconds |
| High Light: | electronic turnstiles,security barrier gate |
||

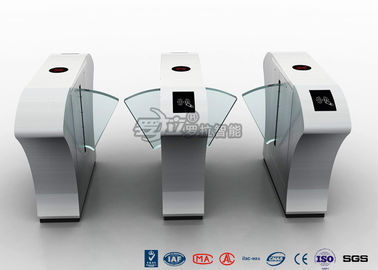

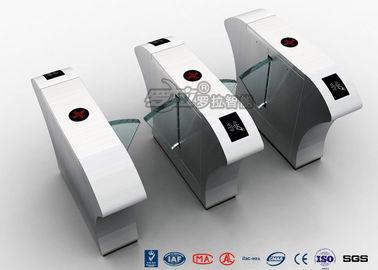

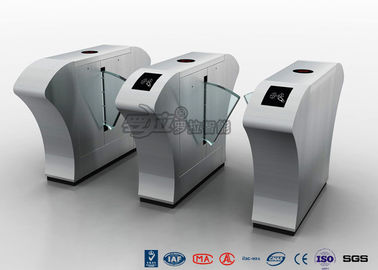

New Butterfly Organic Glass Flap Barrier Turnstile / Turnstile Entrance Gates With Ticketing
Tenical Parameters
| Description | Parameters |
| Item / Model | RNCF2088 |
| Running life | No more than 5 millions |
| Drive voltage | DC24V 20W |
| Pass Speed | not more than 30 persons/minute |
| Open direction | Unidirectional and bidirectional (optional) |
| Opening time | 0.6S/It is adjustable |
| Humidity | ≤90% coagulation free |
| Thickness of Housing | 2.0mm |
| Input port | relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal |
| Working Environment | indoor/out(with tent over)-10°C~70°C |
Product Description
| 1. Illegal Alarm Function | Break-in ,tail ,over-pass and reverse alert function in order to keep orderliness and effective manage |
| 2. Anti-pinch function | Barriers auto open when power shut, insure user safety |
| 3. Housing | Turned up-coverage is water-proof and easy maintain |
| 4. Emergency-escape function | The obstacles will open automatically by pressing the emergency button which can be remote-controlled whether the power is on or not |
| 5.Standard input/output port | Meanwhile leaving a port space for installing RS485 communication, connect and manage the integrated systems through the remote PC |
| 6. Direction | Big direction arrow plate to show passage condition |
Standard functions & features of Flap Turnstiles Gate
1) Rapid identification technique, available to identify accurately and efficiently the magnetic card, bar code card, ID card and IC card.
2) DC Brushless Motor, Maintenance Free
3) On-line or off –line mode(optional)
4) Real time trouble self-detect and alarm indication, ensuring system safe operation and facilitating maintenance and operation
5) With direction indication, guiding passenger to entry and exit.
6) Self automatic locking to prevent forcedly passing without the card
7) Automatic counting and displaying number of passenger, facilitating observation and with a displaying total amount as high as 90,000
8) Light and sound alarm indication function, preventing illegal entry or irregular passing
Extend Functions
The flap turnstile system is provided with a standard electric interface and can easily integrates the common 3rd party equipment with read/write facilities.
| 1. | access control system |
| 2. | bar-code scanner |
| 3. | Token /ID/IC card reader |
| 4. | time & attendance system |
| 5. | coin collector |
| 6. | card collector |
| 7. | consumption system |
| 8. | ESD system and fare collection system |
| 9. | biometric systems (fingerprint & face recognition) |
