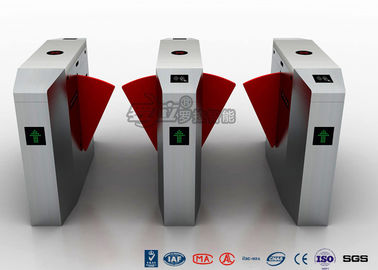

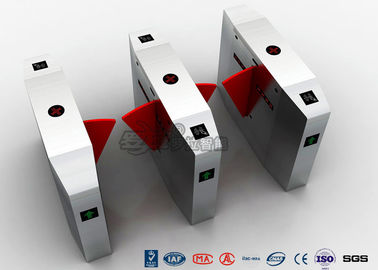

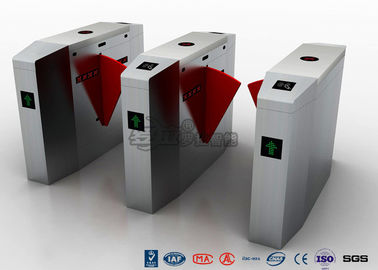

Automatic Flap Security Barrier Gate , Waist Height Turnstile With Ticketing System

Automatic Flap Security Barrier Gate , Waist Height Turnstile With Ticketing System

electronic turnstiles

security barrier gate

Place of Origin:


Brand Name:



CE / ISO9001

Model Number:

RNCF F9088

Contact Us
Request A Quote
Product Details
Product Name:
Automatic Flap Barrier Turnstile / Waist Height Turnstile With Ticketing System
Size (L*W*H):
Material Of Flap:
Acrylic Or Red/Blue PU Soft Flapper
Passage Width:
Mean Time To Failure:
More Than Million
Communications Port::
RS232 / RS485
Payment & Shipping Terms
Minimum Order Quantity
1 Lane
Packaging Details
carton and wooden packing
Delivery Time
7-15 working days
Payment Terms
Supply Ability
2000 units Per Month
Product Description

Automatic Flap Barrier Turnstile / Waist Height Turnstile with Ticketing System




Flap Barrier, half height turnstile, waist height turnstile, falp turnstile, turnstile, turnstiles, access control turnstile, access control barrier, sensor gate, sensor barrier, panel barrier, wing barrier, wing gate, wing turnstile, speed gate, access control system, perimeter protection barrier.



Product Features:
Stainless steel housing, novel and beautiful design, durable and stable mechanism.
LED Indicator Light of Automatic Waist Height Turnstile: Red and green light prompt the passing information.

Infrared and mechanical anti-clamping functions provide double protection.

All electric modules are designed to operate under the safety voltage of 24V, and Waist Height Turnstile is configured with residual current protective device to effectively avoid electric shocks.
Unique incomplete wheel transmission is adopted to make Waist Height flap barriers held or unheld in zero position more accurate and reliable.

Various working means can be set in the control panel menu, namely: bi-direction card reading passing, or one direction card reading passing and another passing limits

Ticketing System Flap Barrier Gate is using 10 pairs of military level high-performance infrared sensors and exact algorithms, it can accurately detect the pedestrian’s passing position to achieve the purposes such as anti-tailgating, anti-reverse passing, anti-clamping and so on.
When power off, Hot Selling Automatic Flap Barrier Gate open automatically and power on again, Flap Barrier Gate will be held automatically.




RNCF F9088

RNCF F9088


Single-core mechanism

Dual-core mechanism


304# Stainless Steel (default), 201# or 316# Stainless Steel or Paint (optional)

Thickness of ply



brushed surface, polishing surface or anti-fingerprint surface (optional);

Size (L*W*H)

1400mm*300mm*990mm (default)

Material of flap

different color Acrylic flap available or Red/Blue Soft flapper optional

Stretching-out flap length


The inductive card reader dimension

equipped with the standard mounting brackets or tailor.


Machine center

Germany technological motor

Power voltage

AC220V±10%, 50Hz±10%

Driver motor

DC Brush motor

Main-board voltage

12V DC

In-built Infrared

5 pairs/lane

Passing speed

30 persons/min

Passage Width


Opening / closing time

0.6 seconds

The time required to running state after power on

3 seconds

Automatic reset time after the failure

10 seconds

Mean time to failure

min. 5 000 000

Operation temperature

-10℃ ~ +70℃

Relative humidity

less than 95% not condensed

Working Environment

Indoor/Outdoor (with rain-tent cover)

Input port

relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal

Communications port

RS232/ RS485 electric standard, communications range≤1200m. Available to connect with external CAN BUS and Ethernet


12 months



Dimension Figure:

Automatic Flap Security Barrier Gate , Waist Height Turnstile With Ticketing System 0




Automatic Flap Security Barrier Gate , Waist Height Turnstile With Ticketing System 1
