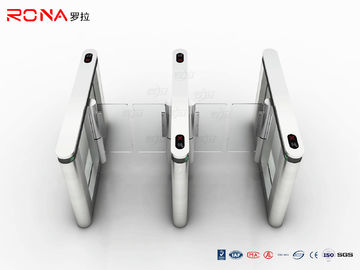

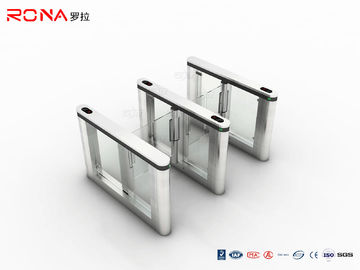

Pedestrian Access Security Gates ,Office building Speed Gate Turnstiles With Servo Motor Card Reader

Pedestrian Access Security Gates ,Office building Speed Gate Turnstiles With Servo Motor Card Reader

Pedestrian Access Security Gates ,Office building Speed Gate Turnstiles With Servo Motor Card Reader
Pedestrian Access Security Gates ,Office building Speed Gate Turnstiles With Servo Motor Card Reader
Pedestrian Access Security Gates ,Office building Speed Gate Turnstiles With Servo Motor Card Reader
Product Details:
Place of Origin: China
Brand Name: RONA
Certification: CE / ISO9001
Model Number: RNCF H8008-12
Payment & Shipping Terms:
Minimum Order Quantity: 1 Lane
Price: negotiation
Packaging Details: carton and wooden packing
Delivery Time: 7-15 working days
Payment Terms: T/T,
Supply Ability: 2000 units Per Month
Contact Now
Detailed Product Description
Product Name: Pedestrian Access Security Gates ,Office Building Speed Gate Turnstiles With Servo Motor Card Reader Materials: 304# Stainless Steel/Stoving Varnish
Passing Speed: 35~40 Persons/min Driving Moter: Servo Motor
Reset Time After Break Down: 0.5 Second Normal Running Life: 10 Million
Size: L1600*W160*H1060mm
High Light:

fastlane turnstiles

,

access control barriers

,

anti collision access control speed gates

Pedestrian Access Security Gates ,Office building Speed Gate Turnstiles With Servo Motor Card Reader​



Feature:
1) By using 9 pairs of military level high-performance infrared sensors, it can accurately achieve many functions, such as anti-tailgating, detect illegal passing, anti-clamping and anti-bruising, direction-judgment function and so on;
2) Durable because all the internal parts are with antirust and antiseptic treatment;
3) Mechanism with the servo motor and accurately positioning encoder, to make sure the arms to rotate rapidly and exactly, stably and noiselessly.
4) Adopt Multiple anti-clamping design to protect pedestrian's safety at maximum;
5) Equipped with the dry contact signal input interface, RS485/RS232 interface, TCP/IP interface (optional), compatible with all kinds of access controllers.





Basic Function:
Passing mode switching function: The entry and exit can be set independently 【controlled mode】 /【 free mode 】/【 forbidden mode】
Memory function of passing requests:

When more than 2 passing signals are given at the same time (including the same direction and opposite direction), the system will remember all the passing requests and finish them one by one. The number can be up to 255.
Passing indication function:
1) Direction indicator: The direction indicator is installed on the top of the housing to indicate the valid passing direction.
2) Passing status indicator: It is installed inside the housing side, indicating whether the swing gates can open after receiving the valid signal.
Automatic reset function:

The turnstile will open the gate after receiving the valid opening signal when standby.

The swing gate will return to the hindered zero position automatically under the following situation:
1) Within the allowed time, pedestrians have been detected in the specified direction passing the passage;
2) Over the allowed time, there is no people has been detected passing in the passage.
Self-recovery function:

The swing gates do not return to the hindered zero position because of human intervention. After revoking human intervention, the gate automatically return to the hindered zero position.
Automatic adjustment function:

When the turnstiles need to re-adjust because of mechanical wear, the main board can automatically adjust, accurate and convenient.





Security Design:
Anti-collision function:When the gate is locked, it can support the impulse force within the safety range. The gate can be manually pushed slowly when it is over the safety range, to protect the mechanism and pedestrian, and then recovers automatically.
Emergency escape function: Equipped with emergency escape control device, the system can automatically open the gate, easy for evacuation.​​​
Intelligent linkage alarm: Illegal traffic events can be linked with other all.



Pedestrian Access Security Gates ,Office building Speed Gate Turnstiles With Servo Motor Card Reader 0





Pedestrian Access Security Gates ,Office building Speed Gate Turnstiles With Servo Motor Card Reader 1



Pedestrian Access Security Gates ,Office building Speed Gate Turnstiles With Servo Motor Card Reader 2



Pedestrian Access Security Gates ,Office building Speed Gate Turnstiles With Servo Motor Card Reader 3


Production line for speed gate

Pedestrian Access Security Gates ,Office building Speed Gate Turnstiles With Servo Motor Card Reader 4





Project case

Pedestrian Access Security Gates ,Office building Speed Gate Turnstiles With Servo Motor Card Reader 5



Export wooden box for package

Pedestrian Access Security Gates ,Office building Speed Gate Turnstiles With Servo Motor Card Reader 6
