High Security Speed Gate Turnstile RFID Access Control For Intelligent Buildings

High Security Speed Gate Turnstile RFID Access Control For Intelligent Buildings

fastlane turnstiles

speedgate turnstile

rfid access control speedlane turnstile

Place of Origin:

China

Brand Name:

RONA

Certification:

CE / ISO9001

Model Number:

RNCF H8008-10

Contact Us
Request A Quote
Product Details
Product Name:
High Security Speed RFID Barrier Gate Access Control Turnstile Gate For Intelligent Buildings
Standard Size:
L1600*W160*H1060mm
Driving Motor:
DC Servo Motor
Swing Length:
260~450mm
Material Swing:
Acrylic Or Tempered Glass
Pass Speed:
40 Persons/min(open),25-30 Persons/min(closed)
Working Environment:
-10℃~70℃
Working Life:
10 Millions
Input Interface:
Dry Contact 12V
Shape Size:
Customized
Payment & Shipping Terms
Minimum Order Quantity
1 pair
Price
negotiation
Packaging Details
Wooden Case Packing
Delivery Time
7-15 working days
Payment Terms
, T/T
Supply Ability
2000 units Per Month
Product Description

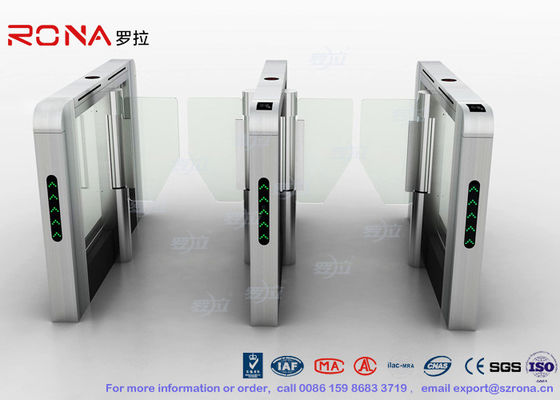

High Security Speed RFID Barrier Gate access control turnstile gate for Intelligent buildings



PRODUCT DESCRIPTIONS:



The fastlane turnstile combines slim line styling with one of the industries widest passages. It has clear, bi-directional swinging motorized barrier panels and a stylish, architectural design that enhances any access control installation. Its sleek design and smaller footprint makes it compatible with any upscale business or institutional environment.



As a result, an orderly and civilized passage is provided for the personnel in and out, and illegal personnel can be barred. At the same time, a special fire control interface is equipped in the system to meet the requirement of fire control passage, so that a rapid down rod control may be realized in emergency for.



Highest Security speed security swing turnstile rfid automatic gate​

The product is a high-tech product aimed at the pedestrian access intelligent management, which is a upgraded product based on intelligent tri-turnstile, swing barrier, average wing barrier. This product is well-processed and newly-designed with full functions, high grade, and mainly used in high grade places such as top-grade community, intelligent mansion, hotel, subway, port, club etc. The product integrating with mechanism, electron, microprocessor and various identification technology is compatible with card reader devices such as IC card, ID card, bar code, fingerprint and so on. By configuring all kinds of identification devices and adopting reliable safeguard devices, alarm devices, direction indicator etc, it is able to achieve acess intelligentized control and management.





SPECIFICATIONS:

Framework 304# Stainless Steel (default), 201# or 316# Stainless Steel or paint (optional)
Thickness of ply 1.7mm
Finish brushed surface, polishing surface
Shell's size 1600mm*160mm*1000mm (default)
Swing arm material Tempered glass or Acrylic
Stretching out swing length 260mm~450mm
The inductive card reader dimension equipped with the standard mounting brackets or tailor.
Machine center Germany technological motor
Power voltage AC220V±10%, 50Hz±10%
Driver motor DC36 servo motor
Main-board voltage 12V DC
In-built Infrared 6 pairs/passageway
Passing speed in normally 40 persons/min
Passing speed in normally closed mode 25~30 persons/min
Passage Width 600mm ~1150mm
Swing arm transmission angle 180°
Swinging direction unidirectional or bi-directional
Opening / closing time 0.1 seconds
The time required to running state after power on 3 seconds
Automatic reset time after the failure 1 seconds
Mean time to failure min. 10 000 000
Operation temperature -10℃ ~ +70℃
Relative humidity less than 95% not condensed
Working Environment Indoor/Outdoor (with rain-tent cover)
Input port relay dry contact signal; +12V level signal, pulse width >100ms, DC12V pulse signal
Communications port RS232/ RS485 electric standard, communications range ≤1200m. Available to connect with external CAN BUS and Ethernet





Reference Product project picture

High Security Speed Gate Turnstile RFID Access Control For Intelligent Buildings 0



High Security Speed Gate Turnstile RFID Access Control For Intelligent Buildings 1



Export wooden box

High Security Speed Gate Turnstile RFID Access Control For Intelligent Buildings 2
