Shenzhen RONA Intelligent Technology Co., Ltd
RONA Intelligent Technology Co., Limited
 |
| Place of Origin: | China |
| Brand Name: | RONA |
| Certification: | CE / ISO9001 |
| Model Number: | RNCF H1088 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiation |
| Packaging Details: | carton and wooden packing |
| Delivery Time: | 7-15 working days |
| Payment Terms: | T/T, |
| Supply Ability: | 2000 units Per Month |

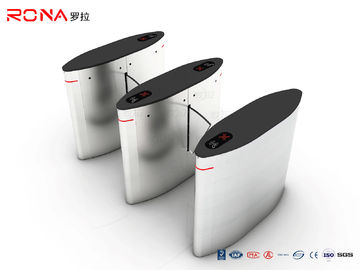

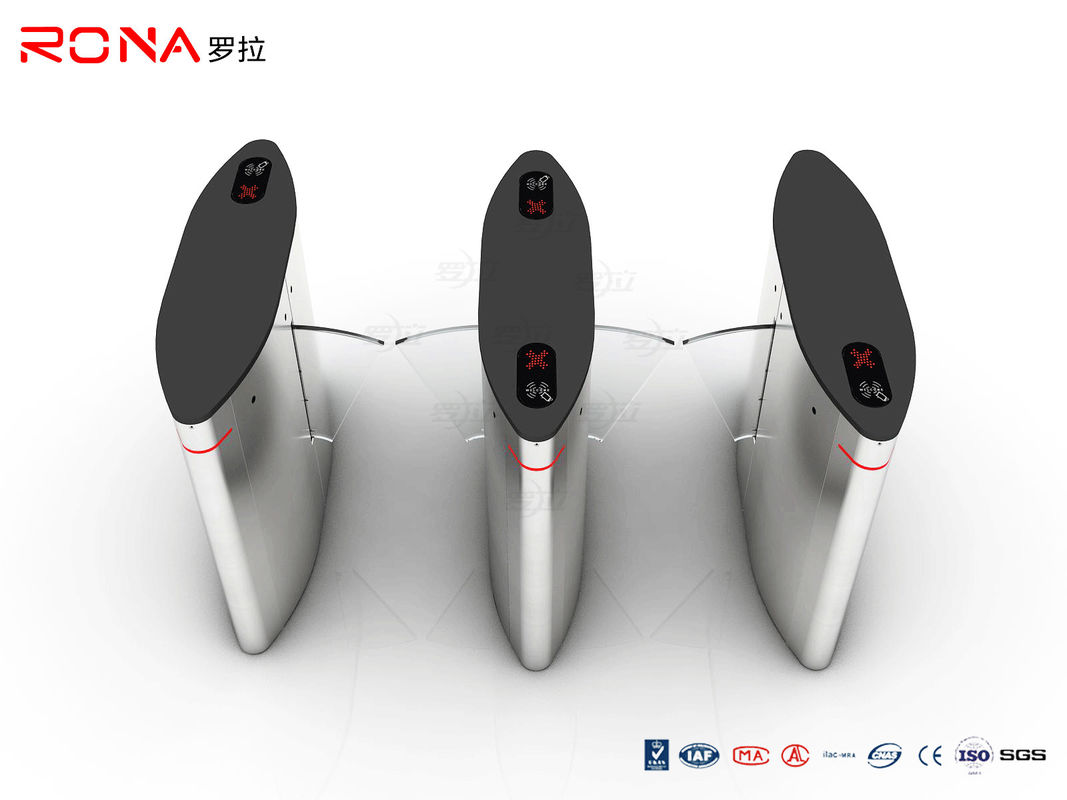

| Product Name: | Flap Security Barrier Gate Card Reader And Biometric System High Speed Gate | Size (L*W*H): | 1210*310*990mm |
|---|---|---|---|
| Material Of Flap: | Acrylic Flap Available Or PU Soft Barrier Model | Passage Width: | 550mm |
| Mean Time To Failure: | >5 Millions | Communications Interface: | Standard RS485 Interface,distance=1200m |
| Swing Arm Length: | 250mm | Open Time: | 0.6 Seconds (Adjustable) |
| Working Environment: | Indoor/outdoor(with A Tent Over)-10℃~70℃ | ||
| High Light: | electronic turnstiles,security barrier gate |
||
https://www.tiktok.com/t/ZTRRV3D3G/?k=1Flap Security Barrier gate Card Reader and biometric system high speed gate
Tenical Parameters
| Description | Parameters |
| Item / Model | RNCF H1088 |
| Running life | 5 millions |
| Drive voltage | DC24V 20W |
| Pass Speed | 30-40 persons/minute |
| Open direction | Unidirectional and bi-directional (optional) |
| Opening time | 0.6S (adjustable) |
| Color | sliver |
| Thickness of Housing | 2.0mm |
| Input port | relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal |
Product Description
1, Running stablely without noise and mechanical impact
2, The passing person number of the persons can be set
3, Several ways of working molds for your demand chosen
4, Bi-direction, or one direction permitted, one forbidden, or one direction charged, one for free, and all the working molds set by the buttons in the main control board
5, Beam falling and lifting can be controlled in far distance so to satisfy the special requirement of the users and the request of fire protection.
6, Direction-guide lights in the turnstile to tell you whether the direction to go or not
7, The standard electrical interface connected with various kinds of reader and writer equipment
8, All the functions realized in one integration machine and controlled and managed by the computer in the far distance
9, The number of the persons passed by can be counted automatically which can also be displayed in LED
10, Beam can be lifted and fall when power is cut-off
11, The function with or without card-reading memory cab be set according to your demand
12, Self-check and alarm for convenienting to operate
Standard functions & features of Flap Turnstiles Gate
|
1) On-line or off –line mode(optional) |
|
2) DC Brushless Motor, Maintenance Free |
|
3) With direction indication, guiding passenger to entry and exit. |
|
4) Self automatic locking to prevent forcedly passing without the card |
|
5) Light and sound alarm indication function, preventing illegal entry or irregular passing |
|
6) Rapid identification technique, available to identify accurately and efficiently the magnetic card, bar code card, ID card and IC card. |
|
7) Automatic counting and displaying number of passenger, facilitating observation and with a displaying total amount as high as 90,000 |
Extend Functions
The flap turnstile system is provided with a standard electric interface and can easily integrates the common 3rd party equipment with read/write facilities.
| 1. | access control system |
| 2. | bar-code scanner |
| 3. | Token /ID/IC card reader |
| 4. | time & attendance system |
| 5. | coin collector |
| 6. | card collector |
| 7. | consumption system |
| 8. | ESD system and fare collection system |
| 9. | biometric systems (fingerprint & face recognition) |
Product project picture
