Security Half Height Turnstiles High Transit Speed Access Control System

Security Half Height Turnstiles High Transit Speed Access Control System

turnstile access control

waist high turnstile

Place of Origin:


Brand Name:



CE / ISO9001

Model Number:


Contact Us
Request A Quote
Product Details
Standard Size::
L1200*W280*H1000 (mm)
Input Signal::
Standard RS485
Opening/Closing Time::
Normal Life-span::
> 5 Million
Arm Driving Force:
Indoor Or Outdoor
Direction Indication
Payment & Shipping Terms
Minimum Order Quantity
1 unit
Packaging Details
wooden cases packing
Delivery Time
7-15 working days
Payment Terms
Supply Ability
2000 units Per Month
Product Description

Best Security Electronic Half Height Turnstiles Transit Speed Access Control System

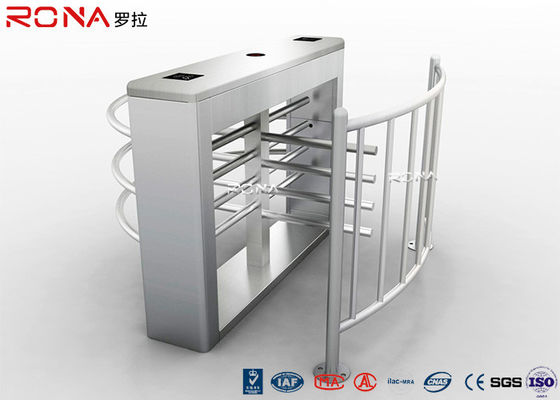

Model:RNCF10238-1 Half Height Turnstile

Product Descriptions:


RONA RNCF10238-1 Half height turnstile can be compatible with IC card, ID card, barcode card, and door access control, fingerprint reading card recognition device used for staff, provide civilized, orderly access methods; effectively manage the access of staff . Which widely is used in some high security places, such as prison, stadium, parking system area , and so on…



Standard Features&Functions:


Turnstile working condition is adjustable by setting the button on main control board.


Turnstile use secondly mechanism with shock absorption device and anti-reverse device.


Turnstile with 60°anti-reverse function.


Anti-collision avoidance function: Before received the open signal, the turnstile will lock automatically.


When out of power, turnstile will open the gates automatically to the request the fire alarm.


Automatic Reset Functions: after you swap the card, during the specific time(the system default is 10s),System will reset in1~60s when powered off, turnstile will open automatically, powered on turnstile will close automatically.


Big direction arrow plate to show passage condition.


Turnstile with swiping card memory function.


Through the management computer to realize remote control and management.





Technical Parameters:

Item RNCF10238-1
Housing Material 304 stainless steel
Standard Size L1200*W280*H1000(mm)
Drive motor DC 24V brush motor
Arm Length 510mm
Pass Direction one or bi-directional
Arm Driving Force 1kg
LED Light direction indication
Working mechanism 24V solenoid valve(German Technology)
Working Environment Indoor and Outdoor
Work temperature -10°C~70°C
Normal Running Life More than 5million
Card Reader area holder
Reset time after break down RS485
Input interface 12V pulse signal with pulse width >100ms, drive current >10mA



Extend Functions:

  1. Nonstandard Program customized.
  2. LED Counting function.
  3. Turnstile shape size can do customized.
  4. Voice Prompt Function.
