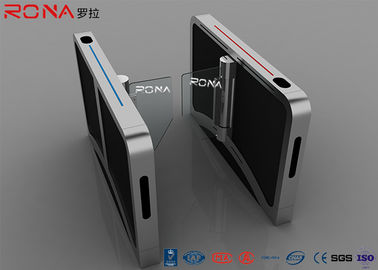

Pedestrian Control Speed Gate Turnstile AC220V 200w 500~1050mm Passage Width

Pedestrian Control Speed Gate Turnstile AC220V 200w 500~1050mm Passage Width

fastlane turnstiles

access control barriers

Place of Origin:

China

Brand Name:

RONA

Certification:

CE / ISO9001

Model Number:

RNCF H8008-6

Contact Us
Request A Quote
Product Details
Materials:
304 Stainless Steel(optional)
Dimension:
Customized
Power Voltage:
AC220V±10%, 50Hz±10%, 200w
Driving Motor:
Servo Motor
Passing Speed:
40 Persons/min(open),30 Persons/min(close)
Passage Width:
500~1050mm
Operation Temperature::
About -10℃ ~ +70℃
Reset Time After Break Down:
0.5 Seconds
Normal Running Life:
10 Million
Interface:
Standar RS485 Interface, Distance=1200m
Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
negotiation
Packaging Details
carton and wooden packing
Delivery Time
7-15 working days
Payment Terms
T/T, , L/C
Supply Ability
2000 units Per Month
Product Description





Luxury Intelligent Speed Gate Pedestrian Control Turnstile For Hotle / Office Building



Product Descriptions





The speed gate turnstile combines slim line styling with one of the industries widest passages. It has clear, bi-directional swinging motorized barrier panels and a stylish, architectural design that enhances any access control installation. Its sleek design and smaller footprint makes it compatible with any upscale business or institutional environment.

The fast lane turnstile controls pedestrian access between public and secure areas. The fastlane turnstile system is provided with a standard electric interface and can easily integrates the common 3rd party equipment with read/write facilities, such as access control system, time & attendance system, consumption system, ESD system and fare collection system, biometric systems (fingerprint & face recognition), bar-code scanner, Token/ID/IC card reader, coin collector and card collector, etc.

As a result, an orderly and civilized passage is provided for the personnel in and out, and illegal personnel can be barred. At the same time, a special fire control interface is equipped in the system to meet the requirement of fire control passage, so that a rapid down rod control may be realized in emergency for.






Standard Features & Functions



1. Smooth operating motorized barriers, the entire system runs smoothly, with a small noise and free of mechanical impact.
2. Extremely fast throughputs.
3. The fastlane turnstile system can easily integrates with the 3rd party equipment, such as Biometric systems, consumption systems, ESD system and access control system, etc.
4. Operation model: Both directions can be set as controlled mode or free mode, two or one direction can be controlled by switch-button or access controller.
5. Automatic check fault and alarm prompt function: to convenient for users to maintain.
6. The running status of device can be set up through pressing the built-in small keyboard of the main control board.
7. The device is locked until a valid open signal is received.
8. Emergency-escape function: When power off, it will be opened the gates automatically to meet the request of fire protection. Also the gates will open by pressing the emergency button which can be remote-controlled whether the power is on or not. (Optional).
9. Remote control and management function: Through the management computer to realize remote control and management.
10 Streamline small footprint design that utilizes shared cabinets for multi-lane
11 LED indicator function: Traffic lights on both sides of the turnstile barrier are the indicator of access status, When the traffic lights show green, it means to pass and the red light means no-entry. The traffic lights on both sides can be set to indicate access for left or right or bi-direction.
12. Anti-pinch function: Auto-alarm will activate for unauthorized pedestrian movement and tailgating. The barrier uses several photo sensors to prevent turnstile closure on a person while inside the lane.
13. Reset automatically function: ① the gates can locked automatically when it be forcibly pushed 10 degrees. ② “Go” signal will be cancelled if passage through is not completed within pre-set time. The standard default is 10 seconds (time adjustable 1s ~ 60s, by changing parameter of main control board).





Optional & Customized Function





Alternative Materials, Finished and Custom Design
Usage LED Counter function
Audio and visual alarm in the event of an invalid entry or exit and tailgating
Remote Controlled Button
Extra add sensors transmitter and receiver type
Infrared sensors reset function
Access Control System Integration
Camera System Integration
Thermostat System Integration
Card Reader mounting: Card readers may be mounted on the surface of the barrier, or the card readers may be mounted flush mounted. There is an output to interlock the card.
Stroboscopic alarm light prompt function: to help for site administrator to find the failure units fast and exactly.









Pedestrian Control Speed Gate Turnstile AC220V 200w 500~1050mm Passage Width 0
