Pedestrian Control Electronic Flap Barrier Gate Acrylic Counter Turnstiles

Pedestrian Control Electronic Flap Barrier Gate Acrylic Counter Turnstiles

electronic turnstiles

security barrier gate

Place of Origin:

China

Brand Name:

RONA

Certification:

CE / ISO9001

Model Number:

RNCF7088

Contact Us
Request A Quote
Product Details
Product Name:
Pedestrian Control Electronic Flap Barrier Gate/ Acrylic Counter Turnstiles
Standar Size:
L1400*W300*H900mm
Material Of Flap:
Red Solf Flapper
Passage Width:
550mm
Mean Time To Failure:
≧ 5 Million
Communications Port::
RS485 Distance=1200m
Materials:
304 Stainless Steel & Stoving Varnish
Direction:
Single And Bi-directional
Pass Speed:
40 Persons/min
Tine To Opean And Close Gate:
0.6 Seconds
Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
negotiation
Packaging Details
carton and wooden packing
Delivery Time
7-15 working days
Payment Terms
T/T,
Supply Ability
2000 units Per Month
Product Description





Pedestrian Control Electronic Flap Barrier Gate/ Acrylic Counter Turnstiles



Tenical Parameters



Description Parameters
Item / Model RNCF7088
Running life No more than 5 millions
Drive voltage DC24V 20W
Pass Speed 40 persons/minute
Open direction Unidirectional and bidirectional (optional)
Opening time 0.6S/It is adjustable
Humidity ≤90% coagulation free
Thickness of Housing 2.0mm
Input port relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal
Working Environment indoor/out(with tent over)-10°C~70°C





Product Description



Flap turnstiles is a hight-tech product which mainly provides intelligent management to passageway.This product is finely processed with

complete function and high level ,suitable for high-level neighborhoods intelligent building, hotel, subway, port and club,ect.





Standard functions & features of Flap Turnstiles Gate





1) On-line or off –line mode(optional)

2) DC Brushless Motor, Maintenance Free

3) With direction indication, guiding passenger to entry and exit.

4) Self automatic locking to prevent forcedly passing without the card

5) Light and sound alarm indication function, preventing illegal entry or irregular passing

6) Real time trouble self-detect and alarm indication, ensuring system safe operation and facilitating maintenance and operation

7) Rapid identification technique, available to identify accurately and efficiently the magnetic card, bar code card, ID card and IC card.

8) Automatic counting and displaying number of passenger, facilitating observation and with a displaying total amount as high as 90,000







Extend Functions



The flap turnstile system is provided with a standard electric interface and can easily integrates the common 3rd party equipment with read/write facilities.




1. access control system
2. bar-code scanner
3. Token /ID/IC card reader
4. time & attendance system
5. coin collector
6. card collector
7. consumption system
8. ESD system and fare collection system
9. biometric systems (fingerprint & face recognition)

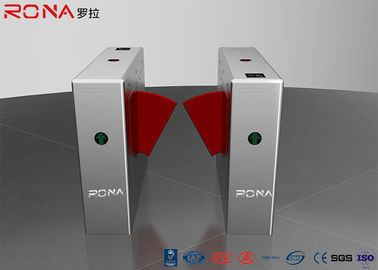

Pedestrian Control Electronic Flap Barrier Gate Acrylic Counter Turnstiles 0







Pedestrian Control Electronic Flap Barrier Gate Acrylic Counter Turnstiles 1
