Shenzhen RONA Intelligent Technology Co., Ltd
RONA Intelligent Technology Co., Limited
 |
| Place of Origin: | China |
| Brand Name: | RONA |
| Certification: | CE / ISO9001 |
| Model Number: | RNCF1088 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton and wooden packing |
| Delivery Time: | 7-15 working days |
| Payment Terms: | T/T, |
| Supply Ability: | 2000 units Per Month |
| Product Name: | RONA Security Solutions Access Control Automatic Flap Turnstile Barrier Gate | Size: | L1400mm*W300mm*H900mm |
|---|---|---|---|
| Material Of Flap: | Red Soft Flapper | Passage Width: | 550mm |
| Mean Time To Failure: | 5 000 000 | Communications Port:: | RS232 / RS485,distance=1200m |
| Materials: | 304 Stainless Steel & Stoving Varnish | Direction: | Single And Bi-directional |
| Pass Speed: | 40 Persons/min | Tine To Opean And Close Gate: | 0.6 Seconds |
| High Light: | security barrier gate,security turnstiles |
||

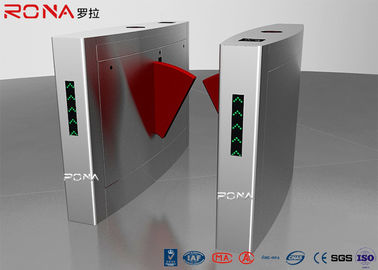

RONA Security Solutions Access Control Automatic Flap Turnstile Barrier Gate
Description
Flap turnstiles is a hight-tech product which mainly provides intelligent management to passageway.This product is finely processed with
complete function and high level ,suitable for high-level neighborhoods intelligent building, hotel, subway, port and club,ect.
Product Classifications
-> Single-core mechanism: RNCF 1088
The flap barrier only equipped with single-core in the cabinet, usually be used in single lane or multi-lane applications.
->Dual-core mechanism: RNCF1088S
The flap barrier equipped with independent dual-core in the cabinet, usually be used in multi-lane applications.
Tenical Parameters
| Framework | 304# Stainless Steel (default), 201# or 316# Stainless Steel or Paint (optional) |
| Thickness of ply | 2.0mm |
| Finish | brushed surface, polishing surface or anti-fingerprint surface (optional) |
| Machine center | Germany technological motor |
| Power voltage | AC220V±10%, 50Hz±10% |
| Driver motor | DC Brush motor |
| Main-board voltage | 12V DC |
| In-built Infrared | 5 pairs/lane |
| The time required to running state after power on | 3 seconds |
| Automatic reset time after the failure | 10 seconds |
| Operation temperature | -10℃ ~ +70℃ |
| Relative humidity | less than 90% not condensed |
| Working Environment | Indoor/Outdoor (with rain-tent cover) |
| Input port | relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal |
| Communications port | communications range≤1200m |
Extend Functions
The flap turnstile system is provided with a standard electric interface and can easily integrates the common 3rd party equipment with read/write facilities.
| 1. | access control system |
| 2. | bar-code scanner |
| 3. | Token /ID/IC card reader |
| 4. | time & attendance system |
| 5. | coin collector |
| 6. | card collector |
| 7. | consumption system |
| 8. | ESD system and fare collection system |
| 9. | biometric systems (fingerprint & face recognition) |
