Shenzhen RONA Intelligent Technology Co., Ltd
RONA Intelligent Technology Co., Limited
 |
| Place of Origin: | China |
| Brand Name: | RONA |
| Certification: | CE / ISO9001 |
| Model Number: | RNCF F6088 |
| Minimum Order Quantity: | 1 Lane |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton and wooden packing |
| Delivery Time: | 7-15 working days |
| Payment Terms: | T/T, |
| Supply Ability: | 2000 units Per Month |
| Materials:: | 304 Stainless Steel & Stoving Varnish | Size (L*W*H): | L1400mm*W300mm*H900mm |
|---|---|---|---|
| Material Of Flap: | Acrylic Flap Available Or Red Soft Flapper | Passage Width: | 550mm |
| Mean Time To Failure: | 5 000 000 | Communications Port:: | RS232 / RS485 |
| High Light: | security barrier gate,security turnstiles |
||

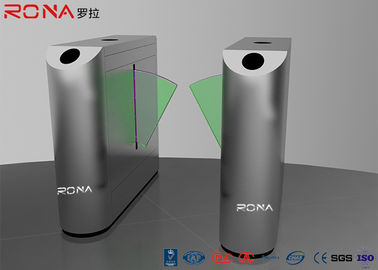

Acrylic Flap Waist Height Turnstile Optical Sensor Rs485 Communications P
ort
KEY WORDS
Flap Barrier, half height turnstile, waist height turnstile, falp turnstile, turnstile, turnstiles, access control turnstile, access control barrier, sensor gate, sensor barrier, panel barrier, wing barrier, wing gate, wing turnstile, speed gate, access control system, perimeter protection barrier.
PRODUCT CLASSIFICATIONS
-> Single-core mechanism: RNCF F6088
The flap barrier only equipped with single-core in the cabinet, usually be used in single lane or multi-lane applications.
->Dual-core mechanism: RNCF F6088S
The flap barrier equipped with independent dual-core in the cabinet, usually be used in multi-lane applications.
SPECIFICATIONS
|
Model |
RNCF F6088 |
RNCF F6088S |
|
Classifications |
Single-core mechanism |
Dual-core mechanism |
|
Framework |
304# Stainless Steel (default), 201# or 316# Stainless Steel or Paint (optional) |
|
|
Thickness of ply |
1.3mm |
|
|
Finish |
brushed surface, polishing surface or anti-fingerprint surface (optional); |
|
|
Size (L*W*H) |
1200mm*300mm*1020mm (default) |
|
|
Material of flap |
different color Acrylic flap available or Red Soft flapper optional |
|
|
Stretching-out flap length |
230~235mm |
|
|
The inductive card reader dimension |
equipped with the standard mounting brackets or tailor. |
|
|
Machine center |
Germany technological motor |
|
|
Power voltage |
AC220V±10%, 50Hz±10% |
|
|
Driver motor |
DC Brush motor |
|
|
Main-board voltage |
12V DC |
|
|
In-built Infrared |
5 pairs/lane |
|
|
Passing speed |
30 persons/min |
|
|
Passage Width |
550mm |
|
|
Opening / closing time |
0.6 seconds |
|
|
The time required to running state after power on |
3 seconds |
|
|
Automatic reset time after the failure |
10 seconds |
|
|
Mean time to failure |
min. 5 000 000 |
|
|
Operation temperature |
-10℃ ~ +70℃ |
|
|
Relative humidity |
less than 95% not condensed |
|
|
Working Environment |
Indoor/Outdoor (with rain-tent cover) |
|
|
Input port |
relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal |
|
|
Communications port |
RS232/ RS485 electric standard, communications range≤1200m. Available to connect with external CAN BUS and Ethernet |
|
|
Warranty |
12 months |
|
PRODUCT DESCRIPTIONS
The retractable flap turnstile controls pedestrian access between public and secure areas. The turnstile lane uses an array of optical sensors to determine the number and direction of persons passing through the lane. The turnstile uses a retractable flap to block the pedestrian’s path.
The flap turnstile system is provided with a standard electric interface and can easily integrates the common 3rd party equipment with read/write facilities, such as access control system, bar-code scanner, Token /ID/IC card reader, time & attendance system, coin collector, card collector, biometric systems (fingerprint & face recognition), consumption system, ESD system and fare collection system, etc.
PROJECTS
WORKSHOP:
EXHIBITION:
Contact Person: Ms. Joey Tu
Tel: 0086-88853586 ext 8018
Fax: 86-755-88853586-8002
