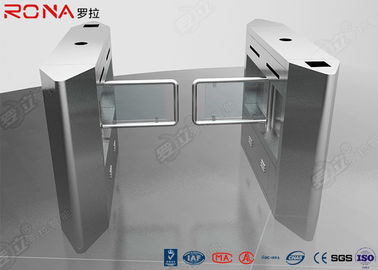

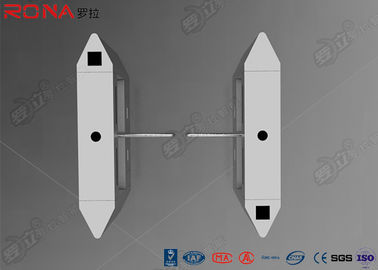

Security Access Control Swing Barrier Gate System With Rfid Identification

Security Access Control Swing Barrier Gate System With Rfid Identification

  • Security Access Control Swing Barrier Gate System With Rfid Identification
  • Security Access Control Swing Barrier Gate System With Rfid Identification
Security Access Control Swing Barrier Gate System With Rfid Identification
Product Details:
Place of Origin: China
Brand Name: RONA
Certification: CE / ISO9001
Model Number: RNCF H7008L
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Export Wooden Packing
Delivery Time: 7-15 working days
Payment Terms: , L/C, T/T
Supply Ability: 2000 units Per Month
Contact Now
Detailed Product Description
Product Name: Luxury Automatic New Look Security Optical Access Control Swing Gate Turnstile System With Rfid Identification Standard Size: 1200*280*990 Mm
Driving Motor: DC24V Brush Motor Swing Length: 500~900mm
Material Swing: Stainless Steel / Acrylic Pass Speed: 40 Persons/min
IP: 54 Working Environment: -10℃~70℃
Working Life: 5 Millions Input Interface: +12V Level Signal Or Pulse Width>100ms 12V Pulse, Drive Current>10mA
Guarantee: 12 Months Communication: RS485 (optional)
High Light:

pedestrian security gates

,

pedestrian swing gate



Luxury Automatic New Look Security Optical Access Control Swing Gate Turnstile System With Rfid Identification ​





Technical Parameters



Description Parameters
Item Model RNCF H7008L
Service life  ≧5 million cycles
Drive voltage DC24V 20W
Pass rate 40 persons/minute
Open direction Unidirectional and bidirectional (optional)
Opening time 2-3S(adjustable)
Humidity ≤90% coagulation free
Thickness of Housing 2.0mm(optional)
Length of the arm 230-900mm
Passage width 500-1800mm
Swing arm work angle 180°
Communication RS485









Product Description



1. Swing Turnstile gate is a device used for pedestrian channel entry/exit management. With quick openning, safety and convenient features, it is the ideal management equipment for pedestrian high frequency access.
2. The device housing are formed by inported SUS#304 stainless steel stamping, beautiful and generous shape, anti-rust, durable.
3. Standard electrical interface for external use, easily integrated with RFID card reader, barcode reader, fingerprint, face recognition, iris recognition etc.
4. Specially designed to meet the fire requirements of the function, convenient for people to evacuate in an emergency.
5. Optical Turnstiles are suit for elegant and luxury entrance solutions.





Standard functions & features of Swing Turnstiles Gate



1. Infrared sensor to prevent pinch pedestrians.
2. Alarm function, in case of illegal intrusion and reverse intrusion.
3. Anti-breakthrough function. The gate is locked automatically until opening signal received.
4. Anti-trailing function, the turnstile will lock if someone wants to burst in without swiping the RFID card.
5. The whole system runs smoothly, long-life performance, high operation dependability and fast response.
6. When power off, optical turnstile will open automatically, which is complying with fire safety requirements.
7. Automatic reset function. If the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.


Adaptive Place


1. Office: Business Building, Government Office, Etc.;
2.
Business Services: Supermarkets, Shopping Malls, Hotels, Clubs, Banks, Etc.;
3. Leisure And Entertainment Venues: Parks, Scenic Spots, Amusement Parks, Etc.
4. Transport Site: Bus Station, Railway Station, Subway Station, Airport And So On.

5. Science And Education Unit: Colleges And Universities, Research Institutes, Libraries, Etc.;











Security Access Control Swing Barrier Gate System With Rfid Identification 0
