Shenzhen RONA Intelligent Technology Co., Ltd
RONA Intelligent Technology Co., Limited
 |
| Place of Origin: | China |
| Brand Name: | RONA |
| Certification: | CE / ISO9001 |
| Model Number: | RNCF8008Z |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Export Wooden Packing |
| Delivery Time: | 7-15 work days |
| Payment Terms: | T/T, L/C, |
| Supply Ability: | 2000 units Per Month |
| Name: | High Quality Pedestrian Access Control Security Swing Gate Turnstile With Glass And Acrylic Arm | Size1: | L1200*W250-300*H1020(mm) |
|---|---|---|---|
| Size: | L380*W280*H990 | Swing Arm Material: | Acrylic / Tempered Glass |
| Type: | Swing Gate Turnstiles | Transit Rate: | 30 People/min |
| Color: | Sliver / Customized | ||
| High Light: | glass swing gate,pedestrian swing gate |
||

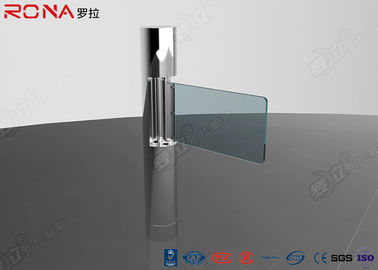

High Quality Pedestrian Access Control Security Swing Gate Turnstile With Glass And Acrylic Arm
Technical Parameters
| Description | Parameters |
| Item Model | RNCF8008Z |
| Service life | About 5 million cycles |
| Drive voltage | DC24V 20W |
| Pass rate | 30 persons/minute |
| Open direction | Unidirectional and bidirectional (optional) |
| Opening time | 2~3S(adjustable) |
| Humidity | ≤90% coagulation free |
| Thickness of Housing | 2.0mm(optional) |
| Length of the arm | 230-900mm |
| Passage width | 500-1800mm |
| Swing arm work angle | 180° |
| Communication | TCP,IP,RS485 |
Product Description
| 1. Swing Turnstile gate is a device used for pedestrian channel entry/exit management. With quick openning, safety and convenient features, it is the ideal management equipment for pedestrian high frequency access. |
| 2. The device housing are formed by inported SUS#304 stainless steel stamping, Simple and generous shape, anti-rust, durable. |
| 3. Standard electrical interface for external use, easily integrated with RFID card reader, barcode reader, fingerprint, face recognition, iris recognition etc. |
| 4. Specially designed to meet the fire requirements of the function, convenient for people to evacuate in an emergency. |
| 5. Optical Turnstiles are suit for elegant and luxury entrance solutions. |
Standard functions & features of Swing Turnstiles Gate
| 1. | A compact electro-mechanical design with unique drive and a self-lock mechanism |
| 2. | Alarm function, in case of illegal intrusion and reverse intrusion. |
| 3. | Input interface available for dry contact and switch signal connection |
| 4. | Adjustable auto-delay closing |
| 5. | Infrared photocells for safety access |
| 6. | Alarm for unauthorized access and no access againsl passenger |
| 7. | Auto-closing when power on |
| 8. | Free access when power off |
| 9. | Traffic lighl indicating passenger access |
| 10. | Emergency interface available |
Adaptive Place
1. Office: Business Building, Government Office, Etc.;
2. Business Services: Supermarkets, Shopping Malls, Hotels, Clubs, Banks, Etc.;
3. Leisure And Entertainment Venues: Parks, Scenic Spots, Amusement Parks, Etc.
4. Transport Site: Bus Station, Railway Station, Subway Station, Airport And So On.
5. Science And Education Unit: Colleges And Universities, Research Institutes, Libraries, Etc.;
Contact Person: Ms. Joey Tu
Tel: 0086-88853586 ext 8018
Fax: 86-755-88853586-8002
