Shenzhen RONA Intelligent Technology Co., Ltd
RONA Intelligent Technology Co., Limited
 |
| Place of Origin: | China |
| Brand Name: | RONA |
| Certification: | CE / ISO9001 |
| Model Number: | RNCF8008S |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Export Wooden Packing |
| Delivery Time: | 7-15 work days |
| Payment Terms: | T/T, L/C, |
| Supply Ability: | 2000 units Per Month |
| Name: | Full Automatic Sigle Or Bi-directional Gate Swing Barrier Turnstile Supermarket Electronic Gate | Size1: | L1200*W250-300*H1020(mm) |
|---|---|---|---|
| Size: | L380*W280*H990(mm) | Swing Arm Material: | 304 Stainless Steel |
| Type: | Swing Gate Turnstiles | Transit Rate: | 30 People/min |
| Color: | Sliver / Customized | ||
| High Light: | glass swing gate,pedestrian security gates |
||

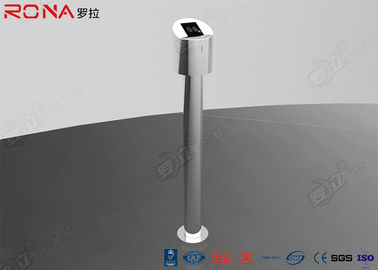

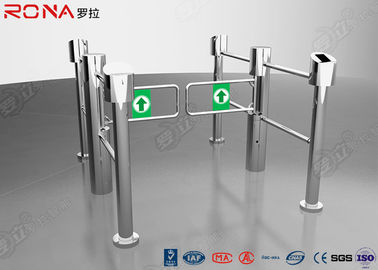

Full Automatic Sigle Or Bi-directional Gate Swing Barrier Turnstile Supermarket Electronic Gate
Technical Parameters
| Description | Parameters |
| Item Model | RNCF8008S |
| Service life | ≧5 million cycles |
| Drive voltage | DC24V 20W |
| Pass rate | 30 persons/minute |
| Open direction | Unidirectional and bidirectional (optional) |
| Opening time | 2~3S(adjustable) |
| Humidity | ≤90% coagulation free |
| Thickness of Housing | 2.0mm(optional) |
| Swing arm length | 230-900mm |
| Passage width | 500-1800mm |
| Swing arm work angle | 180° |
| Swing direction | Sigle / Bi-directional |
Product Description
| 1.Application | It can be used in many places, especially for the place where have a large stream of people. Normally, it is mainly used to welcome the arrival of the customers, to catch the eyes of customers, and to provide a safe and fashionable access control solution. |
| 2.Advanced Technology | Adopting diffuse reflection photo-sensor and microcomputer control system, so the closing time of the gate can be adjusted from 1 to 15 seconds. |
| 3.Anti-panic Function & Voice-activated Sensor | In emergency circumstances, the gate can be opened on a reverse direction under a certain reverse force; also this will touch the alarm system. |
| 4.OEM Service | The standard length of the gate arm is 900mm, and we offer OEM service to our customers according to different requirements |
Standard functions & features of Swing Turnstiles Gate
| 1. | Infrared sensor to prevent pinch pedestrians. |
| 2. | Alarm function, in case of illegal intrusion and reverse intrusion. |
| 3. | Anti-breakthrough function. The gate is locked automatically until opening signal received. |
| 4. | Anti-trailing function, the turnstile will lock if someone wants to burst in without swiping the RFID card. |
| 5. | The whole system runs smoothly, long-life performance, high operation dependability and fast response. |
| 6. | Automatic reset function. If the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically. |
Adaptive Place
1. Office: Business Building, Government Office, Etc.;
2. Business Services: Supermarkets, Shopping Malls, Hotels, Clubs, Banks, Etc.;
3. Leisure And Entertainment Venues: Parks, Scenic Spots, Amusement Parks, Etc.
4. Transport Site: Bus Station, Railway Station, Subway Station, Airport And So On.
5. Science And Education Unit: Colleges And Universities, Research Institutes, Libraries, Etc.;
