Place of Origin:
China
Brand Name:
RONA
Certification:
CE / ISO9001
Model Number:
RNCF8008M

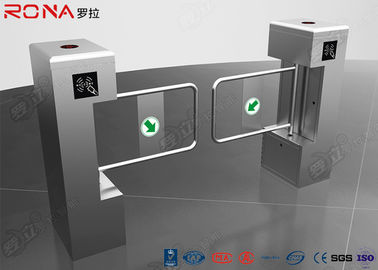

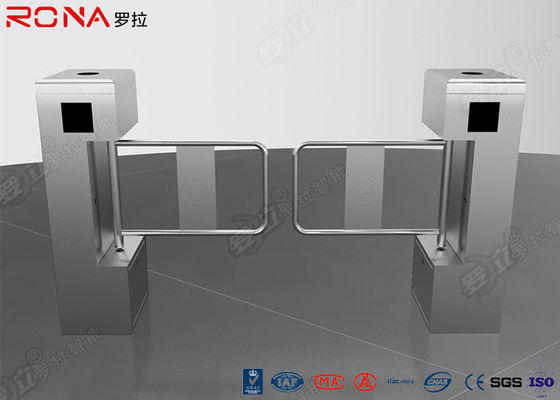

Waterproof Stainless Swing Gate Turnstiles Biometric System Access Control Entrance Barrier Gate
Technical Parameters
| Description | Parameters |
| Item Model | RNCF8008M |
| Service life | ≧5 million cycles |
| Drive voltage | DC24V 20W |
| Pass rate | 30 persons/minute |
| Open direction | Unidirectional and bidirectional (optional) |
| Opening time | 2~3S(adjustable) |
| Humidity | ≤90% coagulation free |
| Thickness of Housing | 2.0mm(optional) |
| Length of the arm | 230-900mm |
| Passage width | 500-1800mm |
| Swing arm work angle | 180° |
| Communication | TCP,IP,RS485 |
Product Description
| 1. Provided the function of automatical card collection, working efficiency can be improved. |
| 2. Available forms: Readable magnetic card, barcode, IC card. |
| 3. Quick barrier free passage control system, an ideal facility to achieve intelligent personnel access control, effectively solve the problem of the difficult access for persons with baggage and persons with disabilities, and the low traffic speed problem. |
| 4. Provided the function of self-diagnosis and alarm prompt, convenient for users to maintain and to use . |
| 5. With automatic reset function: after reading the card effectively, if the user does not pass in the specified time period, the system will automatically cancel the user's access rights. |
| 6. High compatibility. Compatible for the facilities and subassemblies of other brands. |
| 7. The control board equipped with functions of counting and memory. |
| 8. One-directional and bi-directional function: One-directional barrier only allow to pass in one direction. If a person enter from the other side, the alarm will prompt. The indicator light will change its color according to the card reading situations. The bi-directional barrier allow to pass from both sides. The former card reader is available. The people on other side can not read the card at the same time. |
Standard functions & features of Swing Turnstiles Gate
| 1. | Infrared sensor to prevent pinch pedestrians. |
| 2. | Alarm function, in case of illegal intrusion and reverse intrusion. |
| 3. | Anti-breakthrough function. The gate is locked automatically until opening signal received. |
| 4. | Anti-trailing function, the turnstile will lock if someone wants to burst in without swiping the RFID card. |
| 5. | The whole system runs smoothly, long-life performance, high operation dependability and fast response. |
| 6. | When power off, optical turnstile will open automatically, which is complying with fire safety requirements. |
| 7. | Automatic reset function. If the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically. |
Adaptive Place
1. Office: Business Building, Government Office, Etc.;
2. Business Services: Supermarkets, Shopping Malls, Hotels, Clubs, Banks, Etc.;
3. Leisure And Entertainment Venues: Parks, Scenic Spots, Amusement Parks, Etc.
4. Transport Site: Bus Station, Railway Station, Subway Station, Airport And So On.
5. Science And Education Unit: Colleges And Universities, Research Institutes, Libraries, Etc.;
