Single Pole Half Height Turnstile , Pedestrian Turnstile Gate With Card Reader

Single Pole Half Height Turnstile , Pedestrian Turnstile Gate With Card Reader

pedestrian security gates

pedestrian swing gate

Place of Origin:


Brand Name:



CE / ISO9001

Model Number:


Contact Us
Request A Quote
Product Details
Single Pole Pedestrian Swing Gate Turnstiles Barrier Rfid Card Reader Security Swing Gate
Swing Arm Material:
Acrylic / Tempered Glass
304 Grade Stainless Steel (2.0)
Swing Gate Turnstiles
Transit Speed:
30 People/min
Sliver / Customized
Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
Export Wooden Packing
Delivery Time
7-15 work days
Payment Terms
T/T, L/C,
Supply Ability
2000 units Per Month
Product Description


Single Pole Pedestrian Swing Gate turnstiles Barrier Rfid Card Reader Security Swing Gate


Description Parameters
Item Model RNCF7008L
Running time  ≧5 million
Drive voltage DC24V 20W
Pass rate 30 persons/minute
Open direction Unidirectional and bidirectional (optional)
Opening time 0.6S(adjustable)
Humidity ≤90% coagulation free
Thickness of Housing 2.0mm(optional)
Length of the arm 230-900mm
Passage width 500-1800mm
Swing arm work angle 180°
Communication TCP,IP,RS485





Product Description


1. Swing Turnstile gate is a device used for pedestrian channel entry/exit management. With quick openning, safety and convenient features, it is the ideal management equipment for pedestrian high frequency access.
2. The device housing are formed by inported SUS#304 stainless steel stamping, beautiful and generous shape, anti-rust, durable.
3. Standard electrical interface for external use, easily integrated with RFID card reader, barcode reader, fingerprint, face recognition, iris recognition etc.
4. Specially designed to meet the fire requirements of the function, convenient for people to evacuate in an emergency.
5. Optical Turnstiles are suit for elegant and luxury entrance solutions.



Standard functions & features of Swing Turnstiles Gate


1. Infrared sensor to prevent pinch pedestrians.
2. Alarm function, in case of illegal intrusion and reverse intrusion.
3. The whole system runs smoothly, long-life performance, high operation dependability and fast response.
4. Anti-breakthrough function. The gate is locked automatically until opening signal received.
5. Anti-trailing function, the turnstile will lock if someone wants to burst in without swiping the RFID card.
6. When power off, optical turnstile will open automatically, which is complying with fire safety requirements.
7. Automatic reset function. If the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.

Adaptive Place

1. Office: Business Building, Government Office, Etc.;
2. Science And Education Unit: Colleges And Universities, Research Institutes, Libraries, Etc.;
3. Business Services: Supermarkets, Shopping Malls, Hotels, Clubs, Banks, Etc.;
4. Leisure And Entertainment Venues: Parks, Scenic Spots, Amusement Parks, Etc.
5. Transport Site: Bus Station, Railway Station, Subway Station, Airport And So On.

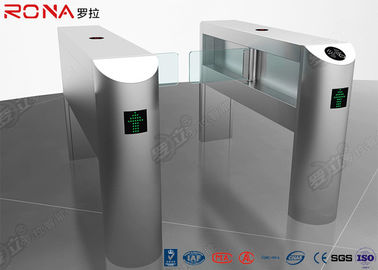

Single Pole Half Height Turnstile , Pedestrian Turnstile Gate With Card Reader 0

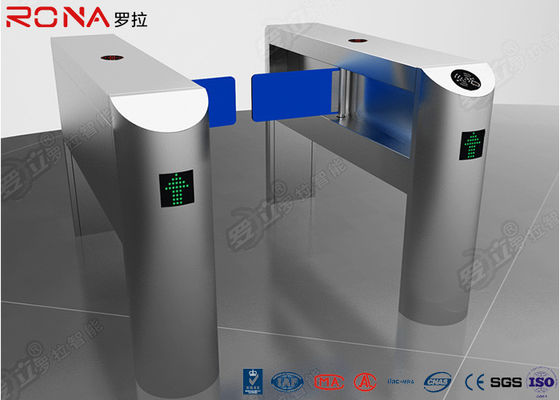

Single Pole Half Height Turnstile , Pedestrian Turnstile Gate With Card Reader 1
