Physically Challenged Gate Optical Flap Barrier Turnstile By Swiping Card RFID

Physically Challenged Gate Optical Flap Barrier Turnstile By Swiping Card RFID

glass swing gate

pedestrian swing gate

Place of Origin:

China

Brand Name:

RONA

Certification:

CE / ISO9001

Model Number:

RNCF6008L

Contact Us
Request A Quote
Product Details
Name:
Physically Challenged Gate Optical Swing Gate Turnstile By Swiping Card RFID
Size:
L1200*W250-300*H1020mm
Type:
Glass Swing Gate Turnstiles
Framework:
304 Grade Stainless Steel (2.0)
Swing Arm Material:
Acrylic / Tempered Glass
Transit Speed:
30 Persons/min
Color:
Sliver / Customized
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Export Wooden Packing
Delivery Time
7-15 work days
Payment Terms
T/T, L/C,
Supply Ability
2000 units Per Month
Product Description



Physically Challenged Gate Optical Swing Gate Turnstile By Swiping Card RFID



Description Parameters
Item / Model RNCF6008L
Running life  5 million
Drive voltage DC24V 20W
Pass Speed 30 persons/minute
Open direction Unidirectional and bidirectional (optional)
Opening time 0.6S(adjustable)
Humidity ≤90% coagulation free
Thickness of Housing 2.0mm
Length of the bar 230-900mm
Passage width 500-1800mm
Swing arm work angle 180°





Product Description



1. Optical turnstile is designed to control pedestrians entering or exiting restricted areas, usually used of high pedestrian traffic flow in both directions.
2. The body is made from brushed stainless steel which creates a seamless and elegant access point to blend into most indoor environment.
3. It can be integrated with any kind of access controller system (e.g.: RFID device, Push button, Fingerprint and Biometric device).
4. In case of emergency, the Optical Turnstile arm will open automatically to allow free passage.
5. Optical Turnstiles are suit for elegant and luxury entrance solutions.





Standard functions & features of Swing Turnstiles Gate



1. LED indicator.
2. Infrared sensor to prevent pinch pedestrians.
3. Alarm function, in case of illegal intrusion and reverse intrusion.
4. Anti-breakthrough function. The gate is locked automatically until opening signal received.
5. Anti-trailing function, the turnstile will lock if someone wants to burst in without swiping the RFID card.
6. When power off, optical turnstile will open automatically, which is complying with fire safety requirements.
7. The whole system runs smoothly, long-life performance, high operation dependability and fast response.
8. Automatic reset function. If the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.



Adaptive Place


1. Office: Business Building, Government Office, Etc.;
2. Science And Education Unit: Colleges And Universities, Research Institutes, Libraries, Etc.;
3. Business Services: Supermarkets, Shopping Malls, Hotels, Clubs, Banks, Etc.;
4. Leisure And Entertainment Venues: Parks, Scenic Spots, Amusement Parks, Etc.
5. Transport Site: Bus Station, Railway Station, Subway Station, Airport And So On.

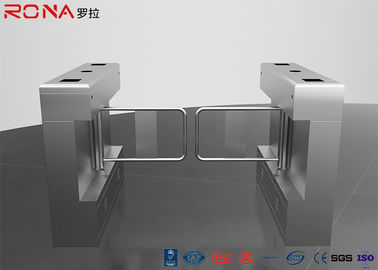

Physically Challenged Gate Optical Flap Barrier Turnstile By Swiping Card RFID 0

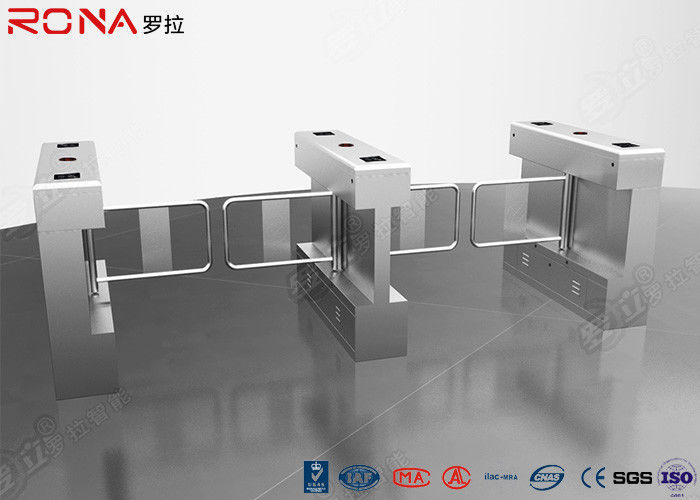

Physically Challenged Gate Optical Flap Barrier Turnstile By Swiping Card RFID 1
