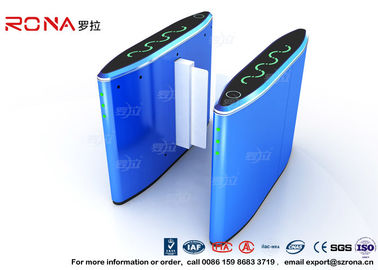

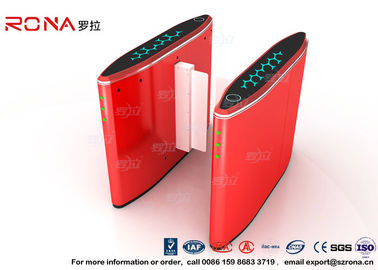

Sliding Gate Half Height Turnstiles Servo Motor 304 Stainless Steel Material

Sliding Gate Half Height Turnstiles Servo Motor 304 Stainless Steel Material

fastlane turnstiles

speedgate turnstile

304 stainless steel half height turnstiles

Place of Origin:


Brand Name:



CE / ISO9001

Model Number:

RNCF H1066 / RNCF H1066S

Contact Us
Request A Quote
Product Details
Framework Material:
304# Stainless Steel
1600L*230W*1020H Mm
Power Voltage:
AC220V±10%, 50Hz±10%
Driver Motor:
Servo Motor
Operation Temperature:
-10℃ ~ +70℃
Relative Humidity:
≤90% Not Condensed
Working Environment:
Indoor/Outdoor (with Rain-tent Cover)
Input Port:
Relay Dry Contact Signal
Payment & Shipping Terms
Minimum Order Quantity
1 unit
Packaging Details
carton and wooden packing
Delivery Time
7-15 working days
Payment Terms
Supply Ability
2000 units Per Month
Product Description

Half Height Turnstiles Sliding Gate Turnstiles With Servo Motor 304 Stainless Steel


SmartLane Sliding Gate Turnstile RNCF H1066


For people with reduced mobility or service personnel, SmartLane RNCF H1066 security turnstile proposes a wider passage with enhanced access control in one direction of passage and dissuasive in the other.


Main Benefits :

  • CE certified to ensure additional user safety

  • High-performance detection system to eliminate unauthorized use and false alarms

  • Streamlined and elegant oval design that integrates well into both prestigious lobbies yet robust enough for your harsh industrial environments


High throughput: up to 30 users/minute
Third generation of security entrance lanes based on 15 years of experience and over 10 million daily users
Long life cycle, low cost of ownership
Proven reliability: more than 1 000 lanes operating in demanding applications



Product Name Sliding Gate Turnstile
Model RNCF H1066 RNCF H1066S
Classifications Single-core mechanism Dual-core mechanism
Framework 304# Stainless Steel (default)
Thickness of ply 1.7mm
Finish brushed surface, polishing surface or anti-fingerprint surface (optional);
Size (L*W*H) 1600mm*230mm*1020mm
Material of flap aluminum
Stretching-out flap length 235mm
Height of Sliding Gate max of 900mm
Machine center Germany technological motor
Power voltage AC220V±10%, 50Hz±10%
Driver motor servo motor
Main-board voltage 12V DC
In-built Infrared 6 pairs/lane
Passing speed 30 persons/min
Passage Width 550mm
Opening / closing time 0.6 seconds
The time required to running state after power on 3 seconds
Automatic reset time after the failure 10 seconds
Mean time to failure min. 10 000 000
Operation temperature -10℃ ~ +70℃
Relative humidity less than 95% not condensed
Working Environment Indoor/Outdoor (with rain-tent cover)
Input port relay dry contact signal; +12V level signal or DC12V pulse signal
Communications port RS232/ RS485 electric standard, communications range≤1200m.
Warranty 12 months
Certificate CE


Applications :

The SmartLane RNCF H1066 models offer a complete solution, in that they are adapted to the mobility-impaired and are ideal for restricted sectors that are often subject to unauthorized use attempts or tailgating. The additional extension provides additional throughput control in the direction of passage. Typical customer segments include:


  • Banks and insurance companies

  • Government buildings and institutions

  • Office buildings, head offices, administrative sites

  • Schools, universities and colleges

  • Sensitive sites: military bases, nuclear plants, pharmaceutical companies, data centers

  • Industrial and manufacturing facilities

  • Airports, etc.
