Place of Origin:
China
Brand Name:
RONA
Certification:
CE / ISO9001
Model Number:
RNCF H8008-13

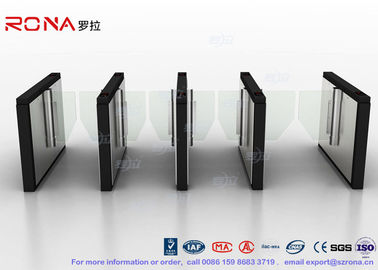

CE Approved Luxury Speed Gate Access Control System With 304 stainless steel
TECHNICAL DETAILS:
1. Rapid identification technique, available to identify accurately and efficiently the magnetic card, bar code card, ID card and IC card.
2. With normally open & normally closed working mode
3. Real time failure self-detect and alarm indication, ensuring system safe operation and facilitating maintenance and operation.
4. With direction indication, guiding passenger to entry and exit.
5. Automatic counting and displaying number of passenger, facilitating observation and with a displaying total amount as high as 90,000. (Optional)
6. Sound/light (Light is optional) alarm indication function, preventing illegal entry or irregular passing.
7. After the system power is cut off, the plate barrier starts the standby power to withdraw the barrier, so that the passage is ensured to be smooth and to divert the flow of passenger timely.
8. The infrared sensing technique realizes real time monitor of passage, safe protection and tail-proof.
9. The treatment mode in emergency or in special conditions.
10. Super strong combination capability, with the combined application of products of different passage types and series, not affecting the system performance.
11. Strong system expending capability, available to add new product at any time.
12. Far end control management: function to far end control of barrier mode, meeting the special requirements of the users and the fire protection.
SPECIFICATIONS:
|
Framework |
304# Stainless Steel (default), 201# or 316# Stainless Steel or paint (optional) |
|
Thickness of ply |
1.7mm |
|
Finish |
brushed surface, polishing surface |
|
Shell's size |
|
|
Swing arm material |
Tempered glass or Acrylic |
|
Stretching out swing length |
260mm~550mm |
|
The inductive card reader dimension |
equipped with the standard mounting brackets or tailor. |
|
Machine center |
Germany technological motor |
|
Power voltage |
AC220V±10%, 50Hz±10% |
|
Driver motor |
DC36 servo motor |
|
Main-board voltage |
12V DC |
|
In-built Infrared |
6 pairs/passageway |
|
Passing speed in normally |
40 persons/min |
|
Passing speed in normally closed mode |
35 persons/min |
|
Passage Width |
600mm ~1150mm |
|
Swing arm transmission angle |
180° |
|
Swinging direction |
unidirectional or bi-directional |
|
Opening / closing time |
0.1 seconds |
|
The time required to running state after power on |
3 seconds |
|
Automatic reset time after the failure |
1 seconds |
|
Mean time to failure |
min. 10 000 000 |
|
Operation temperature |
-10℃ ~ +70℃ |
|
Relative humidity |
less than 95% not condensed |
|
Working Environment |
Indoor/Outdoor (with rain-tent cover) |
|
Input port |
relay dry contact signal; +12V level signal, pulse width >100ms, DC12V pulse signal |
|
Communications port |
RS232/ RS485 electric standard, communications range ≤1200m. Available to connect with external CAN BUS and Ethernet |
APPLICATIONS:
Typical areas of application are: Employee and Visitor Access Control, Time & Attendance Integration, Loss Prevention, Government Facilities, Buildings, Banks, Museums and Airports, etc high-end places.
