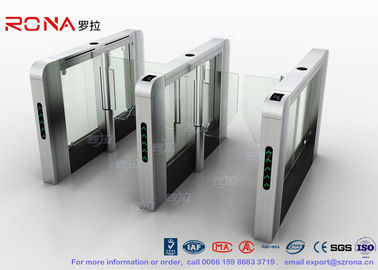

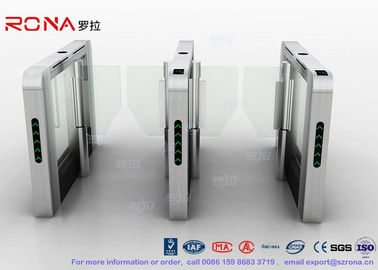

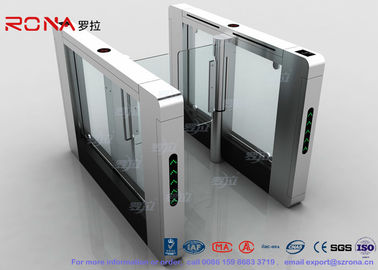

DC Servo Motor Speed Gate Turnstile Pedestrian Barrier 600mm-1200mm Passage Width

DC Servo Motor Speed Gate Turnstile Pedestrian Barrier 600mm-1200mm Passage Width

fastlane turnstiles

speedgate turnstile

polishing surface speed pedestrian barrier

Place of Origin:

China

Brand Name:

RONA

Certification:

CE / ISO9001

Model Number:

RNCF H8008-10

Contact Us
Request A Quote
Product Details
Materials:
304# Stainless Steel
Finish:
Brushed Surface/polishing Surface
Dimension:
1600mm*160mm*1000mm
Power Voltage:
AC220V±10%, 50Hz±10%
Driver Motor:
DC Servo Motor
Passing Speed:
40 Persons/min
Passage Width:
600mm~1200mm
Operation Temperature::
-10℃ ~ +70℃
Payment & Shipping Terms
Minimum Order Quantity
1 Lane
Price
negotiation
Packaging Details
carton and wooden packing
Delivery Time
7-15 working days
Payment Terms
T/T,
Supply Ability
2000 units Per Month
Product Description

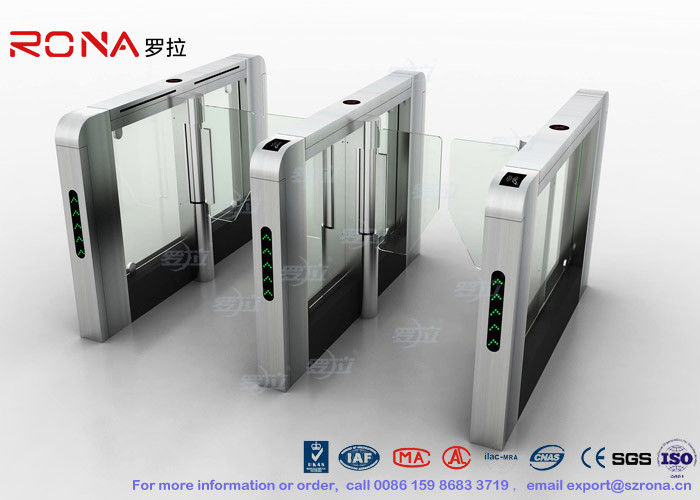

Access Control System DC Servo Motor Speed Gate Turnstile Pedestrian Barrier Gate of 304# Stainless Steel

PRODUCT DESCRIPTIONS:

The fastlane turnstile combines slim line styling with one of the industries widest passages. It has clear, bi-directional swinging motorized barrier panels and a stylish, architectural design that enhances any access control installation. Its sleek design and smaller footprint makes it compatible with any upscale business or institutional environment.



The fastlane turnstile controls pedestrian access between public and secure areas. The fastlane turnstile system is provided with a standard electric interface and can easily integrates the common 3rd party equipment with read/write facilities, such as access control system, time & attendance system, consumption system, ESD system and fare collection system, biometric systems (fingerprint & face recognition), bar-code scanner, Token/ID/IC card reader, coin collector and card collector, etc.



As a result, an orderly and civilized passage is provided for the personnel in and out, and illegal personnel can be barred. At the same time, a special fire control interface is equipped in the system to meet the requirement of fire control passage, so that a rapid down rod control may be realized in emergency for.



TECHNICAL DETAILS:

1. Rapid identification technique, available to identify accurately and efficiently the magnetic card, bar code card, ID card and IC card.

2. With normally open & normally closed working mode

3. Real time failure self-detect and alarm indication, ensuring system safe operation and facilitating maintenance and operation.

4. With direction indication, guiding passenger to entry and exit.

5. Automatic counting and displaying number of passenger, facilitating observation and with a displaying total amount as high as 90,000. (Optional)

6. Sound/light (Light is optional) alarm indication function, preventing illegal entry or irregular passing.

7. After the system power is cut off, the plate barrier starts the standby power to withdraw the barrier, so that the passage is ensured to be smooth and to divert the flow of passenger timely.

8. The infrared sensing technique realizes real time monitor of passage, safe protection and tail-proof.

9. The treatment mode in emergency or in special conditions.

10. Super strong combination capability, with the combined application of products of different passage types and series, not affecting the system performance.

11. Strong system expending capability, available to add new product at any time.

12. Far end control management: function to far end control of barrier mode, meeting the special requirements of the users and the fire protection.



SPECIFICATIONS:



Framework 304# Stainless Steel (default), 201# or 316# Stainless Steel or paint (optional)
Thickness of ply 1.7mm
Finish brushed surface, polishing surface
Shell's size (L*W*H) 1600mm*160mm*1000mm (default)
Swing arm material Tempered glass or Acrylic (optional)
Stretching out swing length 260mm~600mm
The inductive card reader dimension equipped with the standard mounting brackets or tailor.
Machine center Germany technological motor
Power voltage AC220V±10%, 50Hz±10%
Driver motor DC36 servo motor
Main-board voltage 12V DC
In-built Infrared 6 pairs/passageway
Passing speed in normally open mode 50 persons/min
Passing speed in normally closed mode 40 persons/min
Passage Width 600mm ~1200mm
Swing arm transmission angle 180°
Swinging direction unidirectional or bi-directional
Opening / closing time 0.1 seconds
The time required to running state after power on 3 seconds
Automatic reset time after the failure 1 seconds
Mean time to failure min. 5 000 000
Operation temperature -10℃ ~ +70℃
Relative humidity less than 95% not condensed
Working Environment Indoor/Outdoor (with rain-tent cover)
Input port relay dry contact signal; +12V level signal, pulse width >100ms, DC12V pulse signal
Communications port

RS232/ RS485 electric standard, communications range ≤1200m. Available to connect with external CAN BUS and Ethernet







APPLICATIONS:

Typical areas of application are: Employee and Visitor Access Control, Time & Attendance Integration, Loss Prevention, Government Facilities, Buildings, Banks, Museums and Airports, etc high-end places.
