Place of Origin:
China
Brand Name:
RONA
Certification:
CE / ISO9001
Model Number:
RNCF H8008-5
PRODUCT DESCRIPTIONS:

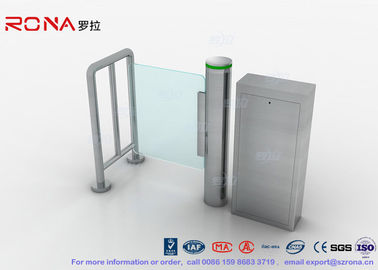

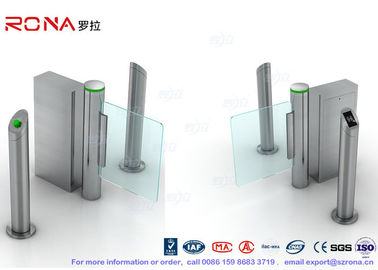

-> The RNCF H8008-5 luxury speed gate pursues a combination of artistic and modern elements, and it is very ideal for elegant location.
-> The luxury speed gate has a wide passage width to accomodate pedestrians, users with luggage or -> -> package and bicycles.
-> The luxury speed gate integrates machinery, electronics, microprocessor control and a variety of identification technologies, conveniently compatible with access control systems, barcode cards and biometric equipment.
-> The luxury speed gate provides a high level of security and high capacity by adopting reliable security protection devices, alarm devices, direction indicators etc.
STANDARD FEATURES & FUNCTIONS:
(1). Operation model: Both directions can be set as controlled mode or free mode.
(2). NO mode & NC mode can be switched over by users easily & freely.
(3). Tailgating-detection function.
(4). Intruding-alarm function.
(5). Delayed reset automatically function.
(6). Anti-pinch function: protection against finger entrapment and personal injury.
(7). Emergency-escape function: the gates will open automatically by pressing the emergency button which can be remote-controlled whether the power is on or off.
(8). With interface of relay switch (the dry contact signal or +12V electrical level signal or DC12V pulse signal of pulse width ≥ 100ms, driving current ≥ 10mA), compatible with all kinds of access controllers.
(9). Equipped with free control software for machine interface & control command SDK.
SPECIFICATIONS:
|
Framework |
304# Stainless Steel (default), 201# or 316# Stainless Steel or paint (optional) |
|
Thickness of ply |
1.7mm |
|
Finish |
brushed surface, polishing surface |
|
Shell's size (L*W*H) |
Φ141mm*H1005mm (default) |
|
Swing arm material |
Tempered glass or Acrylic (optional) |
|
Stretching out swing length |
260mm~600mm |
|
The inductive card reader dimension |
equipped with the standard mounting brackets or tailor. |
|
Machine center |
Germany technological motor |
|
Power voltage |
AC220V±10%, 50Hz±10% |
|
Driver motor |
DC36 servo motor |
|
Main-board voltage |
12V DC |
|
In-built Infrared |
6 pairs/passageway |
|
Passing speed in normally open mode |
50 persons/min |
|
Passing speed in normally closed mode |
40 persons/min |
|
Passage Width |
600mm |
|
Swing arm transmission angle |
180° |
|
Swinging direction |
unidirectional or bi-directional |
|
Opening / closing time |
0.1 seconds |
|
The time required to running state after power on |
3 seconds |
|
Automatic reset time after the failure |
1 seconds |
|
Mean time to failure |
min. 5 000 000 |
|
Operation temperature |
-10℃ ~ +70℃ |
|
Relative humidity |
less than 95% not condensed |
|
Working Environment |
Indoor/Outdoor (with rain-tent cover) |
|
Input port |
relay dry contact signal; +12V level signal, pulse width >100ms, DC12V pulse signal |
|
Communications port |
RS232/ RS485 electric standard, communications range ≤1200m. Available to connect with external CAN BUS and Ethernet |
APPLICATIONS:
Typical areas of application are: Government Facilities, Corporate Lobbies, Buildings, Banks, Hotel, Super market, Park, Building Sites, Museums and Retail outlets etc.
