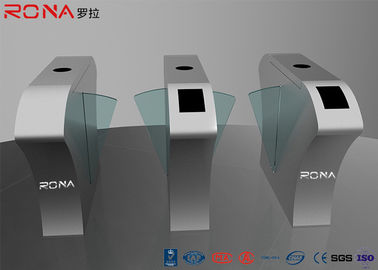

RONA Security Solutions Access Control Automatic Flap Turnstile Barrier Gate

Name: RONA Security Solutions Access Control Automatic Flap Turnstile Barrier Gate
Brand: Shenzhen Rona Intelligent Technology Co., Ltd
SKU: RNCF2088
Availability: InStock

Brand Name:	RONA
Model Number:	RNCF2088
MOQ:	1 unit
Price:	negotiation
Delivery Time:	7-15 working days
Payment Terms:	T/T,

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE / ISO9001

Product Name:

RONA Security Solutions Access Control Stainless Steel Optical Flap Barrier Turnstile Gate

Size:

L1400mm*W300mm*H900mm

Material Of Flap:

Acrylic/Glass

Passage Width:

550mm

Mean Time To Failure:

≧ 5 Million

Communications Port::

RS485,distance=1200m

Materials:

304 Stainless Steel & Stoving Varnish

Direction:

Single And Bi-directional

Pass Speed:

40 Persons/min

Tine To Opean And Close Gate:

0.6 Seconds

Packaging Details:

carton and wooden packing

Supply Ability:

2000 units Per Month

Highlight:

security turnstiles

security barrier gate

Product Description

RONA Security Solutions Access Control Automatic Flap Turnstile Barrier Gate

Tenical Parameters

Description	Parameters
Item / Model	RNCF2088
Running life	No more than 5 millions
Drive voltage	DC24V 20W
Pass Speed	not more than 30 persons/minute
Open direction	Unidirectional and bidirectional (optional)
Opening time	0.6S/It is adjustable
Humidity	≤90% coagulation free
Thickness of Housing	2.0mm
Input port	relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal
Working Environment	indoor/out(with tent over)-10°C~70°C

Product Description

1. Illegal Alarm Function	Break-in ,tail ,over-pass and reverse alert function in order to keep orderliness and effective manage
2. Anti-pinch function	Barriers auto open when power shut, insure user safety
3. Housing	Turned up-coverage is water-proof and easy maintain
4. Emergency-escape function	The obstacles will open automatically by pressing the emergency button which can be remote-controlled whether the power is on or not
5.Standard input/output port	Meanwhile leaving a port space for installing RS485 communication, connect and manage the integrated systems through the remote PC
6. Direction	Big direction arrow plate to show passage condition

Standard functions & features of Flap Turnstiles Gate

1) Rapid identification technique, available to identify accurately and efficiently the magnetic card, bar code card, ID card and IC card.

2) DC Brushless Motor, Maintenance Free

3) On-line or off –line mode(optional)

4) Real time trouble self-detect and alarm indication, ensuring system safe operation and facilitating maintenance and operation

5) With direction indication, guiding passenger to entry and exit.

6) Self automatic locking to prevent forcedly passing without the card

7) Automatic counting and displaying number of passenger, facilitating observation and with a displaying total amount as high as 90,000

8) Light and sound alarm indication function, preventing illegal entry or irregular passing

Extend Functions

The flap turnstile system is provided with a standard electric interface and can easily integrates the common 3rd party equipment with read/write facilities.

1.	access control system
2.	bar-code scanner
3.	Token /ID/IC card reader
4.	time & attendance system
5.	coin collector
6.	card collector
7.	consumption system
8.	ESD system and fare collection system
9.	biometric systems (fingerprint & face recognition)

RONA Security Solutions Access Control Automatic Flap Turnstile Barrier Gate 0
