Self Test Function Tripod Security Gates Stainless Steel 25~30 Persons/Min

Name: Self Test Function Tripod Security Gates Stainless Steel 25~30 Persons/Min
Brand: Shenzhen Rona Intelligent Technology Co., Ltd
SKU: RNCF 838
Availability: InStock

Brand Name:	RONA
Model Number:	RNCF 838
MOQ:	1 Lane
Price:	negotiation
Delivery Time:	7-15 working days
Payment Terms:	T/T,

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE / ISO9001

Materials:

304# Stainless Steel

Finish:

Brushed /polishing Surface

Driver Motor:

Brush DC Motor

Passing Speed:

25~30 Persons/min

Passage Width:

550mm

Net Weight:

55KG

Name:

Tripod Turnstile Gate

Packaging Details:

carton and wooden packing

Supply Ability:

2000 units Per Month

Highlight:

Self Test Tripod Security Gates

Polishing Surface Tripod Security Gates

Anti Rust Tripod Security Gates

Product Description

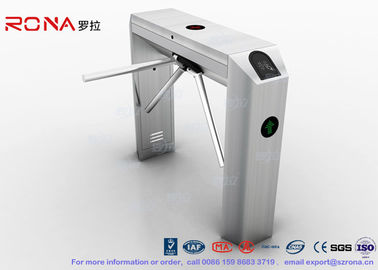

Self-Test Function Tripod Turnstile Gate Stainless Steel 25~30 Persons/Min

SPECIFICATIONS of waist height turnstile

Long-life performance, high operation dependability and fast response.
The whole system runs smoothly, low noise, no mechanical impact.
Self-test function, when power on, system restoration automatic.
Single directional or Bi-directional is selectable.
LED indicator.
Automatic reset function: when tripod turnstile receives an open single, but passenger do not pass through the hallway within a specific time (default 5s), turnstile arm will lock automatically.
When power off, tripod turnstile arms will drop down automatically, which is complying with fire safety requirements.

Model	RNCF-838
Voltage	AC 220V/110V±10%
Frequency	50/60Hz
Current	3A
Control circuit:	DC24V
Power consumption	40W
Working temperature	-20°C~60°C
Working humidity	0~95%RH
Protection grade	IP44
Arm length	500mm
Arm diameter	38mm

Self Test Function Tripod Security Gates Stainless Steel 25~30 Persons/Min 0

Functions and Features of the sliding gates :

1. Problem-self-checking function.

2. Many options of working ways: bi-direction card reading; one direction card reading and another no reading; one direction card reading and another freely. And single direction photocell controlled passing and close. Working ways can be set in the control panel.

3. When power off, arm open automatically and power on again, arm will be held automatically.

4. When valid card read and passenger passed, arm can be delayed to close from 1-60s which can be set in the control panel.

5. Auto-reposition function: After card read, passenger not pass within regulated time period, full-height turnstile will cancel this passing right. And the regulated time period for passing can be set by managers.

6. If passenger pass without card read or valid card read, flap barrier will alarm untill passenger get back from the flap barrier and then take a valid card to be read for passing.

7. Flap barrier is with 485 interface for long-distrance control concern.

8. Anti-rush function: if there is no open single, arm will be holding tightly.
