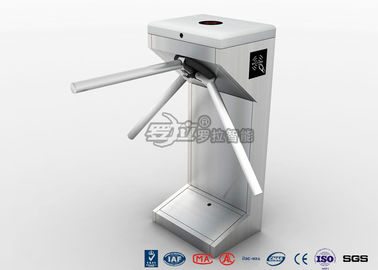

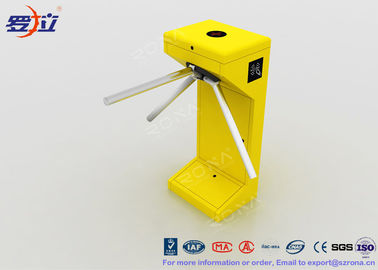

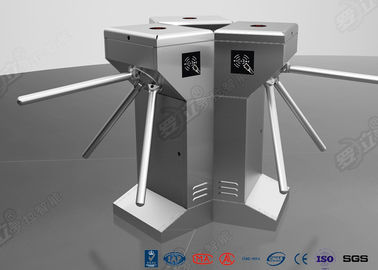

Full Height Entrance Mechanical Tripod Turnstile Gate Stainless Steel RFID Coin

Full Height Entrance Mechanical Tripod Turnstile Gate Stainless Steel RFID Coin

  • Full Height Entrance Mechanical Tripod Turnstile Gate Stainless Steel RFID Coin
  • Full Height Entrance Mechanical Tripod Turnstile Gate Stainless Steel RFID Coin
  • Full Height Entrance Mechanical Tripod Turnstile Gate Stainless Steel RFID Coin
Full Height Entrance Mechanical Tripod Turnstile Gate Stainless Steel RFID Coin
Product Details:
Place of Origin: China
Brand Name: RONA
Certification: CE / ISO9001
Model Number: RNCF238
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: carton and wooden packing
Delivery Time: 7-15 working days
Payment Terms: T/T,
Supply Ability: 2000 units Per Month
Contact Now
Detailed Product Description
Framework Material: 304# Stainless Steel Dimension(L*W*H): 420mm*330mm*990mm
Passage Width: 550mm MTBF: 5 Million
Operation Environment: Indoor Or Outdoor Operation Temperature:: -10℃ ~ 70℃
Relative Humidity: ≤95% Not Condensed Warranty: 1 Year
High Light:

pedestrian turnstile gate

,

tripod access system

Full Height Entrance Mechanical Tripod Turnstile Gate Stainless Steel RFID Coin





PRODUCT CLASSIFICATIONS:
Semi-Automatic Type: When power off, it will be dropped the arm to the request of fire protection. When the power is on again, the arms can also lift by hand. Once an open signal is given, it need to manual push the arm to rotate.


APPLICATIONS:
Typical areas of application are: Employee and Visitor Access Control, Time & Attendance Integration, Loss Prevention, Government Facilities, Corporate Lobbies, Buildings, Banks, Hotel, Super market, Park, Building Sites, Museums, Retail outlets, Railway Terminals and Airports etc.


STANDARD FEATURES & FUNCTIONS:

(1) Running stablely without noise and mechanical impact

(2) The passing person number of the persons can be set

(3) Several ways of working molds for your demand chosen

(4) Bi-direction, or one direction permitted, one forbidden, or one direction charged, one for free, and all the working molds set by the buttons in the main control board

(5) Beam falling and lifting can be controlled in far distance so to satisfy the special requirement of the users and the request of fire protection.

(6) Direction-guide lights in the turnstile to tell you whether the direction to go or not

(7) The standard electrical interface connected with various kinds of reader and writer equipment

(8) All the functions realized in one integration machine and controlled and managed by the computer in the far distance
(9) The number of the persons passed by can be counted automatically which can also be displayed in LED
(10) Beam can be lifted and fall when power is cut-off

(11) The function with or without card-reading memory cab be set according to your demand.
(12) Self-check and alarm for convenienting to operate



Full Height Entrance Mechanical Tripod Turnstile Gate Stainless Steel RFID Coin 0


TECHNICAL SPECIFICATIONS:

Framework:

304# Stainless Steel(default), 316# Stainless Steel or Paint (optional)

Thickness of ply:

1.3mm (default)

Finish:

① stainless steel surface: brushed surface, polishing surface (default) or anti-fingerprint surface (optional); ② painted surface: any color surface or anti-fingerprint surface (optional)

Dimension(L*W*H):

420mm*330mm*990mm (default)

Arm material:

Steel

Arm length:

500mm

Arm diameter:

38mm

The maximum tolerance of the pole:

80Kg

Working driving force of the pole:

3Kg

Read facilities mounting:

may be mounted on the surface of turnstile, or flush mounted, or rack mounting. There is an output to interlock the Read/write facility.

Power voltage:

AC220V±10%, 50Hz±10%

Work movement:

Germany technology electromagnetic valve

Semi-automatic type:

In-built hydraulic shock absorber

Main-board voltage:

12V DC

Passage Width:

550mm

Passing speed in normally open mode:

30~40 persons/min

Passing speed in normally closed mode:

25~30 persons/min

Time of opening / closing:

0.2 seconds

The time required to running state after power on:

5 seconds

MTBF:

550mm

Operation Temperature:

-10℃ ~ 70℃

Relative humidity:

≤95% not condensed

Operation environment:

Indoor/Outdoor

Input port:

relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal

Communications port:

RS232/RS485 electric standard, communications range: ≤1200m. Available to connect with external CAN BUS and Ethernet

Certification:

CE

Warranty:

12 months

Net weight:

37KGS



Full Height Entrance Mechanical Tripod Turnstile Gate Stainless Steel RFID Coin 1
