Waist Height Drop Arm Turnstile AC240V Stainless Steel For Supermarket Entrance

Name: Waist Height Drop Arm Turnstile AC240V Stainless Steel For Supermarket Entrance
Brand: Shenzhen Rona Intelligent Technology Co., Ltd
SKU: RNCFH 8008-28
Availability: InStock

Brand Name:	RONA
Model Number:	RNCFH 8008-28
MOQ:	1 Unit
Price:	Negotiation
Delivery Time:	7-15 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/ISO9001

Material:

304 Stainless Steel

Pass Rate:

35 Persons/Min

Power Supply:

100-240V(AC)

Operational Voltage:

24V(DC)

Max Power Consumption:

60W

Working Temperature:

-25 To +70 ℃

Unlock Time:

0.2S

Packaging Details:

Carton and Wooden Packing

Supply Ability:

2000 Unit Per Month

Highlight:

Drop Arm Turnstiles, Security Entrance Systems

Product Description

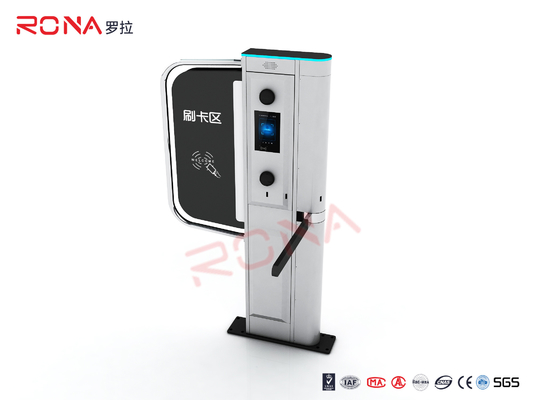

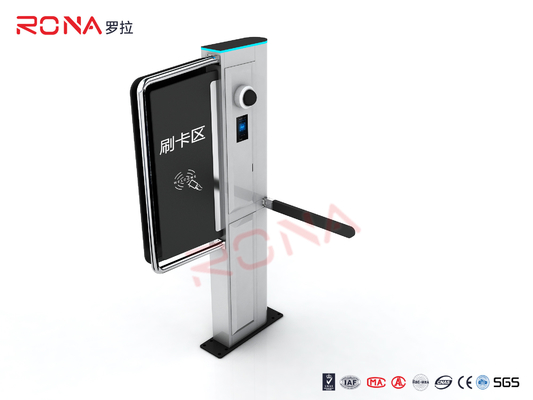

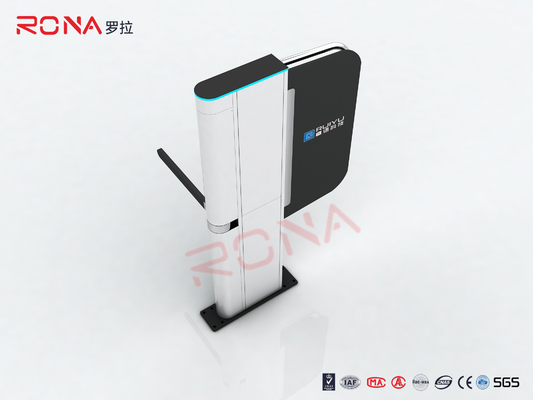

AC240V Stainless Steel Waist Height Drop Arm Turnstile For Supermarket Entrance

Product Desctiption

Use IC cards, ID card, bar code as automatic identification system.
A direction indicator to guide pedestrians correct and smooth passage.
Auto reset function, if no passing during identified card-reading time, the system will reset automatically, and passengers are prohibited to pass until their second identified reading.
Support a variety of permissions control equipment, but also with anti - tag anti - clip and other functions.
There is no mechanical collision during the operation of the swing brake, and the noise is relatively small.
The plasticity of appearance form is the strongest in all the brake, the material of the arresting body is rich, the shape of the box body is also diverse, easy to design a very beautiful shape, suitable for the occasion of high requirements for beauty.

Operating Modes:

Single passage in the set direction
Bi-directional single passage
Free passage in the set direction
Always free or locked

Parameters

Model No: RNCFH 8008-28

Material 1.2mm SUS304 Hairline

Passage Width 550mm

Passage direction Single directional/Bi-directional

Passing rate 30-35 persons/minute

Operating time 0.2 seconds

Power input AC100-240V,50/60HZ

Working voltage 24V

Working humidity 30%~95%

Working temperature -40℃~+70℃

Working environment Indoor/outdoor

Communication interface RS485, Dry contact

Mechanism Brushless motor

MCBF 5 million Cycles

Application Office, Hotels, Commercial buldings, etc
