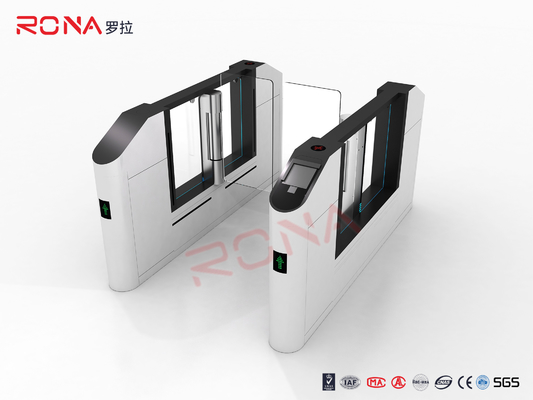

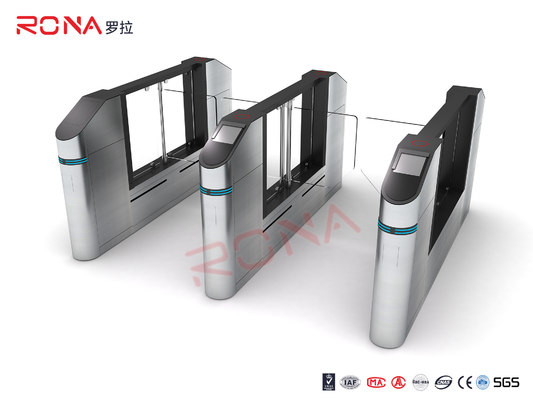

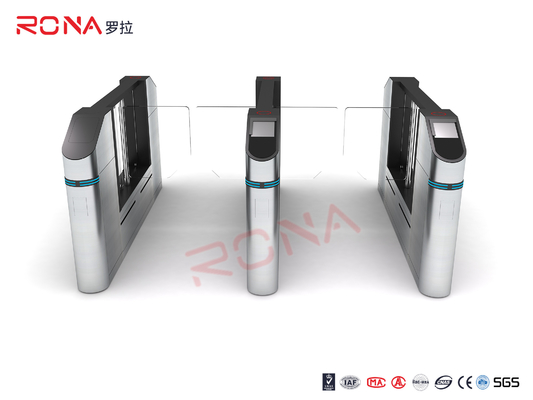

Width 600-900mm 240V Pedestrian Turnstile Gate Fast Speed 0.2s Dry Contact

Width 600-900mm 240V Pedestrian Turnstile Gate Fast Speed 0.2s Dry Contact

900mm Pedestrian Turnstile Gate

240V Pedestrian Turnstile Gate

Dry Contact Pedestrian Turnstile Gate

Place of Origin:

China

Brand Name:

RONA

Certification:

CE/ISO9001

Model Number:

RNCF 8008-9

Contact Us
Request A Quote
Product Details
Product Size:
1600mm*200mm*980mm
Type:
Speed Gate Turnstile
Power Supply:
AC220±10%,50/60Hz
Pass Rate:
30-35 Persons/minute
Unlock Time:
0.2s
Working Environment:
Indoor/out Door
Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
negotiation
Packaging Details
carton and wooden packing
Delivery Time
7-15 work days
Payment Terms
T/T
Supply Ability
2000 unit per month
Product Description

Width 600-900mm 240V Pedestrian Gate Fast Speed 0.2s Dry Contact With Rfid Card Reader



Brief Introduction

  • Tailgating detection
  • Smooth, swinging-motion glass barriers
  • Slim, V-shaped, tapered cabinets with ergonomic design and small footprint
  • Flexible lane configurations



Features

  • High secure level and widely applications. They are widely used in Supermarket, shopping malls, Library,Hospital ,Goverment authority,etc.
  • Anti-bump, Anti clip,anti-tailgating,anti-intrusion.During operation if the swing arm meets any resistance, it will stop immediately. After pre set time, the arm will return to close position.This function effectively prevents pedestrian especially children from bumping, clipping,striking,etc. Illegal pass like intrusion, Tailgating,piggyback,etc will be detected and prohibitted.
  • Easy installation and free maintenance.
  • More intelligent. self-examing and pre-set time operations allow our speed gates turnstile more intelligent and convenient in working. If there is no passing through in pre-set time, it will return to close status. When in fire or power failure, the door will open automatically.
  • Multiple access control .Our speed gate turnstile is compatible with international standard RS485 Intereface. This enablles its widely accomodating to all prevailing softwares in industry and supports almost all types of access control like RFID cards,Bar codes, Biometric ,etc.
  • Bi directional passing through and high passing effeciency. Bi-directional passing through reduces the need for more gates. High passing speed and accomodation for wheel Chair, strollers,etc increase the passing effeciency.





Product advantage

Width 600-900mm 240V Pedestrian Turnstile Gate Fast Speed 0.2s Dry Contact 0





Parameters

Housing Material: 304 stainless steel
Size: 1600mm*200mm*980mm
Swing direction: one-way or two-way(can be set)
Operating voltage: AC220 ±10% V/50 ±10% HZ 50W
Drive motor: DC24V DC brushless motor
Input interface: Relay dry contact signal or 12V pulse signal with pulse width ≥100ms, drive current ≥10mA
Communication interface: RS232 MODBUS protocol
Passing speed: 40 people / minute (normally open), 25-30 people / minute (normally closed)
Gate opening and closing time: 1-2 seconds
Time required to enter the traffic state after power-on: 3 seconds
Automatic reset time after failure: 10 seconds
Working 13.environment: indoor, outdoor (shade)





Width 600-900mm 240V Pedestrian Turnstile Gate Fast Speed 0.2s Dry Contact 1



Width 600-900mm 240V Pedestrian Turnstile Gate Fast Speed 0.2s Dry Contact 2
