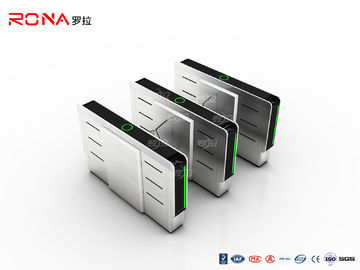

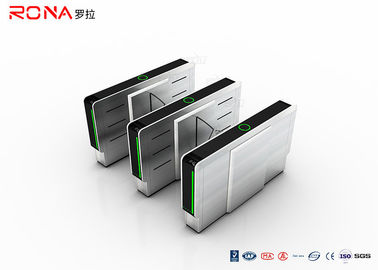

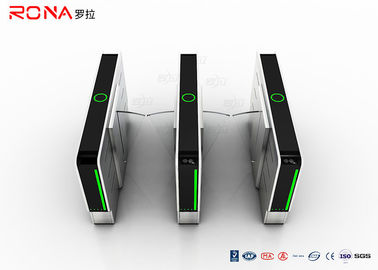

Acrylic Flap Barrier Gate IC Card Fingerprint Pedestrian Office Security System

Acrylic Flap Barrier Gate IC Card Fingerprint Pedestrian Office Security System

electronic turnstiles

security barrier gate

Place of Origin:

China

Brand Name:

RONA

Certification:

CE / ISO9001

Model Number:

RNCF H7088

Contact Us
Request A Quote
Product Details
Product Name:
Flap Barrier Gate Speed Gate IC Card Fingerprint Pedestrian Office Security System
Material Of Flap:
Acrylic
Mean Time To Failure:
>500million
Communication Interface:
RS485
Housing Material:
304 Stainless Steel&stoving Varnish
Color:
Silver
Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
Negotiation
Packaging Details
carton and wooden packing
Delivery Time
7-15 working days
Payment Terms
T/T,
Supply Ability
2000 units Per Month
Product Description





https://youtu.be/igzdTx5BQsMFlap Barrier Gate Speed Gate IC Card Fingerprint Pedestrian Office Security system





Tenical Parameters



Description Parameters
Item / Model RNCF H7088
Running life 5 millions
Drive voltage DC24V 20W
Pass Speed 25-30 persons(Normal close),35-40persons(Normal open)
Open direction Unidirectional and bi-directional (optional)
Opening time 0.6S (adjustable)
Color Silver
Thickness of Housing 2.0mm
Input port relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal





Product Description



Intelligence flap barrier (block gate) is product with intelligent management of high-tech mainly for staff access. Flap barrier is upgrade of intelligent tripod turnstiles and swing gates.The product with precision processed, complete function and high quality, mainly used in high-end residential, intelligent buildings, hotels, subway, pier, clubs and other places. Our turnstiles are used in applications including stadiums and arenas, perimeter and interior security, recreation and amusement parks, retail crowd control.





Standard Functions & Features of Servo Flap Turnstiles Gate





1) When out of power, the turnstile open automatically without storage battery.

2) DC Brushless Motor, Maintenance Free.

3) With direction indication, guiding passenger to entry and exit.

4) Self automatic locking to prevent forcedly passing without the card

5) Light and sound alarm indication function, preventing illegal entry or irregular passing

6) Rapid identification technique, available to identify accurately and efficiently the magnetic card, bar code card, ID card and IC card.

7) Automatic counting and displaying number of passenger, facilitating observation and with a displaying total amount as high as 90,000







Extend Functions



The flap turnstile system is provided with a standard electric interface and can easily integrates the common 3rd party equipment with read/write facilities.




1. access control system
2. bar-code scanner
3. Token /ID/IC card reader
4. time & attendance system
5. coin collector
6. card collector
7. consumption system
8. ESD system and fare collection system
9. biometric systems (fingerprint & face recognition)


Production line for flap barrier gate
Acrylic Flap Barrier Gate IC Card Fingerprint Pedestrian Office Security System 0



New Project Case for university

Acrylic Flap Barrier Gate IC Card Fingerprint Pedestrian Office Security System 1





Export wooden box for package

Acrylic Flap Barrier Gate IC Card Fingerprint Pedestrian Office Security System 2
