RONA 2 Lanes Flap Barrier Gate with 40 Persons/Min Pass Speed, 304 Stainless Steel Construction, and Bi-directional Access Control

Name: RONA 2 Lanes Flap Barrier Gate with 40 Persons/Min Pass Speed, 304 Stainless Steel Construction, and Bi-directional Access Control
Brand: Shenzhen Rona Intelligent Technology Co., Ltd
SKU: RNCF2088
Availability: InStock

Brand Name:	RONA
Model Number:	RNCF2088
MOQ:	1 unit
Price:	negotiation
Delivery Time:	7-15 working days
Payment Terms:	T/T,

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE / ISO9001

Product Name:

RONA 2 Lanes Security Automatic Flap Turnstile Barrier Gate Security Solutions Access Control

Size:

L1400mm*W300mm*H900mm

Material Of Flap:

Red Soft Flapper

Passage Width:

550mm

Mean Time To Failure:

≧ 5 Million

Communications Port::

RS485,distance=1200m

Materials:

304 Stainless Steel & Stoving Varnish

Direction:

Single And Bi-directional

Pass Speed:

40 Persons/min

Tine To Opean And Close Gate:

0.6 Seconds

Packaging Details:

carton and wooden packing

Supply Ability:

2000 units Per Month

Highlight:

security barrier gate

security turnstiles

Product Description

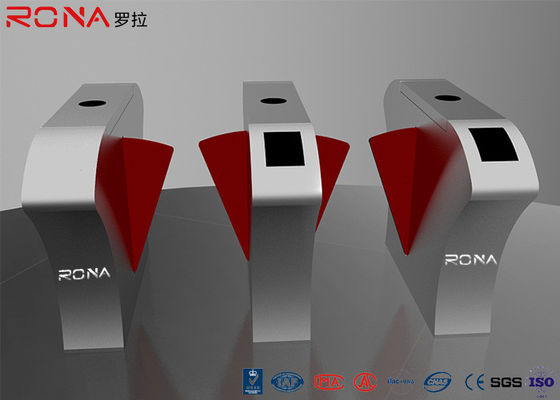

RONA 2 Lanes Flap Barrier Gate Security Solutions Access Control

High-performance automatic flap turnstile barrier gate with capacity of 40 persons per minute, designed for robust security access control applications.

Technical Specifications

Description	Parameters
Item / Model	RNCF2088
Running Life	≤ 5 million cycles
Drive Voltage	DC24V 20W
Pass Speed	≤ 30 persons/minute
Open Direction	Unidirectional and bidirectional (optional)
Opening Time	0.6S (adjustable)
Humidity	≤90% non-condensing
Housing Thickness	2.0mm
Input Port	Relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal
Working Environment	Indoor/Outdoor (with tent) -10°C to 70°C

Product Features

Illegal Alarm Function: Break-in, tailgating, over-pass and reverse alert functions for orderly and effective management
Anti-pinch Safety: Barriers automatically open during power shutdown to ensure user safety
Durable Housing: Water-proof turned-up coverage design for easy maintenance
Emergency Escape Function: Obstacles open automatically via emergency button (remote-controlled capability)
Standard I/O Ports: Includes RS485 communication port for integrated system management via remote PC
Clear Direction Indicators: Large direction arrow plates display passage conditions

Standard Functions & Features

Rapid identification technology for magnetic cards, bar code cards, ID cards, and IC cards
DC Brushless Motor - maintenance-free operation
Optional online or offline operation modes
Real-time self-diagnosis and alarm indication for safe operation and easy maintenance
Direction indication to guide passenger entry and exit
Automatic locking prevents forced passage without valid card
Automatic passenger counting with display capacity up to 90,000
Light and sound alarm indications prevent illegal entry or irregular passing

Extended Integration Capabilities

The flap turnstile system features standard electric interfaces for seamless integration with third-party equipment including:

Access control systems
Bar-code scanners
Token/ID/IC card readers
Time & attendance systems
Coin collectors
Card collectors
Consumption systems
ESD systems and fare collection systems
Biometric systems (fingerprint & face recognition)

Tags:

security barrier gate

electronic turnstiles

security turnstiles

DC24V Brushless Motor Flap Barrier Gate Waist Height Turnstiles 550mm Passage Width
