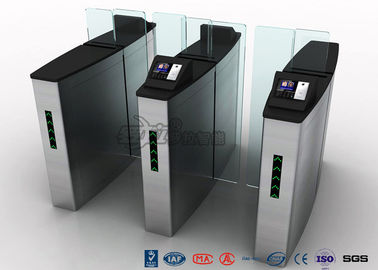

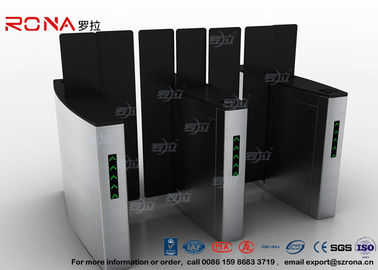

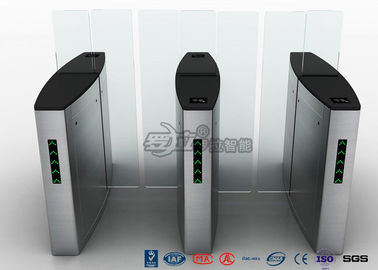

Access Control Turnstile Security Gates Tempered Glass Sliding Material

    • Access Control Turnstile Security Gates Tempered Glass Sliding Material
    • Access Control Turnstile Security Gates Tempered Glass Sliding Material
    • Access Control Turnstile Security Gates Tempered Glass Sliding Material
  • Access Control Turnstile Security Gates Tempered Glass Sliding Material

    Product Details:

    Place of Origin: China
    Brand Name: RONA
    Certification: CE / ISO9001
    Model Number: RNCF8066-2 / RNCF8066-2S

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: negotiation
    Packaging Details: carton and wooden packing
    Delivery Time: 7-15 working days
    Payment Terms: T/T, Western Union
    Supply Ability: 2000 units Per Month
    Contact Now
    Detailed Product Description
    Framework Material: 304# Stainless Steel Dimension: 1400L*310W*1000H Mm
    Material Of Sliding: Tempered Glass Height Of Sliding Gate: Max Of 1500mm
    Power Voltage: AC220V±10%, 50Hz±10% Working Environment: Indoor/Outdoor (with Rain-tent Cover)
    Input Port: Relay Dry Contact Signal; +12V Level Signal And Pulse Width >100ms, DC12V Pulse Signal Communications Port: RS232/ RS485

    304 Stainless Steel Access Control Sliding Gate Turnstile / Turnstile Barrier Gate with CE Approved



    PRODUCT CLASSIFICATIONS:

    It may be divided according to the combination type of core mechanism: single-core mechanism and dual-core mechanism.



    -> Single-core mechanism: RNCF8066-2

    The sliding barrier only equipped with single-core in the cabinet as shown in Fig.1, usually be used in single lane or multi-lane applications.

    -> Dual-core mechanism: RNCF8066-2S

    The sliding barrier equipped with independent dual-core in the cabinet as shown in Fig.2, usually be used in multi-lane applications.



    TECHNICAL SPECIFICATIONS:

    Product Name

    Sliding Gate Turnstile

    Model

    RNCF8066-2

    RNCF8066-2S

    Classifications

    Single-core mechanism

    Dual-core mechanism

    Framework

    304# Stainless Steel (default)

    Thickness of ply

    1.7mm

    Finish

    brushed surface, polishing surface or anti-fingerprint surface (optional);

    Size (L*W*H)

    1400mm*310mm*1000mm (default)

    Material of flap

    Tempered glass

    Stretching-out flap length

    230~235mm

    Height of Sliding Gate

    max of 1500mm (optional)

    Machine center

    Germany technological motor

    Power voltage

    AC220V±10%, 50Hz±10%

    Driver motor

    DC brush motor

    Main-board voltage

    12V DC

    In-built Infrared

    6 pairs/lane

    Passing speed

    30 persons/min

    Passage Width

    550mm

    Opening / closing time

    0.6 seconds

    The time required to running state after power on

    3 seconds

    Automatic reset time after the failure

    10 seconds

    Mean time to failure

    min. 5 000 000

    Operation temperature

    -10℃ ~ +70℃

    Relative humidity

    less than 95% not condensed

    Working Environment

    Indoor/Outdoor (with rain-tent cover)

    Input port

    relay dry contact signal; +12V level signal or DC12V pulse signal

    Communications port

    RS232/ RS485 electric standard, communications range≤1200m.

    Warranty

    12 months

    Certificate

    CE





    PRODUCT DESCRIPTIONS:

    The retractable sliding gate turnstile controls pedestrian access between public and secure areas. The turnstile lane uses an array of optical sensors to determine the number and direction of persons passing through the lane. The turnstile uses a retractable sliding gate to block the pedestrian’s path.



    The sliding turnstile system is provided with a standard electric interface and can easily integrates the common 3rd party equipment with read/write facilities, such as access control system, bar-code scanner, Token /ID/IC card reader, time & attendance system, coin collector, card collector, biometric systems (fingerprint & face recognition), consumption system, ESD system and fare collection system, etc.



    STANDARD FEATURES & FUNCTIONS:

    • -> Obstacle safety detection with audible alarm, to convenient for users to maintain and use.

    • -> The running status of device can be set up through pressing the built-in small keyboard of the main control board.

    • -> With a variety of operating models and functions, it can be programmed to be bi-directional access, or exit by sensors.

    • -> Equipped with infrared photo beam sensors, mechanical double anti-folding feature, effectively protects against pedestrian accidents / injuries.

    • -> Reset automatically, anti-tail, anti-reverse intrusion, dual anti-pinch and stop unauthorized access.

    • -> Acoustic signal for announcement of unauthorised use.

    • -> Barrier locked in closed position to prevent force intrusion, until a valid access control signal is received.

    • -> Time out reclosing feature, if never detect anyone pass thru the barrier, will auto reclose at defined value. The standard default is 10 seconds. (1 to 60 second adjustable);

    • -> Emergency-escape function: When power failure, barrier will auto open to meet the request of fire protection. Also barrier will open by pressing the emergency button which can be remote-controlled whether the power is on or not. (Optional).

    • -> Standard fire alarm input interface, requires N.C normally close contact.

    • -> The turnstile system can easily integrates with the 3rd party equipment with read facilities, such as biometric reader, consumption system, ESD system and access control system etc.

    • -> The turnstile system can be hooked up with multiple reader equipments together. Rapid identification technique, available to identify accurately and efficiently the magnetic card, bar code card, ID/IC card, fingerprint and face detection etc.

    • -> Operation model: Both direction can be set as controlled mode, free mode or disable model, two or one direction can be controlled by switch- button or access controller. (Free model means automatic open by infrared beam detecting, controlled model means use valid access controller signal to open, disable model means forbidding anyone pass thru).

    • -> Direction indicator function: Traffic lights on both sides of the turnstile barrier are the indicator of access status, When the traffic lights show green, it means to pass and the red light means no-entry. The traffic lights on both sides can be set to indicate access for left or right or bi-direction.

    • -> With normally open & normally closed working mode available.

    • -> Through the management computer to realize remote control and management.

    • -> Approved CE certificate



    OPERATION MODELS:

    The turnstile provides bi-directional access control. Each direction may be in one of three states:

    • -> Free passage: all person are authorized to pass under all conditions

    • -> Controlled access: each person must use a card reader before being authorized to pass

    • -> Lane closed: no persons are authorized to pass, and security cards are ignored



    DIMESNION SPECIFICATIONS:

    Access Control Turnstile Security Gates Tempered Glass Sliding Material


    PROJECTS:

    Access Control Turnstile Security Gates Tempered Glass Sliding Material



    FACTORY:

    Access Control Turnstile Security Gates Tempered Glass Sliding Material


    EXHIBITION:
    Bar Code Ticketing System Access Control Tripod Turnstile Gate of 304 stainless steel
