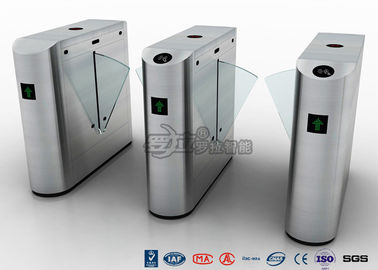

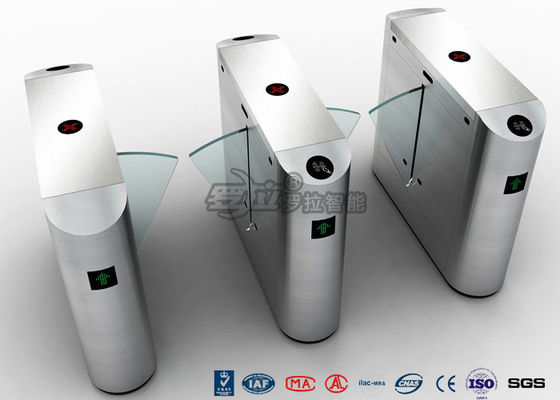

Auto Retractable Entrance Waist High Turnstile With Face Recognition / Card Reader

    • Auto Retractable Entrance Waist High Turnstile With Face Recognition / Card Reader
    • Auto Retractable Entrance Waist High Turnstile With Face Recognition / Card Reader
  • Auto Retractable Entrance Waist High Turnstile With Face Recognition / Card Reader

    Product Details:

    Place of Origin: China
    Brand Name: RONA
    Certification: CE / ISO9001
    Model Number: RNCF6088

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pair
    Price: negotiation
    Packaging Details: Export Wooden Packing
    Delivery Time: 7-15 working days
    Payment Terms: Western Union, T/T, L/C
    Supply Ability: 2000 units Per Month
    Contact Now
    Detailed Product Description
    Product Name: Auto Retractable Entrance Turnstile Gate With Face Recognition / Card Reader Size: 1400mm (L) * 300mm (W) * 990mm (H)
    Working Environment: Indoor/outdoor Normal Running Life: More Than 3 Millions
    Passage Width: 550mm: 550MM Communication Interface: RS485, TCP/IP

    Auto Retractable Entrance Turnstile Gate With Face Recognition / Card Reader



    Flap barrier gates:

    Our Turnstile can combine with different kinds of access readers,like: RFID Reader&Fingerprint Reader &Coin Machine&Barcode System&ESD Tester Access Control(If you have access control system,you can only purchase our turnstiles,if not, our side will install the access control system for you),except acess system,also can use remote.





    Product Features:

    ■ The Access Control Flap Barrier Turnstile opens automatically to evacuate people in the event of an emergency, such as fire, power failure, etc.
    ■ Automatic Flap Barrier Turnstile uses the multiple anti-clamping designs to protect the personal safety of pedestrians in maximum limit.
    ■ Fingerprint Recognition System Flap Barrier is equipped with the dry contact signal input interface, RS485/RS232 interface, TCP/IP interface (optional), compatible with all kinds of access controllers.

    ■ Sound, light alarm function: with trespassing, trailing alarm

    ■ Infrared and mechanical anti-clamping functions provide double protection.

    ■ The Flap Barrier gates do not return to the hindered zero position because of human intervention. After revoking human intervention, wing gates will return to the hindered zero position automatically.

    ■ When Access Control Flap Barrier Turnstiles need to readjust because of mechanical wear, the main control board can adjust automatically, accurately and conveniently.

    ■ Automatic Flap Barrier Turnstile is equipped with emergency escape control device, the system can automatically open wing gates to evacuate pedestrians conveniently.










    Technical parameters

    • Compact design yet offer sufficient space to integrate any access
    • Angles: 90 or 120°
    • Size:1420x310x1005mm or customized
    • Drive: manually operating
    • Rotation direction: bi-directional and unidirectional
    • Controller: adapts micro-computer controller can be 7 programmed according to customer needs
    • Interface: standard input and output interfaces can be used for other integration systems
    • Signal source: dry contact and high-low level signals
    • Roller working voltage: 220V AC ±10%
    • Voltage: 220V AC ±10%, 24V DC at 3A ±10% and 12VDC at 3A ±10%
    • Indoor/outdoor temperatures: -25 to 70°C
    • Indoor/outdoor humidity range: 5 to 95%
    • Switching time: 1s
    • Pass rate: 35 persons/min
    • Fault status: power-off and giving free exit/entry path
    • Movement failure rate: 500 million trouble-free
    • Frame protection: waterproof seal
    • Card reader location: 4
    • Installation and maintenance access: 1
    • Optional: IC/ID reader, barcode reader, other R/W equipment, UPS and infrared detector



         Auto Retractable Entrance Waist High Turnstile With Face Recognition / Card Reader
