Place of Origin: | China |
Brand Name: | RONA |
Certification: | CE/ISO9001 |
Model Number: | RNCF 8008H |
Minimum Order Quantity: | 1 unit |
---|---|
Price: | negotiation |
Packaging Details: | carton and wooden packing |
Delivery Time: | 7-15 work days |
Payment Terms: | L/C, T/T |
Supply Ability: | 2000 unit per month |
Material: | 304 Stainless Steel | Size: | 1500mm*180mm*990mm |
---|---|---|---|
Motor Type: | Brushless Motor | Pass Speed: | 30 Person/nin |
Passage Width: | 550-1100mm | MTBF: | 8 Million Times |
Sensor Quantity: | 9 Pairs | Warranty: | One Year |
High Light: | Brush Motor Access Control Turnstile Gate,Residential Access Control Turnstile Gate |

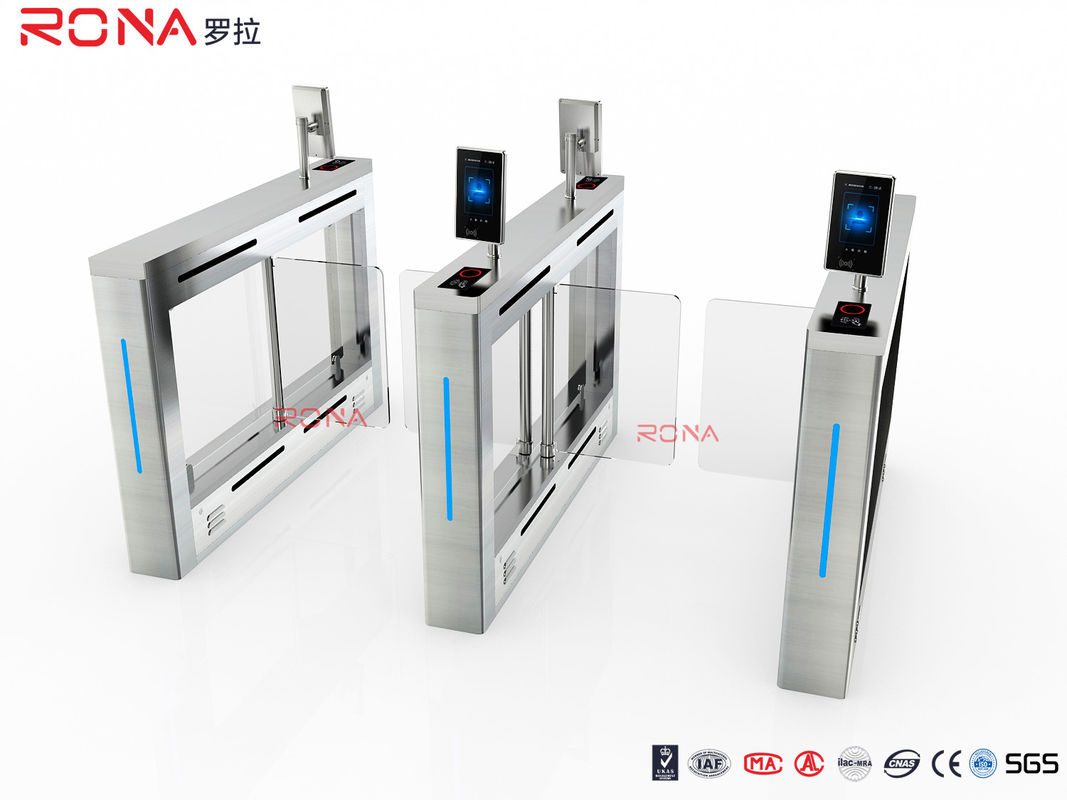

Product Introduction
As a high-performance swing barrier turnstile gate, the swing turnstile gate can be used in many places by virtue of its many advantages. In-office buildings, libraries, airports, etc, which can effectively protect security to access control.
Swing barrier turnstile is easily capable of handling high volume and abusive conditions. It is widely applied to bus stations, ports, neighborhoods, hotels, clubs, and companies that want to carry out intelligent management on passage.
Functions&Features
Parameters
Size: | L1500*W180*H990 mm |
Motor type: | Brushless motor |
Main board type: | V2.621 |
Normal running life: | ≧8 million times |
Sensor quantity: | 9 pairs |
Pass speed: | 30 person/min |
Housing material: | 304 stainless steel&Stoving varnish |
Passage width: | 500-1100MM |
Swing arm material: | Acrylic/Tempered glass/Stainless steel pipe(optional) |
Input interface: | AC100-240V,50/60HZ |
Working voltage: | DC24V |
Working power: | 100W |
Working temperature: | -15℃-70℃ |
Working humidity: | 5%-90% |
Working environment: | Indoor/Semi-outdoor(with shade) |
Input interface: | Relay dry contact signal or 12V pulse signal with pulse width ≥100ms, drive current ≥10mA |
Advantage
