Name: CE Approved Flap Barrier Gate Access Control System For Subway Station
Brand: RONA
SKU: RNCF 2088HD
Rating: 4.5 (178 reviews)

Home > products > Flap Barrier Gate >

CE Approved Flap Barrier Gate Access Control System For Subway Station

CE Approved Flap Barrier Gate

Flap Barrier Gate For Subway Station

Subway Station Access Control Turnstile

Place of Origin:

China

Brand Name:

RONA

Certification:

CE/ISO9001

Model Number:

RNCF 2088HD

Request A Quote

CE Approved Flap Barrier Gate Access Control System For Subway Station

Product Details

Housing Material:

304 Stainless Steel

Working Voltage:

AC100-220V,50/60HZ

Driving Motor:

DC24V Brushless Motor

Dimension:

1500MM*300MM*1000MM

Passage Width:

550mm

Direction:

Single/bi-direction

Payment & Shipping Terms

Minimum Order Quantity

1 unit

Price

negotiation

Packaging Details

carton and wooden packing

Delivery Time

7-15 work days

Payment Terms

L/C, T/T

Supply Ability

2000 unit per month

Flap Barrier Gate Security Subway Turnstile Barrier Gate Automatic Half Height Turnstile

Get Best Price

High Speed Flap Swing Barrier Gate Card Access Control ESD Turnstile Long Lifespan

Get Best Price

Rona Flap Security Barrier Gate Coin Collector Automatic Queue Access Control Turnstile

Get Best Price

High Speed Turnstile Access Control System New Entrance Security Solutions

Get Best Price

86-755-88853586-8002

Contact Now

Product Description

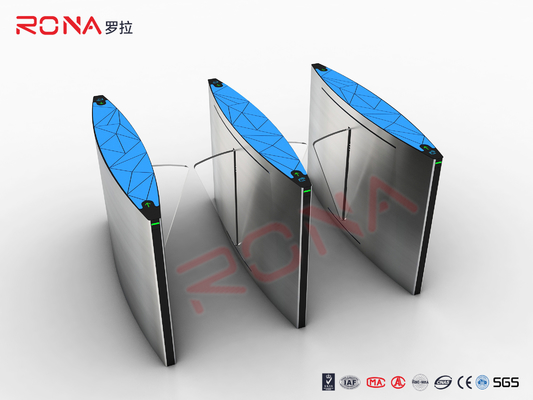

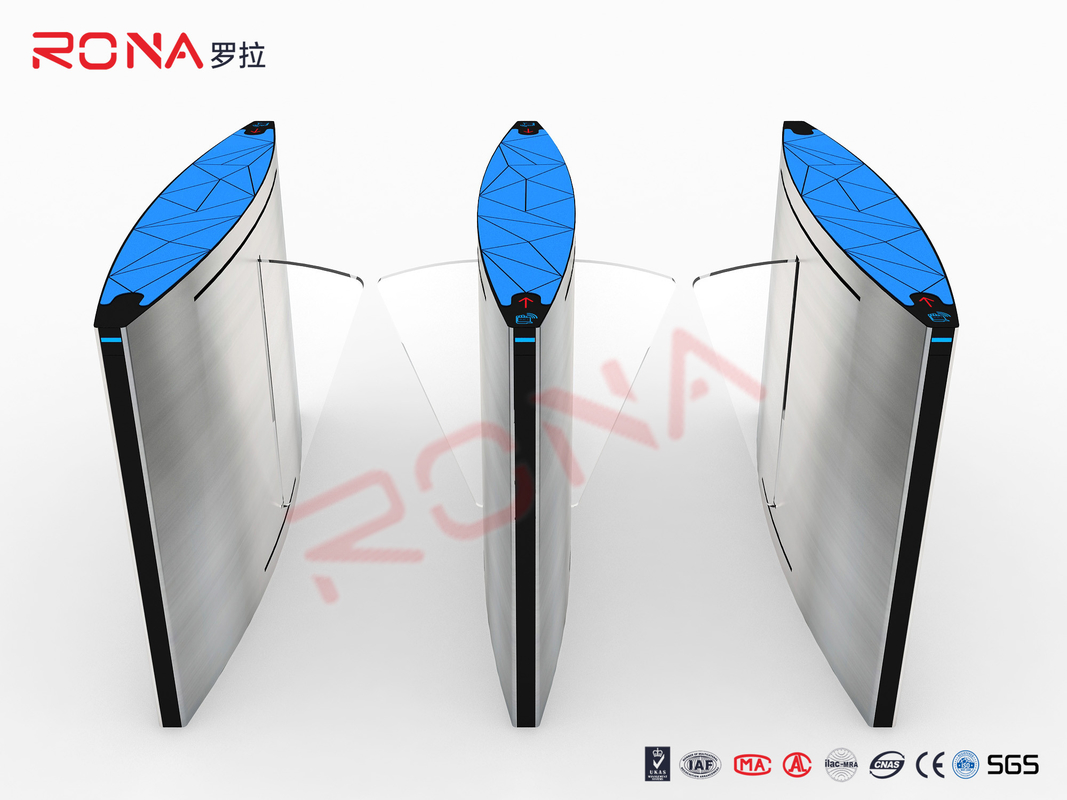

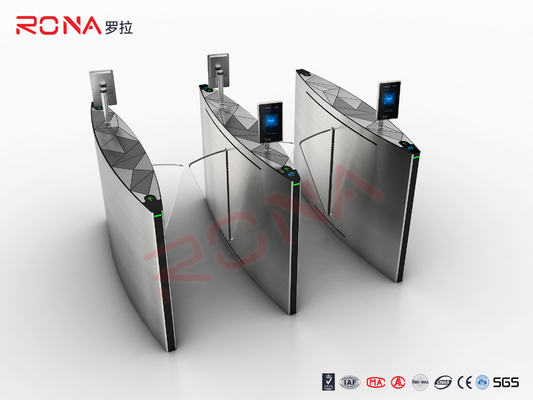

CE Approved Flap Barrier Gate Access Control System For Subway Station

Product Definition

Flap barrier turnstiles are electronic optical turnstiles with glass panels (or flaps). These glass panels extend from a pair of optical turnstile cabinets. The panels meet in the middle of the two cabinets to form a pedestrian barrier. A flap barrier turnstile is an aesthetically pleasing security and access control solution.

Functions

It has the function of a self-reporting fault prompt, which is convenient for users to use and maintain;
It has the functions of traffic indication and channel indication;
It has the function of normally open key
It has the functions of automatic opening of power-off swing door and automatic closing when powered on;
It has the function of line self-inspection;
It has the function of an illegal intrusion alarm;
It has a triple anti-pinch protection function;
The traffic mode can be adjusted freely;
The closing time and mode can be adjusted arbitrarily;
Remote control and management.
It can be connected with an all-in-one smart card such as duomo elevator/parking lot/access control/consumption.

Technical Parameters

Size: L1500*W300*H1000 mm

Retractable arm length: 250 mm

Max Passage width: 550 mm

Material: SUS 304 stainless steel

Working voltage: AC220±10%V , 50HZ

Drive motor: DC24V brush motor

Input interface: Dry contact signal & 12V level signal, drive current>10mA

Normal running life: More than 5 million

Communication interface: Standard RS485 interface

Sensor pairs : 6 pairs

Pass speed: 30 persons/min

Turnstile open / closed time: 1 second

Working environment: indoor/outdoor (with a tent over) -10℃～70℃

Relative humidity: ≤90% coagulation free

Application
