Place of Origin:
China
Brand Name:
RONA
Certification:
CE / ISO9001
Model Number:
RNCF6008L

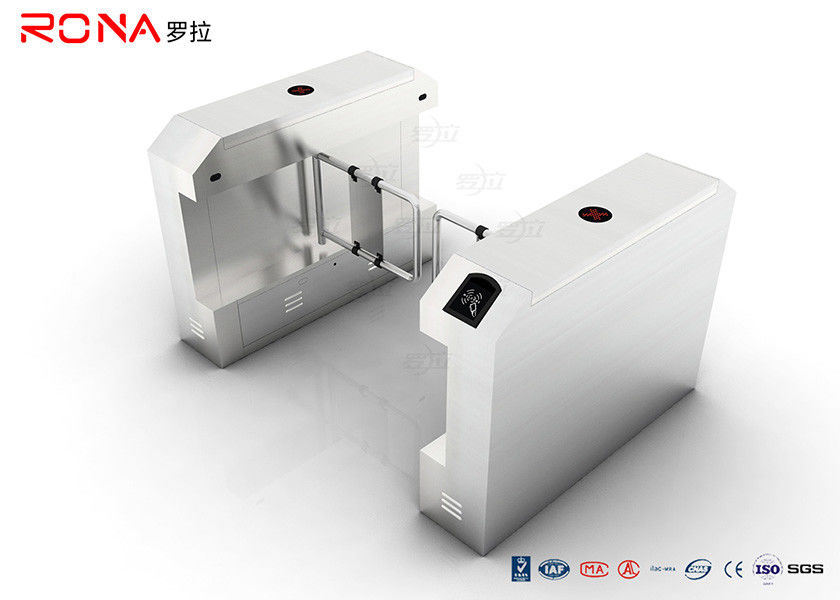

Automatic Access control Rfid Auto gate turnstile Swing Barrier Gate For Handicap Channel Card Reader
Swing barrier gates Standard features & functions
1)Optical turnstile is designed to control pedestrians entering or exiting restricted areas, usually used of high pedestrian traffic flow in both directions.
2)The body is made from brushed stainless steel which creates a seamless and elegant access point to blend into most indoor environment.
3)It can be integrated with any kind of access controller system (e.g.: RFID device, Push button, Fingerprint and Biometric device).
4)In case of emergency, the Optical Turnstile arm will open automatically to allow free passage.
5)Optical Turnstiles are suit for elegant and luxury entrance solutions.
1) The whole system runs smoothly, long-life performance, high operation dependability and fast response.
2) Alarm function, in case of illegal intrusion and reverse intrusion.
3) Infrared sensor to prevent pinch pedestrians.
4) Anti-breakthrough function. The gate is locked automatically until opening signal received.
5) Anti-trailing function, the turnstile will lock if someone wants to burst in without swiping the RFID card.
6) LED indicator.
7) Automatic reset function. If the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
8) When power off, optical turnstile will open automatically, which is complying with fire safety requirements.
Parameter of swing barrier gates
| 1 | Product Name | Automatic Access control Rfid Auto gate turnstile Swing Barrier Gate For Handicap Channel Card Reader |
| 2 | Model | RNCF6008L |
| 5 | auto reset time when there is breakdown | 10s |
| 6 | Drive voltage | 24V |
| 7 | LED indicating light | one |
| 8 | run into working state when power on | 3 s |
| 9 | Weight | 90kg |
| 10 | Card-reading window | two |
| 11 | Swing angle | 0-180 |
| 12 | Arm length | 300-600(mm) |
| 14 | normal life | 3 million times |
| 15 | Specification | Vertical:1600*280*980(mm) Bridge:1200*280*980(mm) |
| 16 | Interface | standard port-RS485 |
| 18 | communication interface | RS 485, distance ≤1200m |
| 19 | Framework | 304 Grade Stainless Steel |
| 20 | Power voltage | AC220 (10%more or less) V, 50(10%more or less) HZ |
| 21 | Transit speed | 30—40persons per minute (normal open), 25-30 persons/per minute ( normal close) |
| 22 | Input interface | relay switch signal, 12V level signal or 12V pulse signal, pulse width>100ms,drive current >10Ma |
