|Place of Origin:||China|
|Certification:||CE / ISO9001|
|Minimum Order Quantity:||1 pair|
|Packaging Details:||Export Wooden Packing|
|Delivery Time:||7-15 working days|
|Payment Terms:||Western Union, L/C, T/T|
|Supply Ability:||2000 units Per Month|
|Material:||304 Stainless Steel||Standard Size:||380(L)*280(W)*1000(H) (MM)|
|Driving Motor:||DC24V Brush Motor||Channel Width:||530mm-830mm|
|Working Life:||3 Millions||Pass Speed:||25-30 Persons/min|

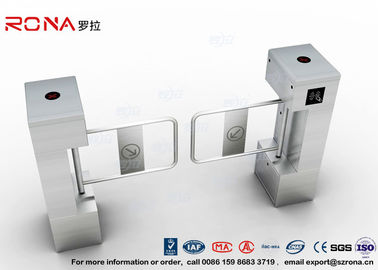

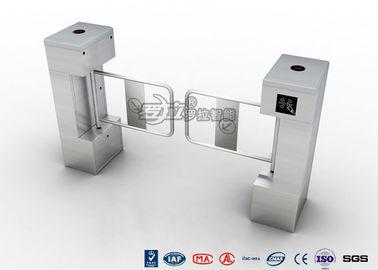

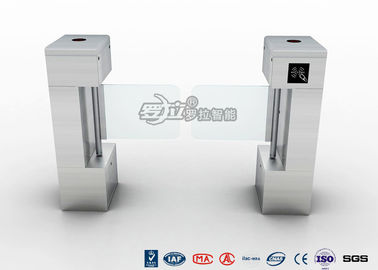

RFID Biometric Swing Barrier Gate , Bank Bridge Access Control Turnstile
1) Residence enter and exit the swing barrier gates by smart cards which will be authorization.
2) Strangers can't enter this building , unless they provide useful information or certifications
3) Bicycle or luggage also can enter or exit the swing barrier gates , because of we have special program with patent
Peripheral equipment (Basic)
1) Access control system
2) Access control board
3) Card readers
4) Smart cards
5) Power supply
Swing barrier gates Standard features & functions
1. Turnstile can setting the working condition by press the button of main control board.
2. Anti-pinch function: turnstile have Mechanical/ infrared induction Anti-pinch functions( when it is meet the hinder during the reset time, the electrical machine closed work automatically in specified time, the turnstile will default the delayed and reset again till reset succeed)
3. The turnstile will lock when somebody enter the gate illegal, Tailgating or break into negative direction gate.
4. Before received the open signal, the turnstile will lock automatically
5. The arm have the collision avoidance function: when the turnstile arm closed, if it is under the collision, the arm will open to protect the Transmission of inner machine.
6. Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset time is 1~60s you can adjust it what time is suit for you). totally meet the fire protection needs
7.The turnstile can work with door access control system/ consumption system /biometric recognition system/ ESD system and so on
8. The turnstile is bidirectional (pedestrian can enter and exit from one pair of turnstiles)
9. Can manager and long-range control the turnstile directly by managing the computer.
1, LED counting function
2, Box house can heighten , telescopic arm lengthen, can choose materials
3, Infrared reset function & Infrared induction clamp function
4, Sound and light alarm prompt functions
5, Normally open or closed can be adjust to meet the requirements of the different place.
light prompt function: it is convenient to find the turnstile problem by administrative staff
Parameter of swing barrer gates
|Framework||304 Stainless Steel|
|LED indicating light||One|
|Operating temperature||-25℃ ~ +60℃, RH ≤90%|
|Comunication Interface||RS485,distance ≤1200m|
|Power supply||AC 220V/110V ±10% 50/60MHZ (optional)|
|OpeningTransit speed:||30—45persons per minute|
|Closing Transit speed:||25-35per minute|
