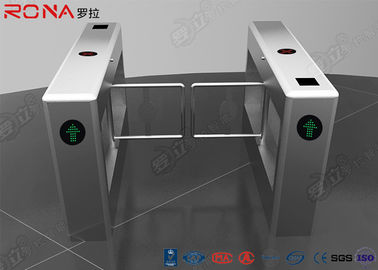

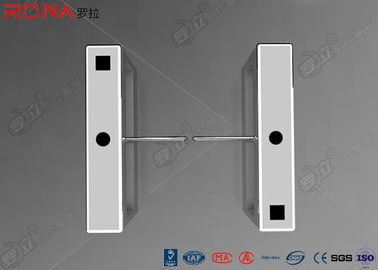

Auto Gate Swing Gate Turnstile Mechanism Rfid Door Opener 180° Arm Work Angle

Auto Gate Swing Gate Turnstile Mechanism Rfid Door Opener 180° Arm Work Angle

    • Auto Gate Swing Gate Turnstile Mechanism Rfid Door Opener 180° Arm Work Angle
    • Auto Gate Swing Gate Turnstile Mechanism Rfid Door Opener 180° Arm Work Angle
  • Auto Gate Swing Gate Turnstile Mechanism Rfid Door Opener 180° Arm Work Angle

    Product Details:

    Place of Origin: China
    Brand Name: RONA
    Certification: CE / ISO9001
    Model Number: RNCF H6008L

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Export Wooden Packing
    Delivery Time: 7-15 work days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 2000 units Per Month
    Contact Now
    Detailed Product Description
    Name: Luxury Safety Swing Turnstile Barrier Access Control Mechanism Rfid Door Opener Auto Gate Size: L1200*W250-300*H1020mm
    Type: Swing Gate Turnstiles Framework: 304 Grade Stainless Steel (2.0)
    Swing Arm Material: Acrylic / Tempered Glass Transit Speed: 40 Persons/min
    Color: Sliver / Customized



    Luxury Safety Swing Turnstile Barrier Access control Mechanism Rfid Door Opener Auto Gate





    Technical Parameters



    Description Parameters
    Item / Model RNCF H6008L
    Running life  5 million
    Drive voltage DC24V 20W
    Pass Speed  40 persons/minute
    Open direction Single and bi-directional (optional)
    Opening time 2~3S(adjustable)
    Drving motor 24V DC Brush Motor
    Thickness of Housing 2.0mm
    Length of the bar 500-900mm
    Passage width 500-1800mm
    Swing arm work angle 180°





    Product Description



    1. Numerical contron coder makes luxury speed gate working accurately and efficiently.
    2. The Turnstile use newest DC brush motor with encoder for limiting position.
    3. It can be integrated with any kind of access controller system (e.g.: RFID device, Push button, Fingerprint and Biometric device).
    4. In case of emergency, the Optical Turnstile arm will open automatically to allow free passage.
    5. Optical Turnstiles are suit for elegant and luxury entrance solutions.





    Standard functions & features of Swing Turnstiles Gate



    1. Problem-self-checking function.
    2. When power off, arm open automatically and power on again, arm will be held automatically.
    3. When valid card read and passenger passed, arm can be delayed to close from 1-60s which can be set in the control panel.
    4. Auto-reposition function: After card read, passenger not pass within regulated time period, full-height turnstile will cancel this passing right. And the regulated time period for passing can be set by managers.
    5. If passenger pass without card read or valid card read, flap barrier will alarm untill passenger get back from the flap barrier and then take a valid card to be read for passing.
    6. Anti-rush function: if there is no open single, arm will be holding tightly.
    7. Many options of working ways: bi-direction card reading; one direction card reading and another no reading; one direction card reading and another freely. And single direction photocell controlled passing and close. Working ways can be set in the control panel.
    8. Double anti-clipping function: photocell anti-clipping and mechanical anti-clipping.When passenger is going through the flap barrier, photocell will detect out this situation and will not close. After passenger passed, arm will close automatically. During its reposition, if arm meets any obstacle, arm will get back automatcially or stop working for a while with very slight force. Also it will alarm.
    9. Card-reading with memory or without memory function.
    10. Stable running with little noise.


    Adaptive Place


    1. Office: Business Building, Government Office, Etc.;
    2. Science And Education Unit: Colleges And Universities, Research Institutes, Libraries, Etc.;
    3. Business Services: Supermarkets, Shopping Malls, Hotels, Clubs, Banks, Etc.;
    4. Leisure And Entertainment Venues: Parks, Scenic Spots, Amusement Parks, Etc.
    5. Transport Site: Bus Station, Railway Station, Subway Station, Airport And So On.







    Auto Gate Swing Gate Turnstile Mechanism Rfid Door Opener 180° Arm Work Angle

    Auto Gate Swing Gate Turnstile Mechanism Rfid Door Opener 180° Arm Work Angle
