Face Scan Pedestrian Barrier Gate Swing Turnstile Automatic Door Entrance Solution In Mansion

Face Scan Pedestrian Barrier Gate Swing Turnstile Automatic Door Entrance Solution In Mansion

electronic turnstiles

security barrier gate

Place of Origin:

China

Brand Name:

RONA

Certification:

CE / ISO9001

Model Number:

RNCF1088 / RNCF1088S

Contact Us
Request A Quote
Product Details
Material:
304 Stainless Steel
Place Of Origin:
Shenzhen, China (Mainland)
Size:
1400mm (L) * 300mm (W) * 990mm (H)
Working Environment:
Indoor/outdoor
Normal Running Life:
More Than 3 Millions
Passage Width: 550mm:
550MM
Waterproofing Grade:
IP54
Communication Interface:
RS485, TCP/IP
Payment & Shipping Terms
Minimum Order Quantity
1 pair
Price
negotiation
Packaging Details
Export Wooden Packing
Delivery Time
7-15 working days
Payment Terms
, T/T, L/C
Supply Ability
2000 units Per Month
Product Description

ZK face scan with flap gates turnstile using in automatic door solution efficient entrance solution in mansion



Flap barrier gates:

Our Turnstile can combine with different kinds of access readers,like: RFID Reader&Fingerprint Reader &Coin Machine&Barcode System&ESD Tester Access Control(If you have access control system,you can only purchase our turnstiles,if not, our side will install the access control system for you),except acess system,also can use remote.


Feature & Advantages

1. Fault detection and alarm functions, easy to use and maintenance.
2. The running status can be programmed and controlled with the built-in keyboard on the main board.
3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset).
4. Anti-breakthrough function. The gate is locked automatically until opening signal received
5. Synchronization functions (for dual gate equipments).
6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
7. Gate can be set as normally open or normally closed.
8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed).
9. Direction can be set as single-direction or bi-direction.
10. LED direction indicator.
11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.
12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.

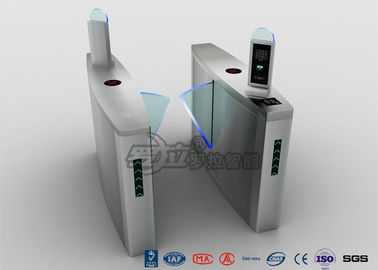

Face Scan Pedestrian Barrier Gate Swing Turnstile Automatic Door Entrance Solution In Mansion 0
Technical parameters

  • Compact design yet offer sufficient space to integrate any access
  • Angles: 90 or 120°
  • Size:1420x310x1005mm or customized
  • Drive: manually operating
  • Rotation direction: bi-directional and unidirectional
  • Controller: adapts micro-computer controller can be 7 programmed according to customer needs
  • Interface: standard input and output interfaces can be used for other integration systems
  • Signal source: dry contact and high-low level signals
  • Roller working voltage: 220V AC ±10%
  • Voltage: 220V AC ±10%, 24V DC at 3A ±10% and 12VDC at 3A ±10%
  • Indoor/outdoor temperatures: -25 to 70°C
  • Indoor/outdoor humidity range: 5 to 95%
  • Switching time: 1s
  • Pass rate: 35 persons/min
  • Fault status: power-off and giving free exit/entry path
  • Movement failure rate: 500 million trouble-free
  • Frame protection: waterproof seal
  • Card reader location: 4
  • Installation and maintenance access: 1
  • Optional: IC/ID reader, barcode reader, other R/W equipment, UPS and infrared detector
Model No. RNCF 1088 RNCF 3088 RNCF 6088 RNCF 9088
Size(mm) 1410x340x1005 1400x350x980 1400x280x980 1400x280x980
Unlock time 0.2s 0.2s 0.2S 0.2S
Pass rate 35 person/min 35 person/min 35 person/min 35 person/min
Pass width ≤550mm ≤600mm ≤550mm ≤550mm
input 100V~240V 100V~240V 100V~240V 100V~240V
Motor voltage 24V 24V 24V 24V
environment -25~+70 -25~+70 -25~+70 -25~+70
Power consumption 35w 35w 35W 35W
input 12v dry contact 12v dry contact 12v level signal or Pulse Wide>100ms -25~+70

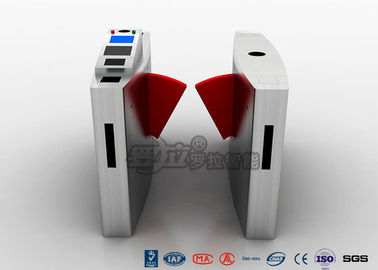

Face Scan Pedestrian Barrier Gate Swing Turnstile Automatic Door Entrance Solution In Mansion 1
