Waist Height Turnstile Security Systems , Face Recognition Speed Fastlane Turnstile

Waist Height Turnstile Security Systems , Face Recognition Speed Fastlane Turnstile

security turnstiles

barrier turnstile

Place of Origin:

China

Brand Name:

RONA

Certification:

CE / ISO9001

Model Number:

Customized

Contact Us
Request A Quote
Product Details
Materials:
304# Stainless Steel
Finish:
Brushed Surface/polishing Surface
Power Voltage:
AC220V±10%, 50Hz±10%
Driver Motor:
DC Servo Motor
Passing Speed:
40 Persons/min
Passage Width:
600mm~1200mm
Operation Temperature::
-10℃ ~ +70℃
Communication Port:
RS232 / RS485
Payment & Shipping Terms
Minimum Order Quantity
1 Lane
Price
negotiation
Packaging Details
carton and wooden packing
Delivery Time
7-15 working days
Payment Terms
T/T,
Supply Ability
2000 units Per Month
Product Description

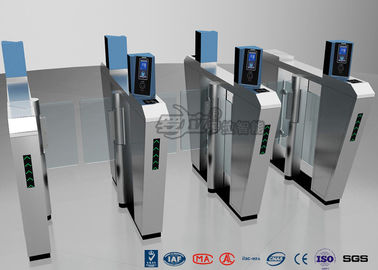

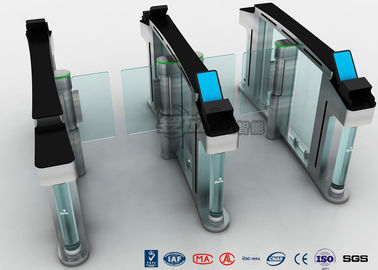

Waist Height Turnstile Security Systems , Face Recognition Speed Fastlane Turnstile





PRODUCT DESCRIPTIONS:

The fastlane turnstile combines slim line styling with one of the industries widest passages. It has clear, bi-directional swinging motorized barrier panels and a stylish, architectural design that enhances any access control installation. Its sleek design and smaller footprint makes it compatible with any upscale business or institutional environment.



The fastlane turnstile controls pedestrian access between public and secure areas. The fastlane turnstile system is provided with a standard electric interface and can easily integrates the common 3rd party equipment with read/write facilities, such as access control system, time & attendance system, consumption system, ESD system and fare collection system, biometric systems (fingerprint & face recognition), bar-code scanner, Token/ID/IC card reader, coin collector and card collector, etc.



SPECIFICATIONS:



Framework

304# Stainless Steel (default), 201# or 316# Stainless Steel or paint (optional)

Thickness of ply

1.7mm

Finish

brushed surface, polishing surface

Shell's size (L*W*H)

Customized

Swing arm material

Tempered glass or Acrylic (optional)

Stretching out swing length

260mm~600mm

The inductive card reader dimension

equipped with the standard mounting brackets or tailor.

Machine center

Germany technological motor

Power voltage

AC220V±10%, 50Hz±10%

Driver motor

DC36 servo motor

Main-board voltage

12V DC

In-built Infrared

6 pairs/passageway

Passing speed in normally open mode

50 persons/min

Passing speed in normally closed mode

40 persons/min

Passage Width

600mm ~1200mm

Swing arm transmission angle

180°

Swinging direction

unidirectional or bi-directional

Opening / closing time

0.1 seconds

The time required to running state after power on

3 seconds

Automatic reset time after the failure

1 seconds

Mean time to failure

min. 5 000 000

Operation temperature

-10℃ ~ +70℃

Relative humidity

less than 95% not condensed

Working Environment

Indoor/Outdoor (with rain-tent cover)

Input port

relay dry contact signal; +12V level signal, pulse width >100ms, DC12V pulse signal

Communications port

RS232/ RS485 electric standard, communications range ≤1200m. Available to connect with external CAN BUS and Ethernet



APPLICATIONS:

Typical areas of application are: Employee and Visitor Access Control, Time & Attendance Integration, Loss Prevention, Government Facilities, Buildings, Banks, Museums and Airports, etc high-end places.



TECHNICAL DETAILS:

1. Rapid identification technique, available to identify accurately and efficiently the magnetic card, bar code card, ID card and IC card.

2. With normally open & normally closed working mode

3. Real time failure self-detect and alarm indication, ensuring system safe operation and facilitating maintenance and operation.

4. With direction indication, guiding passenger to entry and exit.

5. Automatic counting and displaying number of passenger, facilitating observation and with a displaying total amount as high as 90,000. (Optional)

6. Sound/light (Light is optional) alarm indication function, preventing illegal entry or irregular passing.

7. After the system power is cut off, the plate barrier starts the standby power to withdraw the barrier, so that the passage is ensured to be smooth and to divert the flow of passenger timely.

8. The infrared sensing technique realizes real time monitor of passage, safe protection and tail-proof.

9. The treatment mode in emergency or in special conditions.

10. Super strong combination capability, with the combined application of products of different passage types and series, not affecting the system performance.

11. Strong system expending capability, available to add new product at any time.

12. Far end control management: function to far end control of barrier mode, meeting the special requirements of the users and the fire protection.
