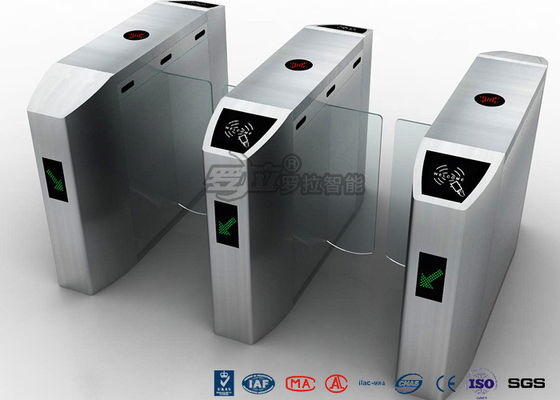

CE Approved Sliding Barrier Gate Turnstile Tempered Glass 30 Persons / Min

CE Approved Sliding Barrier Gate Turnstile Tempered Glass 30 Persons / Min

automatic systems turnstiles

urnstile access control

Place of Origin:

China

Brand Name:

RONA

Certification:

CE / ISO9001

Model Number:

RNCF9066 / RNCF9066S

Contact Us
Request A Quote
Product Details
Framework Material:
304# Stainless Steel
Dimension:
1400L*310W*1000H Mm
Material Of Sliding:
Tempered Glass
Stretching Out Sliding Length:
230~235mm
Power Voltage:
AC220V±10%, 50Hz±10%
Driver Motor:
DC Brush Motor
Input Port:
Relay Dry Contact Signal; +12V Level Signal And Pulse Width >100ms, DC12V Pulse Signal
Communications Port:
RS232/ RS485
Payment & Shipping Terms
Minimum Order Quantity
1 Lane
Price
negotiation
Packaging Details
carton and wooden packing
Delivery Time
7-15 working days
Payment Terms
T/T,
Supply Ability
2000 units Per Month
Product Description

CE approved Sliding Gate Turnstile Turnstile Barrier Gate With 304# Stainless Steel



PRODUCT CLASSIFICATIONS:

It may be divided according to the combination type of core mechanism: single-core mechanism and dual-core mechanism.



-> Single-core mechanism: RNCF9066

The sliding barrier only equipped with single-core in the cabinet as shown in Fig.1, usually be used in single lane or multi-lane applications.

-> Dual-core mechanism: RNCF9066S

The sliding barrier equipped with independent dual-core in the cabinet as shown in Fig.2, usually be used in multi-lane applications.



TECHNICAL SPECIFICATIONS:

Product Name

Sliding Gate Turnstile

Model

RNCF9066

RNCF9066S

Classifications

Single-core mechanism

Dual-core mechanism

Framework

304# Stainless Steel (default)

Thickness of ply

1.7mm

Finish

brushed surface, polishing surface or anti-fingerprint surface (optional);

Size (L*W*H)

1400mm*310mm*1000mm (default)

Material of flap

Tempered glass

Stretching-out flap length

230~235mm

Height of Sliding Gate

max of 1500mm (optional)

Machine center

Germany technological motor

Power voltage

AC220V±10%, 50Hz±10%

Driver motor

DC brush motor

Main-board voltage

12V DC

In-built Infrared

6 pairs/lane

Passing speed

30 persons/min

Passage Width

550mm

Opening / closing time

0.6 seconds

The time required to running state after power on

3 seconds

Automatic reset time after the failure

10 seconds

Mean time to failure

min. 5 000 000

Operation temperature

-10℃ ~ +70℃

Relative humidity

less than 95% not condensed

Working Environment

Indoor/Outdoor (with rain-tent cover)

Input port

relay dry contact signal; +12V level signal or DC12V pulse signal

Communications port

RS232/ RS485 electric standard, communications range≤1200m.

Warranty

12 months

Certificate

CE





PRODUCT DESCRIPTIONS:

The retractable sliding gate turnstile controls pedestrian access between public and secure areas. The turnstile lane uses an array of optical sensors to determine the number and direction of persons passing through the lane. The turnstile uses a retractable sliding gate to block the pedestrian’s path.



The sliding turnstile system is provided with a standard electric interface and can easily integrates the common 3rd party equipment with read/write facilities, such as access control system, bar-code scanner, Token /ID/IC card reader, time & attendance system, coin collector, card collector, biometric systems (fingerprint & face recognition), consumption system, ESD system and fare collection system, etc.



STANDARD FEATURES & FUNCTIONS:

  • -> Obstacle safety detection with audible alarm, to convenient for users to maintain and use.

  • -> The running status of device can be set up through pressing the built-in small keyboard of the main control board.

  • -> With a variety of operating models and functions, it can be programmed to be bi-directional access, or exit by sensors.

  • -> Equipped with infrared photo beam sensors, mechanical double anti-folding feature, effectively protects against pedestrian accidents / injuries.

  • -> Reset automatically, anti-tail, anti-reverse intrusion, dual anti-pinch and stop unauthorized access.

  • -> Acoustic signal for announcement of unauthorised use.

  • -> Barrier locked in closed position to prevent force intrusion, until a valid access control signal is received.

  • -> Time out reclosing feature, if never detect anyone pass thru the barrier, will auto reclose at defined value. The standard default is 10 seconds. (1 to 60 second adjustable);

  • -> Emergency-escape function: When power failure, barrier will auto open to meet the request of fire protection. Also barrier will open by pressing the emergency button which can be remote-controlled whether the power is on or not. (Optional).

  • -> Standard fire alarm input interface, requires N.C normally close contact.

  • -> The turnstile system can easily integrates with the 3rd party equipment with read facilities, such as biometric reader, consumption system, ESD system and access control system etc.

  • -> The turnstile system can be hooked up with multiple reader equipments together. Rapid identification technique, available to identify accurately and efficiently the magnetic card, bar code card, ID/IC card, fingerprint and face detection etc.

  • -> Operation model: Both direction can be set as controlled mode, free mode or disable model, two or one direction can be controlled by switch- button or access controller. (Free model means automatic open by infrared beam detecting, controlled model means use valid access controller signal to open, disable model means forbidding anyone pass thru).

  • -> Direction indicator function: Traffic lights on both sides of the turnstile barrier are the indicator of access status, When the traffic lights show green, it means to pass and the red light means no-entry. The traffic lights on both sides can be set to indicate access for left or right or bi-direction.

  • -> With normally open & normally closed working mode available.

  • -> Through the management computer to realize remote control and management.

  • -> Approved CE certificate



DIMESNION SPECIFICATIONS:

CE Approved Sliding Barrier Gate Turnstile Tempered Glass 30 Persons / Min 0

PROJECTS:

CE Approved Sliding Barrier Gate Turnstile Tempered Glass 30 Persons / Min 1



FACTORY:

CE Approved Sliding Barrier Gate Turnstile Tempered Glass 30 Persons / Min 2


EXHIBITION:
