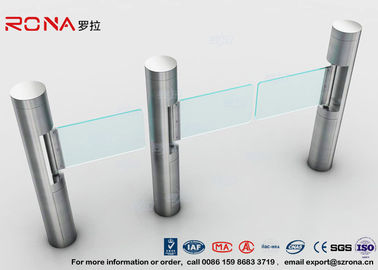

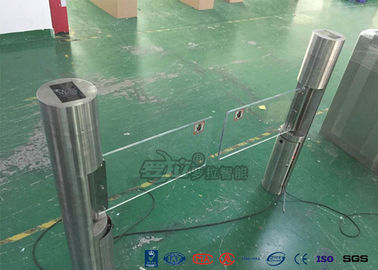

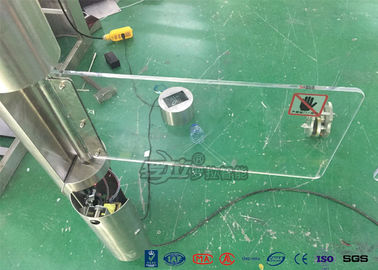

Intelligent Automatic Swing Barrier Gate With Aluminum Alloy Mechanism with people counting systems

Intelligent Automatic Swing Barrier Gate With Aluminum Alloy Mechanism with people counting systems

pedestrian swing gate

gate barrier system

Place of Origin:

China

Brand Name:

RONA

Certification:

CE / ISO9001

Model Number:

RNCF8008ZB

Contact Us
Request A Quote
Product Details
Material:
304 Stainless Steel
Standard Size:
Φ168mm H1060mm
Driving Motor:
DC24V Brush Motor
Material Swing:
Stainless Steel Or Acrylic
Pass Speed:
25-30 Persons/min
Working Environment:
-30℃~70℃
Input Interface:
+12V Level Signal Or Pulse Width>100ms 12V Pulse, Drive Current>10mA
Guarantee:
12 Months
Payment & Shipping Terms
Minimum Order Quantity
1 pair
Price
negotiation
Packaging Details
Export Wooden Packing
Delivery Time
7-15 working days
Payment Terms
, L/C, T/T
Supply Ability
2000 units Per Month
Product Description

Intelligent Automatic Swing Barrier Gate With Aluminum Alloy Mechanism with people counting systems





Introduce of swing gates

1. Globally Recognized Design and Security
RONA swing barriers models have a patented design that people recognize.We have been manufacturing our TURNSTILE  since the company's beginnings in 2004, and we continue to build with the same timeless style that our customers have grown to love for generations.


Our turnstiles are featured in many public locations worldwide.They can also be seen in famous movies, music videos, and even video games.When you see a turnstile, there's a good chance it's a RONA.

2. Professional Upgrades and Customization
We have swing barrier models in 304 stainless steel.Custom orders and configurations are also available for select models.Tell us how we can make our products fit your aesthetic and security needs.We have the ability to make our turnstiles to meet your different needs and provide you the different market.

The most attractive swing barriers includes our strong compatibility.It can use integrate any system with relay signal.Our products can use with any standard access control system with COM interface.

3. Top Priority is Security
The swing barriers is still the only method for insuring that one person passes per ID/IC or fingerprint reader and that there is only one count per person.Our uniquely high reliability means that a Roanpu turnstile costs almost nothing to own.

Owning swing barriers from RONATurnstiles is owning a piece of market demand.Browse around our different swing barriers models and see what we have to offer.



Swing barrier gates Standard features & functions

1. Single/double walkway--controlled in one direction or both.
2. A valid lock action can allow one passage at one time.
3. Normally open--the machine will unlock when a valid signal is received.
4. It will lock automatically if passage through turnstile is not completed within pre- set time, the set time can be adjusted via parameter change.
5. Lightning protection and leakage protection.
6. Protection functions:Anti-pinch, anticollision, antistall, over voltage and over current and powersurge.
7. Control panel with count and LED digital function
8. The system is equipped with stepless position device and the operation process is controlled by sensors without mechanical impact.
9. Digital-controlled (CNC) processing technology, fine surface treatment and corrosion resistance.
10. Standard external electric interface with photoelectric isolation enchance incorporate all kinds of control equipments thus extremely convenient for system integration.
11. Remote control and setup.
12. Extended functions:Counting, audible and visual alarm, fire alarm and linkage, Photoelectric Beam Detector.



Basic information of swing barrier gates

Model RNCF 8008Z swing barriers gates
Size Φ168mm H1060mm
Material 2.1mm SU304 Stainless Steel
Swing Material 12 mm PVC plexiglass
Waterproof IP51
Power supply DC24V
Flap control 360 degree slipping toothed cluth lock
Rotational angle Max: 180 degree
Speed 0.2--0.5s
Motor Direct current bruch/brushless
Noise Not more than 60dB
Lifetime Not less than 5 million times
Interface I/O. RS232/485. TCP/IP

Intelligent Automatic Swing Barrier Gate With Aluminum Alloy Mechanism with people counting systems 0

Intelligent Automatic Swing Barrier Gate With Aluminum Alloy Mechanism with people counting systems 1
