|Place of Origin:||China|
|Certification:||CE / ISO9001|
|Minimum Order Quantity:||1 pair|
|Packaging Details:||Export Wooden Packing|
|Delivery Time:||7-15 working days|
|Payment Terms:||Western Union, L/C, T/T|
|Supply Ability:||2000 units Per Month|
|Material:||304 Stainless Steel||Standard Size:||Φ168*Φ89*H1060mm|
|Driving Motor:||DC24V Brush Motor||Swing Length:||262~450mm|
|Material Swing:||Stainless Steel Or Acrylic||Pass Speed:||25-30 Persons/min|
|Environment:||Indoor Or Outdoor||Working Life:||5 Millions|
|Input Interface:||+12V Level Signal Or Pulse Width>100ms 12V Pulse, Drive Current>10mA||Guarantee:||12 Months|

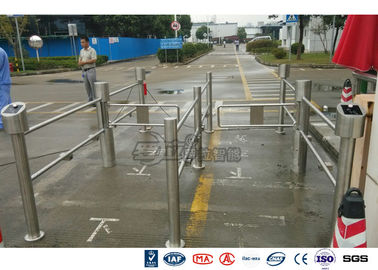

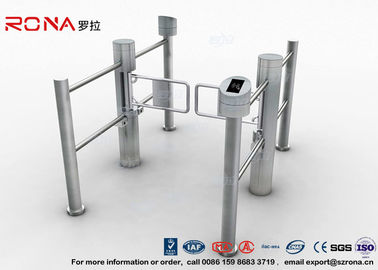

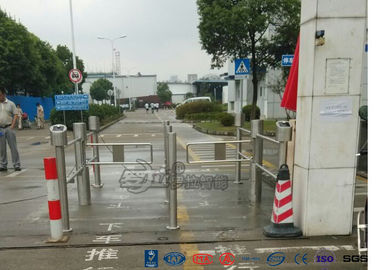

Club Portable Swing Barrier Gate Mechanism Electronic With Direction Indicator CE Approved
Introduce of the swing barrier gates
The whole product appearance using SUS304 stainless steel plate stamping forming, intelligent swing gate can easily compatible with IC card, ID card, barcode card, fingerprint and other card identification equipment, to provide a civilized, orderly way, effective management of people in and out. Can be widely used in the station, wharf, subway, factories, buildings, intelligent residential, hotels, clubs, enterprises and institutions need to realize the intelligent management of the channel.
This product is divided into: Single Movement: for single channel and multi-channel; dual movement: for multi-channel
Swing barrier gates Standard features & functions
1. Fault detection and alarm functions, easy to use and maintenance.
2. The running status can be programmed and controlled with the built-in keyboard on the main board.
3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset).
4. Anti-breakthrough function. The gate is locked automatically until opening signal received.
5. Synchronization functions (for dual gate equipments).
6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
7. Gate can be set as normally open or normally closed.
8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed)
9. Direction can be set as single-direction or bi-direction.
10. LED direction indicator.
11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.
12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.
13. Counter function (optional).
14. Support infrared photocell for anti-pinch and reset function (optional).
1. Professional solutions at first place (we have whole team to do the pre-sales job )
2. Competitive and reasonable price (we are 12 years factory)
3. Advanced technology (we have more than 50 patents )
4. Fast delivery (A individual shipping department)
6. Best service (we need money...)
7. High reputation of this industry (we we are not in the first , but fifth is no problem in turnstile industry).
8. All of the turnstile project in the website all using our turnstile.
|Product Model||RNCF8008S||Communication interface||TCP/IP communication|
|Product size(mm)||Φ168*Φ89*H1060mm||Access speed||
40 person/min(normal open),
|Pendulum channel||600mm||Gate opening, closing time||1-2 seconds|
|Length of swing arm||600mm||Time from power up to passage||3 seconds|
|Weight||40KG||Put the channel||1200mm|
|Swing arm transmission angle||180 degrees||Case material||#304 stainless steel|
|Swing direction||one side or both sides||Temperature||15 °C ~ 60 °C|
|Working voltage||AC220 ±10% V/50 ±10% HZ||Drive motor||DC motor (24V)|
