|Place of Origin:||China|
|Certification:||CE / ISO9001|
|Model Number:||RNCF 738|
|Minimum Order Quantity:||1 unit|
|Packaging Details:||carton and wooden packing|
|Delivery Time:||7-15 working days|
|Payment Terms:||T/T, Western Union|
|Supply Ability:||2000 units Per Month|
|Material:||304# Stainless Steel||Dimension(L*W*H):||1200mm*280mm*990mm|
|Thickness Of Material::||1.5mm||Communication Interface:||RS 485, Distance ≤1200m|
|Passage Width:||550mm||Transit Speed::||25~30/ Per|
|Max Power Consumption::||60w||Turnstile Warranty::||1 Years|

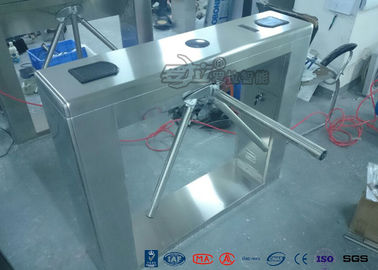

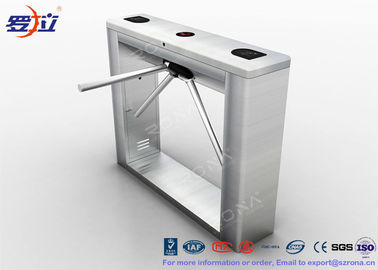

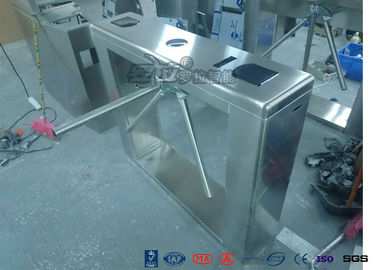

Bridge Type Security Access Control Turnstiles Electric With Counter
Introduce of the tripod turnstile
Main Functions and Features of the System of tripod turnstile
1) The entire system runs smoothly, with a small noise and free of mechanical impact.
The system adopts the exclusive technique of Jaw clutch. As a result, the turnstile is more accurate and reliable for zero point locking and unlocking.
2) DC Brushless Motor, Maintenance Free
3) It has failure self-detect and alarm indication function, facilitating maintenance and application for the users.
4) It is provided with multiple operation modes for selection. It can either read card in double way for flow limit, or reading card in a way while barring in the other, or read card in a way while free passage in the other. Moreover, the operation mode of turnstile may be set up with the built-in small keyboard.
5) It has automatic function of opening or closing when power off.
6) The equipment is provided with a unified, standard electric interface and is available to be integrated with various read/write facilities to facilitate the system integration. It is able to realize far end control and management with the help of administrative computer.
7) It has a function of reading card with or without memory, and it may be set up with the built-in small keyboard in accordance with the requirements of the users.
8) Counting the passing people number automatically, and with LED display
9) Direction indicator function, showing passing or prohibiting for the people
10) Prohibiting opposite direction passing, one side reading the card, the other side will lock when you passing forcedly; the locking time can be set, and unlocked by the card.
11) Prohibiting illegal passing, the turnstile without the card, the locking time can be set, and unlocked by the card.
12) Anti-hit against function, when the turnstile touches the passing people, it will stop and after several seconds, it will turn again.
13) Self resetting function, the system will cancel the people passing right when reading the card but not passing, the time can be set.
14) RS485 Communication function
Technical Parameter of tripod turnstile
Main arm data
Gate opening time
Main performance parameters
12V/20W DC motor
Pole working force
indoor and outdoor
-40℃ ～ 80℃
