Place of Origin:
China
Certification:
CE / ISO9001
Model Number:
RNCF 238

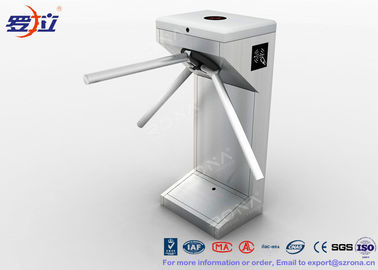

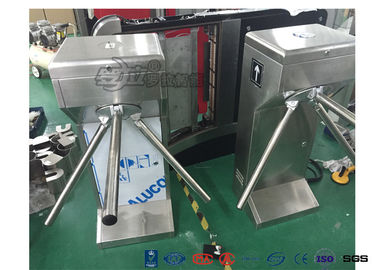

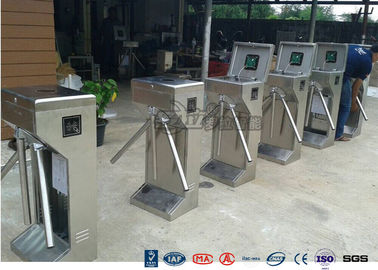

Stainless Steel Bi - Directional Turnstile Security Gates With Fingerprint Ticketing System
Applications of tripod turnstile
Keywords: turnstile, tripod turnstile, security turnstile, safety turnstile, turnstile gate, access control turnstile, access control gate, access gate, wing barrier, swing barrier, flap barrier, security wing barrier, safety wing barrier, access wing barrier, access barrier, auto gate, arms gate, arms turnstile, rotate gate, rotate turnstile gate, arm fall turnstile gate, pedestian access gate, traffic gate, waist height turnstile, half height turnstile, full height turnstile, speed gate, entrace turnstile, entrance gate
PRODUCT INFORMATION
1, Malfunction self-check and alarm reminder, ease of maitenance and use
2, Running method can be set through small buttons on the control panel
3, How arm reacts in emergency
4, How arm reacts when power on
5, Self-reset. pass right will be cancelled if people do not go through within a set time, the default time is 10s ( 0-60 adjustable)
6, Compatible for access control system, consumption system, E-ticekt system, biometric system, ESD system and so on
7, Unique positioning, self reset, one arm always in the horizontal level
8, LED lamp indicator
9, When open signal is given, arm rotate to a certain degree
10, How arm reacts when people passing
11, One direction or bi-direction flow control
12, Work directly with PC for remote control and management
13, LED counter Display
14, Bi-direction Anti reverse rotatio
Parameter of tripod turnstile
| Product Parameter | Parameter Description |
| Contains | Mechanism,Housing,Driver board,Power Supply |
| Housing Material | Stainless steel or Cold-rolled steel plate |
| Drive Mode | Motor drive, 6 sets Photoelectirc sensor |
| Communication Interface | One RS232 interface, two card reader signals(passive),one fire alarm interface |
| Access modes |
Automatic rotation Manual rotation Rotating 10 degree manually, then turn automatically |
| Status Indication | Allow passing through/ Forbidden |
| Power Consumption | <60watt |
| Protection | When external force more than setting value, the tripod will be moved |
| Humidity | 5%-90% |
| Communication Interface | One RS232 interface Two Card reader signals |
| Noise | ≤50dB |
| Lane Width | 550mm |
| Net Weight | 45KGS |
| Follwing Speed | >15people/minute |
| Service Life | Three millions continuous opening and closing of barrier panel |
| Access Modes | Rotating 10 degree manually, then arms turned automatically |
| Input | Input AC220V (10% more or less), 50HZ (4% more or less) |
| Power | LR6 (AA)battery x 4pcs |
| Maintenance Port | 2units |
| Dimension | 1700L × 1040H × 300W(mm) |
| Working Environment | 0°C-60°C |
| Working State | Single/ bi-directional |
Main Functions and Features of tripod turnstile
| Full auto tripod turnstile |
| A. Compatible for IC, ID, magentic card, barcode card and ESD and so on. |
| B. Smooth running for arm, low noise. |
| C. Arm drops down automatically when emergencies happen. arm goes up automatically when power on. |
| D. Control panel has counting function, LED display ( optional). |
| E. Control panel has memory function. |
| F. With standard input and output interface, best choice for system integrator. |
| Semi-auto tripod turnstile |
| A. Compatible for IC, ID, magentic card, barcode card and ESD and so on. |
| B. Smooth running for arm, low noise |
| C. Arm drops down automatically when emergencies happen. arm goes up by manual operation when power on. |
| D. Control panel has counting function, LED display ( optional) |
| E. Control panel has memory function |
| F. With standard input and output interface, best choice for system integrator |
| Manual operation tripod turnstile |
| A. Specific system of positioning and resetting: the unit can make any arm in the horizontal level. |
| B. Unit is pure mechanical product without electric control system, and is also simply in configuration and high in reliability. |
| C. Zero maitenance, suitable for one-direction flow control |
