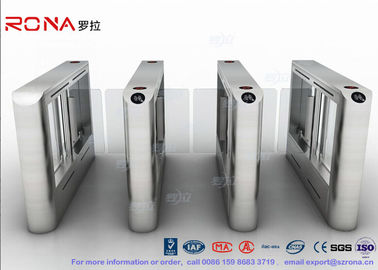

Bi - Directional Speed Pedestrian Barrier Gate Stepping Driver Motor AC220V

Bi - Directional Speed Pedestrian Barrier Gate Stepping Driver Motor AC220V

    • Bi - Directional Speed Pedestrian Barrier Gate Stepping Driver Motor AC220V
    • Bi - Directional Speed Pedestrian Barrier Gate Stepping Driver Motor AC220V
  • Bi - Directional Speed Pedestrian Barrier Gate Stepping Driver Motor AC220V

    Product Details:

    Place of Origin: China
    Brand Name: RONA
    Certification: CE / ISO9001
    Model Number: RNCF H8008-X

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Lane
    Price: negotiation
    Packaging Details: carton and wooden packing
    Delivery Time: 7-15 working days
    Payment Terms: T/T, Western Union
    Supply Ability: 2000 units Per Month
    Contact Now
    Detailed Product Description
    Materials: 304# Stainless Steel Finish: Brushed Surface/polishing Surface
    Power Voltage: AC220V±10%, 50Hz±10% Driver Motor: Stepping Motor
    Passing Speed: 30~40 Persons/min Passage Width: 600mm~900mm
    Operation Temperature:: -10℃ ~ +70℃

    Bi - Directional Speed Pedestrian Barrier Gate Stepping Driver Motor AC220V

    Introduce of sliding turnstile gates :

    sliding turnstile gates is an upgraded products from tripod turnstile and swing barrier. It has standard electrical interface which can be connected with ID cards, IC cards, magnetic cards, barcode cards etc. The integration system ensures passing in order and will never allow unauthorized persons to go in or go out.



    Functions and Features:

    1. Rapid identification technique, available to identify accurately and efficiently the magnetic card, bar code card, ID card and IC card.

    2. With normally open & normally closed working mode

    3. Real time failure self-detect and alarm indication, ensuring system safe operation and facilitating maintenance and operation.

    4. With direction indication, guiding passenger to entry and exit.

    5. Automatic counting and displaying number of passenger, facilitating observation and with a displaying total amount as high as 90,000. (Optional)

    6. Sound/light (Light is optional) alarm indication function, preventing illegal entry or irregular passing.

    7. After the system power is cut off, the plate barrier starts the standby power to withdraw the barrier, so that the passage is ensured to be smooth and to divert the flow of passenger timely.

    8. The infrared sensing technique realizes real time monitor of passage, safe protection and tail-proof.

    9. The treatment mode in emergency or in special conditions.

    10. Super strong combination capability, with the combined application of products of different passage types and series, not affecting the system performance.

    11. Strong system expending capability, available to add new product at any time.

    12. Far end control management: function to far end control of barrier mode, meeting the special requirements of the users and the fire protection.





    SPECIFICATIONS:

    Framework

    304# Stainless Steel (default), 201# or 316# Stainless Steel or paint (optional)

    Thickness of ply

    1.7mm

    Finish

    brushed surface, polishing surface

    Shell's size (L*W*H)

    1400mm*300mm*1032mm

    Swing arm material

    Tempered glass or Acrylic (optional)

    Stretching out swing length

    260mm~430mm

    The inductive card reader dimension

    equipped with the standard mounting brackets or tailor.

    Machine center

    Germany technological motor

    Power voltage

    AC220V±10%, 50Hz±10%

    Driver motor

    stepping motor

    Main-board voltage

    12V DC

    In-built Infrared

    6 pairs/passageway

    Passing speed in normally open mode

    50 persons/min

    Passing speed in normally closed mode

    40 persons/min

    Passage Width

    600mm ~900mm

    Swing arm transmission angle

    180°

    Swinging direction

    unidirectional or bi-directional

    Opening / closing time

    0.1 seconds

    The time required to running state after power on

    3 seconds

    Automatic reset time after the failure

    1 seconds

    Mean time to failure

    min. 5 000 000

    Operation temperature

    -10℃ ~ +70℃

    Relative humidity

    less than 95% not condensed

    Working Environment

    Indoor/Outdoor (with rain-tent cover)

    Input port

    relay dry contact signal; +12V level signal, pulse width >100ms, DC12V pulse signal

    Communications port

    RS232/ RS485 electric standard, communications range ≤1200m. Available to connect with external CAN BUS and Ethernet

    Bi - Directional Speed Pedestrian Barrier Gate Stepping Driver Motor AC220V





    Bi - Directional Speed Pedestrian Barrier Gate Stepping Driver Motor AC220V
