Place of Origin:
China
Brand Name:
RONA
Certification:
CE / ISO9001
Model Number:
RNCF H8008-2

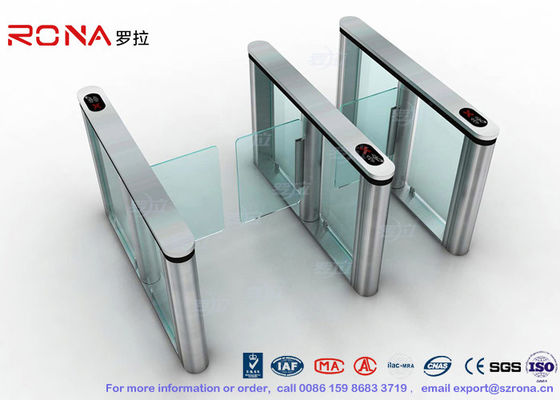

Slim Speed Gate Turnstile , Access Management Automatic Swing Gates with consumption system
TECHNICAL DETAILS:
1. Rapid identification technique, available to identify accurately and efficiently the magnetic card, bar code card, ID card and IC card.
2. With normally open & normally closed working mode
3. Real time failure self-detect and alarm indication, ensuring system safe operation and facilitating maintenance and operation.
4. With direction indication, guiding passenger to entry and exit.
5. Automatic counting and displaying number of passenger, facilitating observation and with a displaying total amount as high as 90,000. (Optional)
6. Sound/light (Light is optional) alarm indication function, preventing illegal entry or irregular passing.
7. After the system power is cut off, the plate barrier starts the standby power to withdraw the barrier, so that the passage is ensured to be smooth and to divert the flow of passenger timely.
8. The infrared sensing technique realizes real time monitor of passage, safe protection and tail-proof.
9. The treatment mode in emergency or in special conditions.
10. Super strong combination capability, with the combined application of products of different passage types and series, not affecting the system performance.
11. Strong system expending capability, available to add new product at any time.
12. Far end control management: function to far end control of barrier mode, meeting the special requirements of the users and the fire protection.
SPECIFICATIONS:
|
Framework |
304# Stainless Steel (default), 201# or 316# Stainless Steel or paint (optional) |
|
Thickness of ply |
1.7mm |
|
Finish |
brushed surface, polishing surface |
|
Shell's size (L*W*H) |
1600mm*130mm*1000mm (default) |
|
Swing arm material |
Tempered glass or Acrylic (optional) |
|
Stretching out swing length |
260mm~600mm |
|
The inductive card reader dimension |
equipped with the standard mounting brackets or tailor. |
|
Machine center |
Germany technological motor |
|
Power voltage |
AC220V±10%, 50Hz±10% |
|
Driver motor |
DC36 servo motor |
|
Main-board voltage |
12V DC |
|
In-built Infrared |
6 pairs/passageway |
|
Passing speed in normally open mode |
50 persons/min |
|
Passing speed in normally closed mode |
40 persons/min |
|
Passage Width |
600mm ~1200mm |
|
Swing arm transmission angle |
180° |
|
Swinging direction |
unidirectional or bi-directional |
|
Opening / closing time |
0.1 seconds |
|
The time required to running state after power on |
3 seconds |
|
Automatic reset time after the failure |
1 seconds |
|
Mean time to failure |
min. 5 000 000 |
|
Operation temperature |
-10℃ ~ +70℃ |
|
Relative humidity |
less than 95% not condensed |
|
Working Environment |
Indoor/Outdoor (with rain-tent cover) |
|
Input port |
relay dry contact signal; +12V level signal, pulse width >100ms, DC12V pulse signal |
|
Communications port |
RS232/ RS485 electric standard, communications range ≤1200m. Available to connect with external CAN BUS and Ethernet |
Description:
1. The anti-following function, through accurate calculation, it can prevent unauthorized personnel illegally following the authorized personnel to enter, and reports to the police.
2. Big highlight LED indicates dynamic traffic state and the direction of traffic
3. Normally open or normally closed mode flexible choice,which effectively ease the traffic pressure
4. Gate switching speed can be adjusted according to the traffic, to improve equipment efficiency
5. Read card memory or card with no memory.
6. It has functions of breakdown self-checking and alarm promptly, which is convenient for customer use and maintenance
7. We Import 1.5 mm or 304 stainless steel and A3 paint processing, independently design research , to make it's appearance beautiful and easy. the card window USES is made of toughened glass, effectively to prevent the scratching.
8. With automatic reset function. When the pedestrian won't go through within the prescribed period of time , the system will automatically cancel it, and the passage of time can be set.
9. Using TCP/IP communications protocol, real-time data uploaded and real-time data acquired,that facilitate the clients to deal with all kinds of data analysis, and ensure the system won't lose due to the amount of data too big or the unexpected result
10. It can be set by software one-way or two-way traffic or required to pass after verification, a variety of work mode combination.
Competitive Advantage:
1. For all your inquires about us or our products, we will reply you in detail within 24hours.
2. We have engineers who has the experience of big turnstile engineering projects to help you solve all theproblems of technical.
3. Delivery Support:
Year capacity in our factories reaches 60,00 sets, while we accept the 1set MOQ. With enough stock, we can arrange the delivery at once, or three days for volume orders.
Technical Support:
Having gathered a team of hi-tech talent, marketing elite and management talent, we employ 150 staff, including a doctor, a technology expert, 6 senior engineers and 9 development engineers with 6 office in China
After sale support:
Warranty time: 12 months
