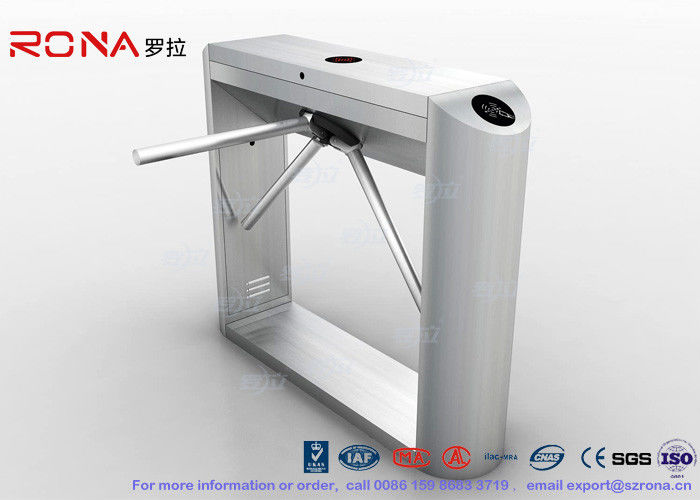

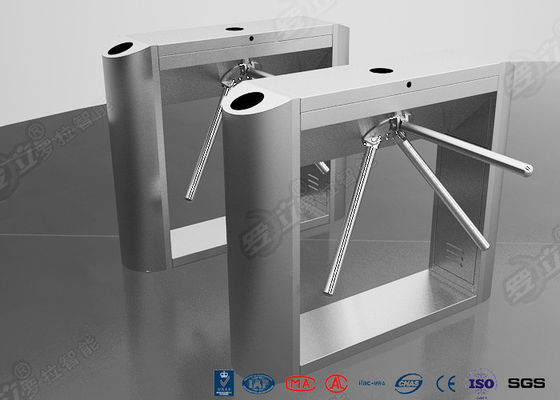

ID / IC Access Control Tripod Turnstile Gate , Standard Automatic Systems Turnstiles

ID / IC Access Control Tripod Turnstile Gate , Standard Automatic Systems Turnstiles

  • ID / IC Access Control Tripod Turnstile Gate , Standard Automatic Systems Turnstiles
  • ID / IC Access Control Tripod Turnstile Gate , Standard Automatic Systems Turnstiles
  • ID / IC Access Control Tripod Turnstile Gate , Standard Automatic Systems Turnstiles
ID / IC Access Control Tripod Turnstile Gate , Standard Automatic Systems Turnstiles
Product Details:
Place of Origin: China
Brand Name: RONA
Certification: CE / ISO9001
Model Number: RNCF938
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: carton and wooden packing
Delivery Time: 7-15 working days
Payment Terms: T/T,
Supply Ability: 2000 units Per Month
Contact Now
Detailed Product Description
Framework Material: 304# Stainless Steel Dimension(L*W*H): 1200mm*280mm*990mm
Arm Length: 500mm Passage Width: 550mm
MTBF: 5 Million Operation Temperature: -10℃ ~ 70℃
Operation Environment: Indoor/Outdoor Communication Port: RS232 / RS485
High Light:

turnstile security gate

,

tripod access system

ID / IC Access Control Tripod Turnstile Gate , Standard Automatic Systems Turnstiles




PRODUCT DESCRIPTIONS:
The tripod turnstile controls pedestrian access between public and secure areas. The tripod turnstile system is provided with a standard electric interface and can easily integrates the common 3rd party equipment with read/write facilities, such as access control system, bar-code scanner, ID/IC card reader, time & attendance system, coin collector, card collector, biometric systems (fingerprint & face recognition), consumption system, ESD system and fare collection system, etc.



TECHNICAL SPECIFICATIONS:

Framework: 304# Stainless Steel(default), 316# Stainless Steel or Paint (optional)
Thickness of ply: 1.3mm (default)
Finish: ① stainless steel surface: brushed surface, polishing surface (default) or anti-fingerprint surface (optional); ② painted surface: any color surface or anti-fingerprint surface (optional)
Dimension(L*W*H): 1200mm*280mm*990mm (default)
Arm material: Steel
Arm length: 500mm
Arm diameter: 38mm
The maximum tolerance of the pole: 80Kg
Working driving force of the pole: 3Kg
Read facilities mounting: may be mounted on the surface of turnstile, or flush mounted, or rack mounting. There is an output to interlock the Read/write facility.
Power voltage: AC220V±10%, 50Hz±10%
Work movement: Germany technology electromagnetic valve
Semi-automatic type: In-built hydraulic shock absorber
Main-board voltage: 12V DC
Passage Width: 550mm
Passing speed in normally open mode: 30~40 persons/min
Passing speed in normally closed mode: 25~30 persons/min
Time of opening / closing: 0.2 seconds
The time required to running state after power on: 5 seconds
MTBF: 550mm
Operation Temperature: -10℃ ~ 70℃
Relative humidity: ≤95% not condensed
Operation environment: Indoor/Outdoor
Input port: relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal
Communications port: RS232/RS485 electric standard, communications range: ≤1200m. Available to connect with external CAN BUS and Ethernet
Certification: CE
Warranty: 12 months
Net weight: 58KGS



APPLICATIONS:
Typical areas of application are: Employee and Visitor Access Control, Time & Attendance Integration, Loss Prevention, Government Facilities, Corporate Lobbies, Buildings, Banks, Hotel, Super market, Park, Building Sites, Museums, Retail outlets, Railway Terminals and Airports etc.

STANDARD FEATURES & FUNCTIONS:

TRIPOD TURNSTILE STANDARD FUNCTION SPECIFICATIONS RNCF938
The turnstile system can easily integrates with the 3rd party equipment, such as Biometric reader, consumption system, ESD system and access control system etc.
Operation model: Both directions can be set as controlled mode or free mode, two or one direction can be controlled by switch- button or access controller.
Multi-alarm function: when the arms are pushed by force illegally, alarm will be triggered automatically and the arms will be set locked (the duration of the alarm and lock is adjustable by changing parameter of main control board).
Reset automatically function: Go signal will be cancelled if passage through is not completed within pre- set time. The standard default is 10 seconds (time adjustable by by changing parameter of main control board).
Automatic-rotation function: once an open signal is given, the arms will rotate automatically. ×
Auto-drop-arm function: the arm can drop down automatically (default), or free passing when the power is off.
Auto-lift-arm function: when the power is on again, the arm can also lift automatically ×
Emergency-escape function: the arm will drop down automatically by pressing the emergency button which can be remote-controlled whether the power is on or not.
Anti backup function: to prevent reverse rotation once the mechanism has move 60 degree from home
Optional indication of Mulit LED
Optional indication of inside LED counter or outside LED counter
With interface of switch of relay, compatible with all the access controller
Equipped with free control software for man-machine interface & control command SDK.
Through the management computer to realize remote control and management.



DIMESNION SPECIFICATIONS:
ID / IC Access Control Tripod Turnstile Gate , Standard Automatic Systems Turnstiles 0


EXHIBITION:
ID / IC Access Control Tripod Turnstile Gate , Standard Automatic Systems Turnstiles 1
